RG174D alternative, 50 Ohm, 6 GHz, 85°C, ø3.1 mm, PVC Mantel

Produktnummer 22510112

Identifier G_02232_D

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Custom version of RG_174
Geeignet für den Einsatz in Anwendungen bis 6 GHz
3.1 mm Durchmesser

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser	Cable jacket print
Innenleiter	Copper	Litze-07	0.49 mm - 0.1 mm
Dielektrikum	PE (Polyethylen)		1.5 mm
Äusserer Leiter	Copper	Geflecht, 96%	2 mm
Äusserer Leiter	Copper	Geflecht, 93%	2.5 mm
Mantel	PVC II (migrationsarm)	RAL 9005 - bk	3.1 mm +/- 0.1 mm

Elektrische Daten

Impedanz	50 Ω +/-2Ω
Betriebsfrequenz	≤ 6 GHz
Capacitance	101 pF/m
Velocity of signal propagation	66 %
Signal delay	5.03 ns/m
Wirksamkeit des Screenings	78 dB at frequency 0.001 GHz ... 1GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	121.6 Ω/km
Inner conductor DC resistance at 300K	13.6 Ω/km
Widerstand des Aussenleiters	13.6 Ω/km
Operating Voltage (at sea level)	≤ 1.5 kVrms
Prüfspannung (50 Hz/1 min)	≤ 3 kVrms
Noise level	10 mV

Mechanische Daten

Umweltdaten

Materialkonformität ROHS

Materialkonformität REACH

RG174D alternative, 50 Ohm, 6 GHz, 85°C, ø3.1 mm, PVC Mantel

Verfügbarkeiten

Produkt erhältlich bei:

HUBER+SUHNER

Lieferfrist 8 Wochen (ab Werk)

Distributor

FARNELL mit Lieferfrist

RS COMP. mit Lieferfrist

RICHARDSON RFPD mit Lieferfrist

MOUSER 568 Meter

DIGIKEY 171 Meter

MASTER ELECTR. 115 Meter

Related products

Geeignete Verbinder

86_CT-0-2-3/111_N

86_CT-0-2-3/111_N

23013228

86_CT-0-2-3/111_NE

Einzelverpackung

Cable terminators for flexible cables

Cable terminators for flexible cables

23013161

83_CT-0-2-2/-11_NE

Einzelverpackung

COAXIAL CONNECTOR, 1.0/2.3 , 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, 1.0/2.3 , 50 Ohm, Straight cable jack (female)

22648560

21_1023-C50-2-2/111_NE

Einzelverpackung

COAXIAL CONNECTOR, 1.0/2.3 , 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, 1.0/2.3 , 50 Ohm, Straight cable jack (female)

22648568

21_1023-C50-2-2/113_NE

Einzelverpackung

COAXIAL CONNECTOR, 1.0/2.3 C50, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, 1.0/2.3 C50, 50 Ohm, Right angle cable plug (male)

22650726

16_1023-C50-2-3/111_NE

Einzelverpackung

COAXIAL CONNECTOR, 1.0/2.3 C50, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 1.0/2.3 C50, 50 Ohm, Straight cable plug (male)

22648559

11_1023-C50-2-2/111_NE

Einzelverpackung

COAXIAL CONNECTOR, 1.0/2.3 C50, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 1.0/2.3 C50, 50 Ohm, Straight cable plug (male)

22648563

11_1023-C50-2-2/113_NE

Einzelverpackung

COAXIAL CONNECTOR, 1.0/2.3 C50, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 1.0/2.3 C50, 50 Ohm, Straight cable plug (male)

22649631

11_1023-C50-2-2/111_NH

Großverpackung

COAXIAL CONNECTOR, 1.0/2.3 C50, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 1.0/2.3 C50, 50 Ohm, Straight cable plug (male)

84148590

11_1023-C50-2-2/111_NE-1

Einzelverpackung

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

22650508

25_BMA-50-2-5/119_NE

Einzelverpackung

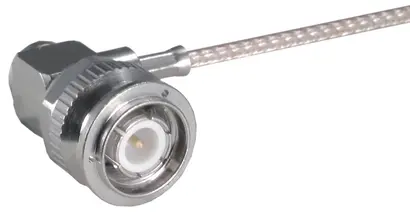

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540169

16_BNC-50-2-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22650221

16_BNC-50-2-5/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84057657

16_BNC-50-2-11/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22641783

24_BNC-50-2-14/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22652154

24_BNC-50-2-14/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

84057872

24_BNC-50-2-46/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

84057873

24_BNC-50-2-46/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

85014360

24_BNC-50-2-49/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22641779

21_BNC-50-2-10/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540031

11_BNC-50-2-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22641683

11_BNC-50-2-14/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22649839

11_BNC-50-2-14/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84058003

11_BNC-50-2-34/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84058004

11_BNC-50-2-34/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

22641794

25_BNC-50-2-15/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

22641795

25_BNC-50-2-16/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

22650210

25_BNC-50-2-15/133_NH

Großverpackung

COAXIAL CONNECTOR, MBX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MBX, 50 Ohm, Right angle cable plug (male)

84104696

16_MBX-50-2-1/113_NE

Einzelverpackung

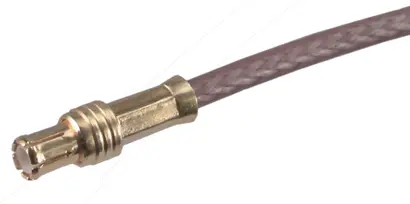

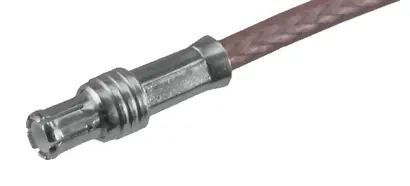

COAXIAL CONNECTOR, MBX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MBX, 50 Ohm, Straight cable plug (male)

84093696

11_MBX-50-2-1/113_NH

Großverpackung

COAXIAL CONNECTOR, MBX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MBX, 50 Ohm, Straight cable plug (male)

84104694

11_MBX-50-2-1/113_NE

Einzelverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

22650803

16_MCX-50-2-11/133_NH

Großverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

22660003

16_MCX-50-2-11/133_NE

Einzelverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

23000457

16_MCX-50-2-11/111_NH

Großverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

23015358

16_MCX-50-2-11/111_NH-1

Großverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male)

84142593

16_MCX-50-2-11/133_NH-1

Großverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight bulkhead cable jack (female)

23005300

24_MCX-50-2-6/111_NH

Großverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable jack (female)

22658278

21_MCX-50-2-12/133_NH

Großverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable jack (female)

23032052

21_MCX-50-2-12/111_NE

Einzelverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

23000440

11_MCX-50-2-15/111_NH

Großverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

23000566

11_MCX-50-2-15/133_NH

Großverpackung

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

84018641

11_MCX-50-2-15/111_NE

Einzelverpackung

COAXIAL CONNECTOR, MMBX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MMBX, 50 Ohm, Right angle cable plug (male)

23001746

16_MMBX-50-2-2/111_NE

Einzelverpackung

COAXIAL CONNECTOR, MMBX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MMBX, 50 Ohm, Right angle cable plug (male)

84028931

16_MMBX-50-2-2/111_NH

Großverpackung

COAXIAL CONNECTOR, MMBX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MMBX, 50 Ohm, Straight cable plug (male)

23001744

11_MMBX-50-2-2/111_NE

Einzelverpackung

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

22649374

16_MMCX-50-2-2/111_OE

Einzelverpackung

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, MMCX, 50 Ohm, Right angle cable plug (male)

22651401

16_MMCX-50-2-2/111_OH

Großverpackung

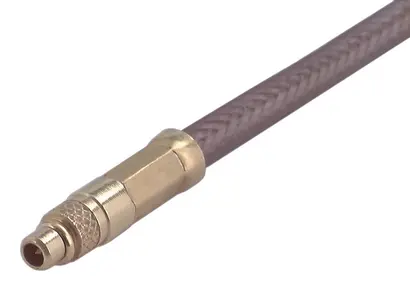

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, MMCX, 50 Ohm, Straight cable plug (male)

22649901

11_MMCX-50-2-4/111_OE

Einzelverpackung

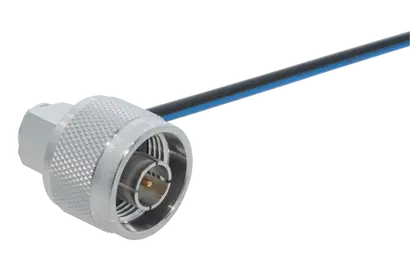

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22649420

16_N-50-2-6/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22649404

24_N-50-2-7/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22660124

24_N-50-2-117/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22660266

24_N-50-2-117/133_NY

Tray Verpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85007620

24_N-50-2-41/133_NY

Tray Verpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85243896

24_N-50-2-118/133_NY

Tray Verpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85251803

24_N-50-2-118/133_NE

Einzelverpackung

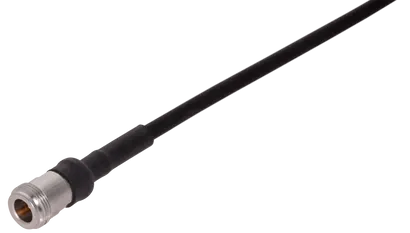

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22646310

21_N-50-2-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

85025958

21_N-50-2-6/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22643329

11_N-50-2-3/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22643807

11_N-50-2-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

23014128

11_N-50-2-16/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85071313

11_N-50-2-22/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22651054

25_N-50-2-10/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

23038346

25_N-50-2-20/19-_NY

Tray Verpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

84027366

25_N-50-2-10/133_NH

Großverpackung

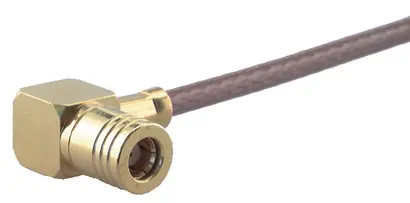

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Right angle cable plug (male)

22640015

16_QLA-01-2-4/122_NE

Einzelverpackung

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Straight cable plug (male)

22544041

11_QLA-01-2-9/122_NE-1

Einzelverpackung

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Straight cable plug (male)

22648228

11_QLA-01-2-9/122_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23017644

16_QMA-50-2-1/133_NH

-

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

23017829

24_QMA-50-2-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

23017830

24_QMA-50-2-2/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017700

11_QMA-50-2-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017701

11_QMA-50-2-1/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84022911

16_QN-50-2-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

84016879

24_QN-50-2-3/133_NY

Tray Verpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

84021132

11_QN-50-2-2/133_NE

Einzelverpackung

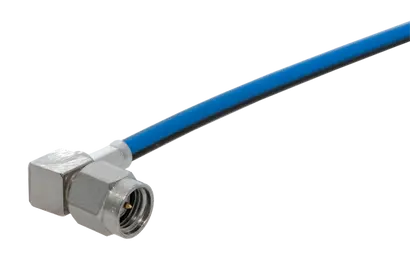

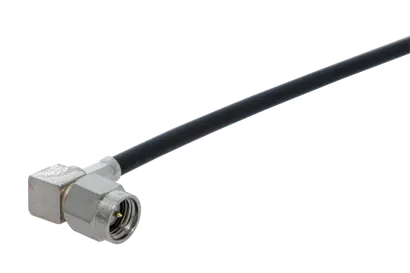

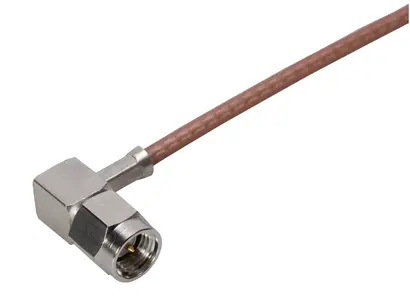

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22642662

16_SMA-50-2-56/199_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651035

16_SMA-50-2-141/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651457

16_SMA-50-2-106/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651458

16_SMA-50-2-106/111_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651997

16_SMA-50-2-141/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22658888

16_SMA-50-2-56/199_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

23015403

16_SMA-50-2-107/111_NH-1

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84012395

16_SMA-50-2-143/139_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84117809

16_SMA-50-2-112/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84130709

16_SMA-50-2-112/133_NE

Einzelverpackung

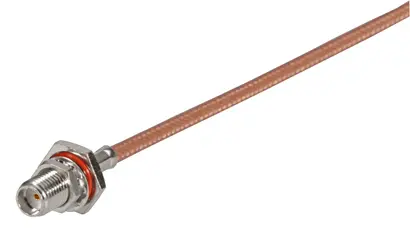

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22644245

24_SMA-50-2-45/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22644382

24_SMA-50-2-43/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22651719

24_SMA-50-2-13/111_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22651767

24_SMA-50-2-13/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22652352

24_SMA-50-2-45/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

85013993

24_SMA-50-2-37/133_NE

Einzelverpackung

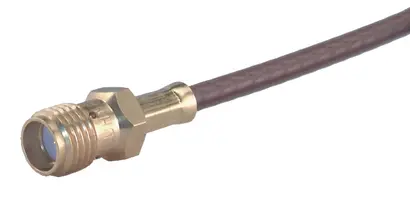

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22640078

21_SMA-50-2-6/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22651818

21_SMA-50-2-6/111_NH

Großverpackung

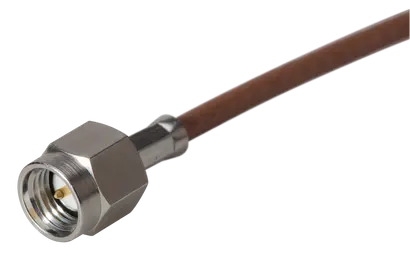

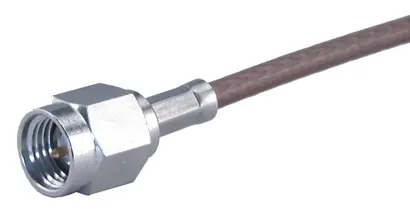

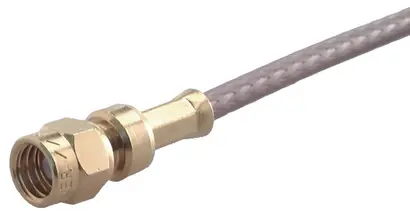

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22640043

11_SMA-50-2-6/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22641376

11_SMA-50-2-56/199_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22650740

11_SMA-50-2-6/111_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22651486

11_SMA-50-2-56/199_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22652160

11_SMA-50-2-41/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84115820

11_SMA-50-2-112/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84130700

11_SMA-50-2-112/133_NE

Einzelverpackung

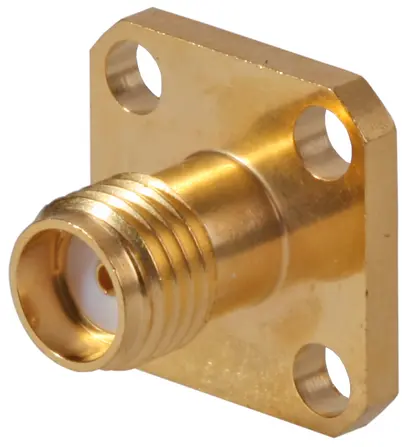

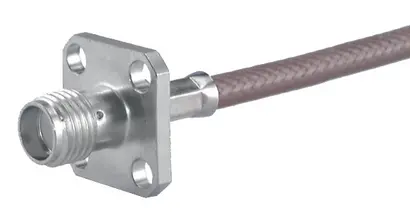

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

22640113

25_SMA-50-2-6/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

22642246

25_SMA-50-2-46/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

84117824

11_SMA-R50-2-113/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

84130701

11_SMA-R50-2-113/133_NE

Einzelverpackung

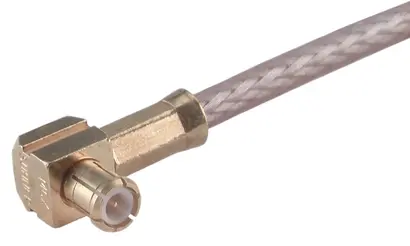

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

22648058

16_SMB-50-2-51/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

22650182

16_SMB-50-2-51/133_NH

Großverpackung

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

22658985

16_SMB-50-2-51/111_NH

Großverpackung

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

22659120

16_SMB-50-2-111/111_NH

Großverpackung

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Right angle cable plug (male)

22660335

16_SMB-50-2-41/111_NH

Großverpackung

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight bulkhead cable jack (female)

22659130

24_SMB-50-2-111/111_NH

Großverpackung

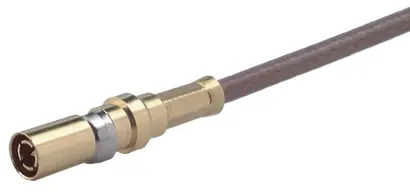

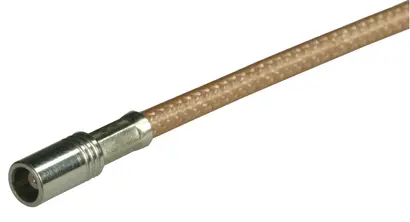

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable jack (female)

22642407

21_SMB-50-2-11/111_NE

Einzelverpackung

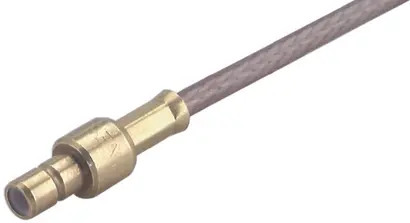

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

22648052

11_SMB-50-2-41/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

22650536

11_SMB-50-2-41/111_NH

Großverpackung

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

22650645

11_SMB-50-2-11/111_NH

Großverpackung

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

22543366

16_SMC-50-2-11/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMC, 50 Ohm, Right angle cable plug (male)

22658856

16_SMC-50-2-11/133_NH

Großverpackung

COAXIAL CONNECTOR, SMC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMC, 50 Ohm, Straight cable plug (male)

22640251

11_SMC-50-2-11/111_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

23001716

16_TNC-50-2-7/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

23001720

24_TNC-50-2-29/133_NH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

23008936

24_TNC-50-2-34/133_NH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

23014010

24_TNC-50-2-36/133_NH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22658179

11_TNC-50-2-113/133_UH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

23001711

11_TNC-50-2-113/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

85125923

11_TNC-50-2-113/133_NH

Missing product short name

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight bulkhead cable jack (female)

84087350

24_TNC-R50-2-46/133_NH

Großverpackung

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

85020204

11_TNC-R50-2-29/133_NH

Großverpackung

Taper sleeve 2.9 - 3.3 mm

Taper sleeve 2.9 - 3.3 mm

22544457

78_Z-0-2-3

-

Taper sleeve 2.9 - 3.3 mm

Taper sleeve 2.9 - 3.3 mm

22544458

78_Z-1-2-3

-

Taper sleeve 2.9 - 3.3 mm

Taper sleeve 2.9 - 3.3 mm

22544459

78_Z-2-2-3

-

Taper sleeve 2.9 - 3.3 mm

Taper sleeve 2.9 - 3.3 mm

22544460

78_Z-3-2-3

-

Taper sleeve 2.9 - 3.3 mm

Taper sleeve 2.9 - 3.3 mm

22544461

78_Z-4-2-3

-

Taper sleeve 2.9 - 3.3 mm

Taper sleeve 2.9 - 3.3 mm

22544462

78_Z-5-2-3

-

Taper sleeve 2.9 - 3.3 mm

Taper sleeve 2.9 - 3.3 mm

22544463

78_Z-6-2-3

-

Taper sleeve 2.9 - 3.3 mm

Taper sleeve 2.9 - 3.3 mm

22544464

78_Z-7-2-3

-

Taper sleeve 2.9 - 3.3 mm

Taper sleeve 2.9 - 3.3 mm

22544465

78_Z-8-2-3

-

Taper sleeve 2.9 - 3.3 mm

Taper sleeve 2.9 - 3.3 mm

22544466

78_Z-9-2-3

-
