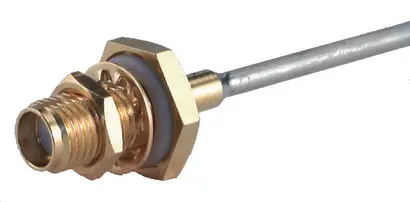

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

Produktnummer 22544532

Identifier 24_SMA-50-2-15/111_NE

Variation Einzelverpackung

Wählen Sie eine Variante aus

Einzelverpackung

Hauptmerkmale

Wesentliche Eigenschaften

Ausgezeichnete Rückflussdämpfung
Kombinierbar mit PC3.5 und SK
Anwendbar bei Frequenzen bis zu 18 GHz

Spezifikationen

Produkt-Konfiguration

Material Daten

Elektrische Daten

Elektrische Daten (frequenzbezogen)

Mechanische Daten

Umweltdaten

Materialkonformität ROHS

Materialkonformität REACH

Passende Kabel

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

Related products

Suitable cables

Flexible (RG405) 50 Ohm, 40 GHz, 165°C, ø2.65 mm, FEP Mantel

22511965

MULTIFLEX_86

-

Flexible (RG405) 50 Ohm, 67 GHz, 165°C, ø2.65 mm, FEP Mantel

84129072

MULTIFLEX_86_HE

-

Handformbar (RG403) 50Ohm, 6GHz, 165°C, ø2.5mm, FEP Mantel

84016948

SUCOFORM_86-TC_FEP

-

Handformbar (RG403) 50Ohm, 40GHz, 85°C, ø3,2mm LSFH Mantel

22512147

SUCOFORM_86_LSFH

-

Handformbar (RG403) 50Ohm, 40GHz, 85°C, ø3,2mm, PE Mantel

22511631

SUCOFORM_86_PE

-

Handformbar (RG403) 50Ohm, 40GHz, 165°C, ø2.1mm, ohne Mantel

22511613

SUCOFORM_86

-

Handformbar (RG403) 50Ohm, 40GHz, 165°C, ø2.1mm, ohne Mantel

84084633

SUCOFORM_86_CU

-

Handformbar (RG403) 50Ohm, 40GHz, 165°C, ø2.5mm FEP Mantel

22511942

SUCOFORM_86_FEP

-

Missing product name

22810182

Missing product short name

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Aluminium/Tin plated, M17

22810167

SR_86_AL_TP_M17_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Aluminium/Tin plated, M17

22820167

SR_86_AL_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Aluminium/Tin plated, M17

22830167

SR_86_AL_TP_M17_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper, M17

22810173

SR_86_M17_Coil

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper, M17

22820173

SR_86_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper, M17

22830173

SR_86_M17_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Silver plated

22810180

SR_86_CU_SP_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Silver plated

22820180

SR_86_CU_SP_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Silver plated

22830180

SR_86_CU_SP_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22810175

SR_86_TP_M17_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22820175

SR_86_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22820182

SR_86_CU_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22830175

SR_86_TP_M17_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22830182

SR_86_CU_TP_M17_3M

3 meter

Product code	24_SMA-50-2-15/111_N
Typ der Schnittstelle	SMA
Nur als Assembly erhältlich	Nein
Kabelgruppe	Y3 Y16 Y11

Typ der Schnittstelle	SMA
Geschlecht	jack
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Innenleiter	Kupfer-Beryllium-Legierung / Vergoldung (vernickelt)
Äusserer Leiter	Kupfer-Beryllium-Legierung / Vergoldung (vernickelt)
Isolator	PFA / PTFE
Dichtung	VMQ (Silikongummi)
Befestigungsschraube	Messing / Vergoldung (vernickelt)
Unterlagsscheibe	Bronze / Vergoldung (vernickelt)

Impedanz	50 Ω
Betriebsfrequenz Schnittstelle	18 GHz

Gewicht	0.0036 kg
Steckzyklen	500
Kabeleinführung Zentralkontakt	gelötet
Kabeleinführung Aussenkontakt	gelötet

Richtlinien	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Ausnahmen	6c

Verordnung	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead
