Low-loss, 50 Ohm, 8 GHz, 85°C, ø10.25 mm, LSFH Mantel

Produktnummer 84132035

Identifier SPUMA_400-FR-01

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Halogenfreies Kabel mit Standardabmessungen
Geringe Rauchentwicklung
Ozonbeständigkeit
CPR qualifiziert
Railway qualified

Nutzungsmöglichkeiten

Eisenbahn

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser
Innenleiter	Aluminium / Kupfer	Kabel	2.74 mm
Dielektrikum	SPE (geschäumtes Polyethylen)		7.24 mm
Äusserer Leiter	Aluminium / PES	Längsfolie, 100%	7.4 mm
Äusserer Leiter	Kupfer, verzinnt	Geflecht, 78%	8.15 mm
Mantel	LSFH (modifiziertes Polyethylen)	RAL 9005 - bk	10.25 mm +/- 0.1 mm

Elektrische Daten

Mechanische Daten

Umweltdaten

Materialkonformität ROHS

Materialkonformität REACH

Low-loss, 50 Ohm, 8 GHz, 85°C, ø10.25 mm, LSFH Mantel

Related products

Suitable connectors

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Straight cable plug (male)

85141072

11_4310-50-7-X2/033_-E

Einzelverpackung

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

23025134

16_716-50-7-15/033_-E

Einzelverpackung

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

85010777

11_716-50-7-31/033_-Y

Tray Verpackung

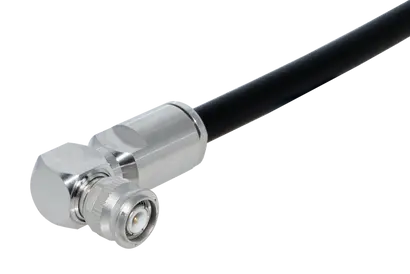

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

85071432

16_BNC-50-7-9/133_NE

Einzelverpackung

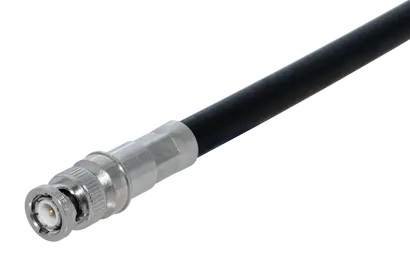

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

85071256

11_BNC-50-7-13/133_NE

Einzelverpackung

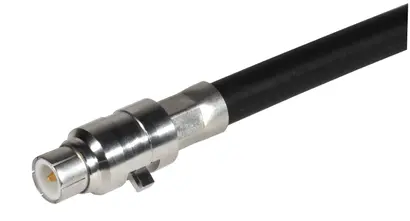

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

84139568

11_C-U50-7-24/133_NE

-

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84076005

16_N-50-7-77/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84078884

16_N-50-7-77/133_NE

-

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84082125

16_N-50-7-50/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85014128

16_N-50-7-53/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85172143

16_N-50-7-55/199_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

84000974

24_N-50-7-31/133_NY

Tray Verpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85124004

24_N-50-7-34/133_NY

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85182486

24_N-50-7-36/199_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

84119763

21_N-50-7-32/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22660143

11_N-50-7-69/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

23041525

11_N-50-7-74/133_UE-1

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84081597

11_N-50-7-82/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85092396

11_N-50-7-69/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85168370

11_N-50-7-90/199_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84022186

16_QN-50-7-5/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84078879

16_QN-50-7-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

84039869

24_QN-50-7-5/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

84022686

11_QN-50-7-8/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

84078850

11_QN-50-7-8/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

85018517

16_SMA-50-7-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

85018509

11_SMA-50-7-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

85167341

11_SMA-50-7-2/199_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

84082741

16_TNC-50-7-12/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

85119365

16_TNC-50-7-23/199_NH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

85018142

24_TNC-50-7-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

85182001

24_TNC-50-7-6/199_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84128527

21_TNC-50-7-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

84077868

11_TNC-50-7-18/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

85016678

11_TNC-50-7-19/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

85117836

11_TNC-50-7-23/199_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight bulkhead cable jack (female)

84032531

24_TNC-R50-7-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

84031806

11_TNC-R50-7-13/133_NE

Einzelverpackung

Taper sleeve 10.1 - 15.5 mm

22641162

78_Z-0-7-1

-

Product code	SPUMA_400-FR-01
Kabelfamilie	Spuma: Flexible, verlustarme RF-Kabel
Nur als Assembly erhältlich	Nein
Kabelgruppe	U30

Impedanz	50 Ω +/-2Ω
Betriebsfrequenz	≤ 8 GHz
Capacitance	78 pF/m
Inductance	0.2 µH/m
Velocity of signal propagation	85 %
Signal delay	3.9 ns/m
Wirksamkeit des Screenings	90 dB at frequency 6GHz
Insulation resistance	1000000 MΩ*m
Inner conductor resistance	4.75 Ω/km
Widerstand des Aussenleiters	6.06 Ω/km
Operating Voltage (at sea level)	≤ 1.6 kVrms
Prüfspannung (50 Hz/1 min)	≤ 3 kVrms

Weight	approx. 115 g/m
Biegeradius statisch	≥ 25 mm
Wiederholter Biegeradius	100 mm

Betriebstemperatur	-40 °C ... 85 °C
Einbautemperatur	-20 °C ... 60 °C
CPR Klasse	Dca
Flammenausbreitungsstandard	UL 1581 § 1100 UL 1581 § 1080 (VW-1) EN 60332-1-2 IEC 60332-3-25
Brandeigenschaften	frei von Halogenen, acc. standard IEC 60754
Rauch-Test	EN 61034-2
Cold bend test	MIL-C-17 § 4.8.19
UV-Beständigkeit	ISO 4892-2A

Richtlinien	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Verordnung	REACH 1907/2006 Article 33 SVHC
Rating	Free of SVHC >0,1%
