Low-loss, 50 Ohm, 18 GHz, 85°C, ø5.3 mm, PUR Mantel

Produktnummer 22511855

Identifier S_04212_B

Variation: -

Hauptmerkmale

Wesentliche Eigenschaften

Alternative to standard SPUMA cables
Low loss
Geeignet für Anwendungen bis zu 18 GHz

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser
Innenleiter	Kupfer, versilbert	Kabel	1.4 mm - 0.2 mm
Dielektrikum	SPE (geschäumtes Polyethylen)		3.8 mm
Äusserer Leiter	Aluminium / PES	Längsfolie, 100%	4 mm
Äusserer Leiter	Kupfer, verzinnt	Geflecht, 87%	4.5 mm
Mantel	PUR (Polyurethan)	RAL 9005 - bk	5.3 mm +/- 0.2 mm

Elektrische Daten

Mechanische Daten

Umweltdaten

Related products

Suitable connectors

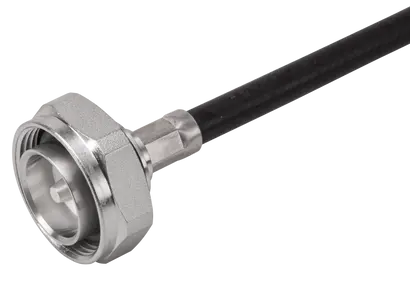

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

84098543

11_716-50-4-5/033_-Y

Tray Verpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

85071464

16_BNC-50-4-16/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22649863

11_BNC-50-4-53/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22660156

11_BNC-50-4-28/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84068115

11_BNC-50-4-29/133_NE

Einzelverpackung

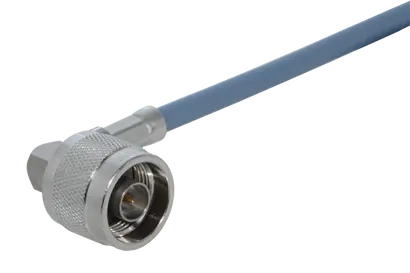

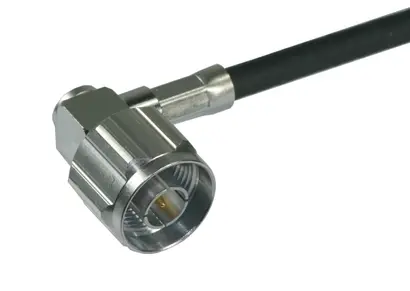

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22645021

16_N-50-4-53/199_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651019

16_N-50-4-114/133_UH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84023979

16_N-50-4-115/133_UH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22644946

24_N-50-4-53/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22651789

24_N-50-4-17/133_UE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85018527

24_N-50-4-10/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22658836

21_N-50-4-76/133_UH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

84110983

21_N-50-4-6/133_NH

Großverpackung

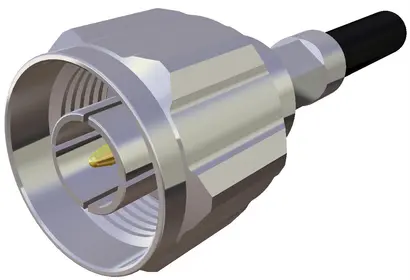

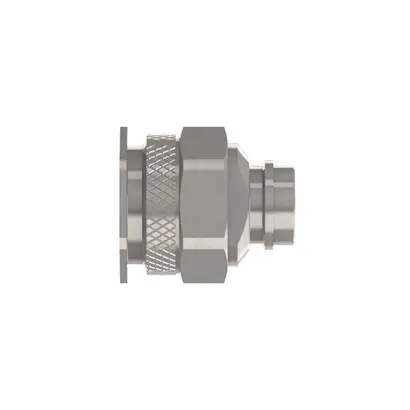

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22645935

11_N-50-4-55/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22651679

11_N-50-4-160/133_UH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22652069

11_N-50-4-63/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22658708

11_N-50-4-63/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22660149

11_N-50-4-9/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84026255

11_N-50-4-10/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84110888

11_N-50-4-11/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

23003442

25_N-50-4-6/133_UH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23041666

16_QMA-50-4-2/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84023140

16_QMA-W50-4-5/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84075864

16_QMA-W50-4-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

84013207

24_QMA-50-4-1/133_NH

Großverpackung

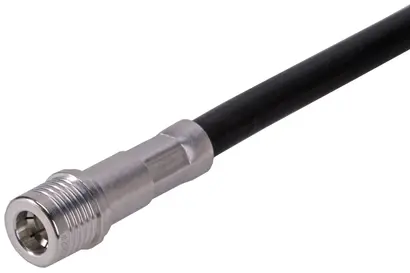

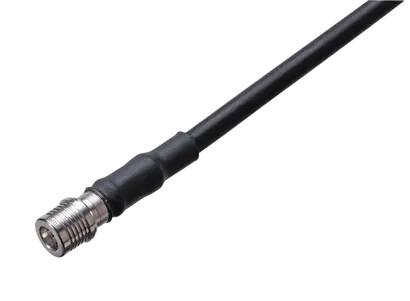

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable jack (female)

84096247

21_QMA-50-4-2/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84000234

11_QMA-50-4-2/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84023153

11_QMA-W50-4-3/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84075865

11_QMA-W50-4-3/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

85123642

11_QMA-50-4-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84038217

16_QN-50-4-3/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

23040776

24_QN-50-4-1/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23040813

11_QN-50-4-1/133_NH

Großverpackung

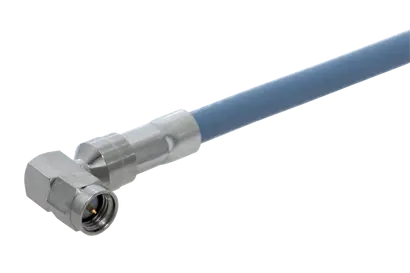

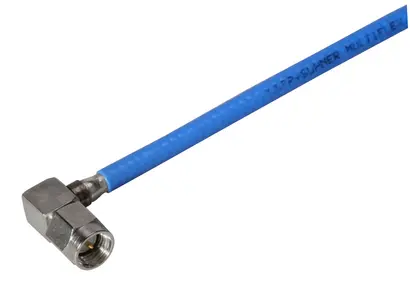

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22644654

16_SMA-50-4-55/199_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

23012056

16_SMA-50-4-160/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84117813

16_SMA-50-4-50/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84130714

16_SMA-50-4-50/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22644409

21_SMA-50-4-52/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22644342

11_SMA-50-4-53/139_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

23012055

11_SMA-50-4-61/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

23015123

11_SMA-50-4-63/139_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84112519

11_SMA-50-4-50/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84130705

11_SMA-50-4-50/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

84027004

11_SMA-R50-4-97/133_NH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

84082686

16_TNC-50-4-21/033_-I

Missing product short name

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

22644938

24_TNC-50-4-52/133_NE

Einzelverpackung

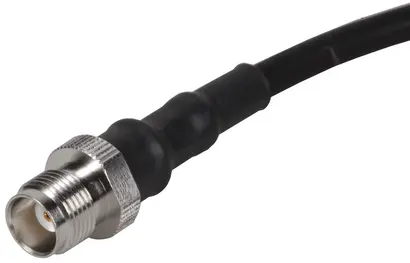

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84119563

21_TNC-50-4-16/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

85159704

21_TNC-50-4-18/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

22644434

11_TNC-50-4-52/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

22658177

11_TNC-50-4-115/133_UH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

84130594

11_TNC-50-4-61/133_NH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

85071433

11_TNC-50-4-78/133_NE

Einzelverpackung

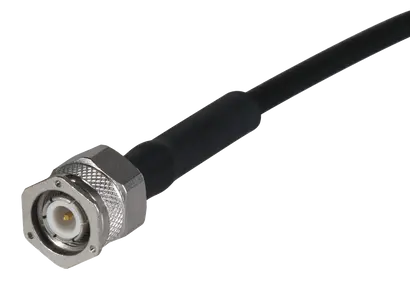

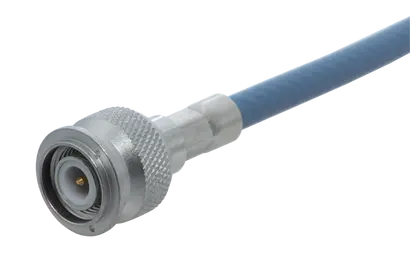

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

84031534

11_TNC-R50-4-76/133_NE

Einzelverpackung

Product code	S_04212_B
Kabelfamilie	S: Verlustarme RF-Kabel mit geschäumtem PE-Dielektrikum
Nur als Assembly erhältlich	Nein
Kabelgruppe	X9

Impedanz	50 Ω +/-2Ω
Betriebsfrequenz	≤ 18 GHz
Capacitance	82 pF/m
Velocity of signal propagation	82 %
Signal delay	4.1 ns/m
Wirksamkeit des Screenings	90 dB at frequency 0.1 GHz ... 18GHz
Insulation resistance	100000000 MΩ*m
Operating Voltage (at sea level)	≤ 0.5 kVrms
Prüfspannung (50 Hz/1 min)	≤ 1 kVrms

Weight	approx. 41 g/m
Biegeradius statisch	≥ 25 mm
Wiederholter Biegeradius	90 mm

Betriebstemperatur	-40 °C ... 85 °C
Einbautemperatur	-20 °C ... 60 °C
Brandeigenschaften	frei von Halogenen
