The preferred connectivity solution supplier for diagnostic imaging equioment manufacturers

With the three technologies of radio frequency, low frequency and fiber optics under one roof, HUBER+SUHNER can supply bespoke solutions in addition to a wide range of standard products. Decades of experience working with leading manufacturers of diagnostic imaging equipment have resulted in the ongoing development of products and materials. This means that the portfolio includes many products which have been enhanced for these specific requirements.

Products

Product image
Hand formable (RG402) 50Ohm, 33GHz, 165°C, ø3.58mm no jacket 22511635 Sucoform hand-formable microwave cables have a tin-soaked copper braid for the outer conductor, giving them outstanding hand-formability and a distinct mechanical advanatage over semi-rigid cables
Product image

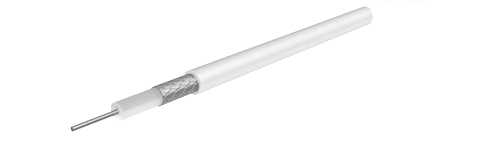

Hand formable, 50 Ohm, 6 GHz, 165°C, ø6.2 mm, FEP jacket 85071854 Sucoform hand-formable microwave cables have a tin-soaked copper braid for the outer conductor, giving them outstanding hand-formability and a distinct mechanical advanatage over semi-rigid cables
Product image
Hand formable (RG401) 50Ohm, 18GHz, 165°C, ø6.3mm, no jacket 84007938 Sucoform hand-formable microwave cables have a tin-soaked copper braid for the outer conductor, giving them outstanding hand-formability and a distinct mechanical advanatage over semi-rigid cables
Product image

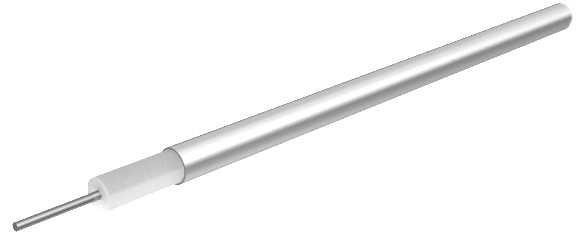

Semi-rigid, 50 Ohm, 148 GHz, 100°C, ø0.86 mm, Copper 22820400 The Semi-rigid cable is unique in that it is easily bent to the desired finished shape and still maintains its set after bending, making it ideal for use with automated bending equipment and hand forming tools.
Product image
Semi-rigid, 50 Ohm, 107 GHz, 100°C, ø1.19 mm, Copper 22820501 The Semi-rigid cable is unique in that it is easily bent to the desired finished shape and still maintains its set after bending, making it ideal for use with automated bending equipment and hand forming tools.
Product image
COAXIAL CONNECTOR, MCX, 50 Ohm, Straight PCB jack (female) 23024098 MCX, a snap-on connector for coax-to-PCB connection up to 6GHz. MCX is a easy to connect and offers an excellent blend of size, weight, durability and performance.
Product image
COAXIAL CONNECTOR, MCX, 50 Ohm, Right angle cable plug (male) 23024088 MCX, a snap-on connector for coax-to-PCB connection up to 6GHz. MCX is a easy to connect and offers an excellent blend of size, weight, durability and performance.
Product image
COAXIAL FIXED ATTENUATOR, 50 Ohm, 20 dB, N 22550186 Attenuators are used to reduce the power of a signal without causing distortion of its waveform. They are used in many test and measurement and communication applications.
