RG393, 50 Ohm, 6 GHz, 200°C, ø9.9 mm, FEP jacket

Product number 22511430

Identifier RG_393_/U

Variation -

General Information

Key features

According to RG cable standard
Excellent RF performance for precision applications
Suitable for use in applications up to 6 GHz
Extended temperature range

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper, Silver plated	Strand-07	2.46 mm
Dielectric	PFA (Perfluoroalkoxy)		7.25 mm
Outer conductor	Copper, Silver plated	Braid, 92%	8 mm
Outer conductor	Copper, Silver plated	Braid, 94%	8.75 mm
Jacket	FEP (Fluorinated ethylene propylene)	RAL 8015 - br	9.9 mm +/- 0.25 mm	HUBER+SUHNER RG 393 U 50 Ohm (production order number)

Electrical data

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

RG393, 50 Ohm, 6 GHz, 200°C, ø9.9 mm, FEP jacket

Availabilities

This product is available at:

HUBER+SUHNER

Lead time 4 weeks (ex works)

Distributor

FARNELL with lead time

RICHARDSON RFPD with lead time

MOUSER 123 Meter

DIGIKEY 44 Meter

MASTER ELECTR. 50 Meter

Product code	RG_393_/U
Cable family	RG: RG type RF cables
Available as assembly only	No
Cable group	U33

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 6 GHz
Capacitance	95.9 pF/m
Velocity of signal propagation	70 %
Signal delay	4.79 ns/m
Screening effectiveness	81 dB at frequency 0.001 GHz ... 6GHz
Insulation resistance	100000000 MΩ*m
Operating Voltage (at sea level)	≤ 5.5 kVrms
Test voltage (50 Hz/1 min)	≤ 12.5 kVrms

Weight	approx. 229 g/m
Static bending radius	≥ 60 mm
Repeated bending radius	100 mm
Dynamic bending radius	< 150 mm

Operation temperature	-65 °C ... 200 °C
Installation temperature	-20 °C ... 60 °C
Heat quantity at 4k - 100K	IEC 60332-3 IEC 60332-1-2
Flame propagation standard	IEC 60332-3 IEC 60332-1-2
Fire characteristics	contains halogene

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Free of SVHC >0,1%

Related content

Products

RG393, 50 Ohm, 6 GHz, 200°C, ø9.9 mm, FEP jacket

Specifications

Availabilities

Related products

Suitable connectors

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

22658839

16_716-50-7-10/003_-E

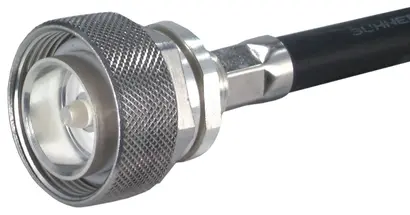

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)
