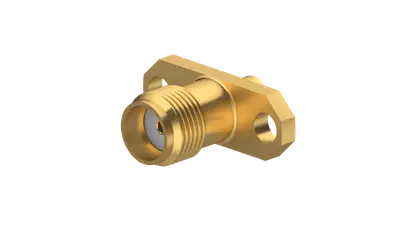

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

Product number 22641493

Identifier 25_SMA-50-2-25/111_NE

Variation Single packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

Related products

Suitable cables

Flexible (RG405) 50 Ohm, 40 GHz, 165°C, ø2.65 mm, FEP jacket

22511965

MULTIFLEX_86

-

Flexible (RG405) 50 Ohm, 67 GHz, 165°C, ø2.65 mm, FEP jacket

84129072

MULTIFLEX_86_HE

-

Hand formable (RG403) 50Ohm, 6GHz, 165°C, ø2.5mm, FEP jacket

84016948

SUCOFORM_86-TC_FEP

-

Hand formable (RG403) 50Ohm, 40GHz, 85°C, ø3.2mm LSFH jacket

22512147

SUCOFORM_86_LSFH

-

Hand formable (RG403) 50Ohm, 40GHz, 85°C, ø3.2 mm, PE jacket

22511631

SUCOFORM_86_PE

-

Hand formable (RG403) 50Ohm, 40GHz, 165°C, ø2.1mm, no jacket

22511613

SUCOFORM_86

-

Hand formable (RG403) 50Ohm, 40GHz, 165°C, ø2.1mm, no jacket

84084633

SUCOFORM_86_CU

-

Hand formable (RG403) 50Ohm, 40GHz, 165°C, ø2.5mm FEP jacket

22511942

SUCOFORM_86_FEP

-

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Aluminium/Tin plated, M17

22810167

SR_86_AL_TP_M17_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Aluminium/Tin plated, M17

22820167

SR_86_AL_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Aluminium/Tin plated, M17

22830167

SR_86_AL_TP_M17_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper, M17

22810173

SR_86_M17_Coil

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper, M17

22820173

SR_86_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper, M17

22830173

SR_86_M17_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Silver plated

22810180

SR_86_CU_SP_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Silver plated

22820180

SR_86_CU_SP_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Silver plated

22830180

SR_86_CU_SP_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22810175

SR_86_TP_M17_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22810182

SR_86_CU_TP_M17_COIL

Coil

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22820175

SR_86_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22820182

SR_86_CU_TP_M17_2M

2 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22830175

SR_86_TP_M17_3M

3 meter

Semi-rigid, 50 Ohm, 40 GHz, 125°C, ø2.2 mm, Copper/Tin plated, M17

22830182

SR_86_CU_TP_M17_3M

3 meter

Product code	25_SMA-50-2-25/111_N
Interface type	SMA
Available as assembly only	No
Cable group	Y3 Y16 Y11

Interface type	SMA
Gender	jack
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator	PFA / PTFE

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0019 kg
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	soldered

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	Y3 - 2 mm / 50 Ohm Y16 - 2 mm / 50 Ohm Y11 - 2 mm / 50 Ohm
Suitable cables	SUCOFORM_86
