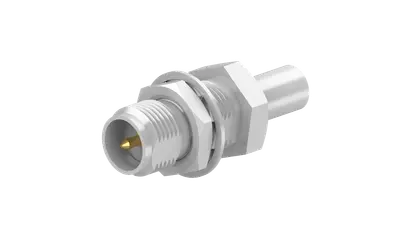

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight bulkhead cable jack (female)

Product number 23011465

Identifier 24_SMA-R50-2-51/133_NE

Variation Single packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

Product code	24_SMA-R50-2-51/133_N
Interface type	SMA-reverse
Available as assembly only	No
Cable group	U2

Interface type	SMA-reverse
Gender	jack
Standard	HUBER+SUHNER-SMA-R50

Centre contact	Copper Beryllium / Brass / Gold Plating (Nickel underplated)
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Fastening nut	Brass / SUCOPLATE (R) Plating
Washer	Bronze / SUCOPLATE (R) Plating
Crimp ferrule	Copper / SUCOPLATE (R) Plating

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0034 kg
Mating cycles	500
Cable entry centre contact	crimped
Cable entry outer contact	crimped

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight bulkhead cable jack (female)

Specifications

Related products

Suitable cables

RG174, 50 Ohm, 1 GHz, 85°C, ø2.8 mm, PVC jacket

22511579

RG_174_A/U

RG174, 50 Ohm, 1 GHz, 85°C, ø2.8 mm, PVC jacket

22511810

RG_174_A/U-60

RG174, 50 Ohm, 1 GHz, 85°C, ø2.55 mm, PVC jacket

22510040

RG_174_/U

RG174 alternative, 50 Ohm, 1 GHz, 85°C, ø2.55 mm, PVC jacket

22510110

G_02232-09

RG174 LSFH, 50 Ohm, 1 GHz, 85°C, ø2.8 mm, LSFH jacket

22510862

G_02262

RG174 LSFH, 50 Ohm, 2 GHz, 105°C, ø2.8 mm, RADOX® jacket

22510833

GX_02272

RG188, 50 Ohm, 3 GHz, 200°C, ø2.6 mm, FEP jacket

22511839

RG_188_A/U-60

RG188, 50 Ohm, 3 GHz, 205°C, ø2.6 mm, PFA jacket

22510046

RG_188_A/U

RG188 alternative, 50 Ohm, 3 GHz, 200°C, ø2.5 mm, FEP jacket

22510047

RG_188_A/U-01

RG316, 50 Ohm, 3 GHz, 200°C, ø2.5 mm, FEP jacket

22510079

RG_316_/U

RG316 LSFH, 50 Ohm, 3 GHz, 105°C, ø2.54 mm, RADOX®jacket,

23009565

ENVIROFLEX_316

RG316 LSFH, 50 Ohm, 3 GHz, 105°C, ø2.54 mm, RADOX®jacket,

84027942

ENVIROFLEX_316-03

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	U2 - 2 mm / 50 Ohm
Suitable cables	RG_316_/U
Additional cables	RG_174_/U
