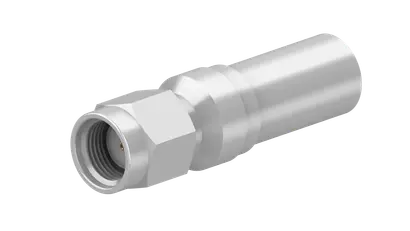

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

Product number 84027004

Identifier 11_SMA-R50-4-97/133_NH

Variation Bulk packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Frequency range	Return loss	VSWR
0.1 GHz ... 2 GHz	25 dB	1.119
2 GHz ... 4 GHz	20 dB	1.222
4 GHz ... 6 GHz	18 dB	1.288

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

Product code	11_SMA-R50-4-97/133_N
Interface type	SMA-reverse
Available as assembly only	No
Cable group	X9 X34 X28 S16

Interface type	SMA-reverse
Gender	plug
Standard	HUBER+SUHNER-SMA-R50

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Brass / SUCOPLATE (R) Plating
Body	Brass / SUCOPLATE (R) Plating
Insulator	PFA / PTFE
Coupling nut	Brass / SUCOPLATE (R) Plating
Gasket	VMQ (Silicone rubber)
Crimp ferrule	Copper / SUCOPLATE (R) Plating

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.007 kg
Mating cycles	500
Cable entry centre contact	soldered
Cable entry outer contact	crimped

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

Specifications

Related products

Suitable cables

High-flexible, Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.17 mm, TPU jacket

85089188

SPUMA_240-RS-FR

Low-loss, 50 Ohm, 6 GHz, 85°C, ø5.5 mm, LSFH jacket

84023780

S_04162_B-01

Low-loss, 50 Ohm, 6 GHz, 85°C, ø5.7 mm, LSFH jacket

22512246

S_04262_D-03

Low-loss, 50 Ohm, 6 GHz, 85°C, ø5.7 mm, LSFH jacket

84034611

S_04262_D-09

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.15 mm, PE jacket

84151737

SPUMA_240

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.17 mm, LSFH jacket

85021563

SPUMA_240-FR-01

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.17 mm, LSFH jacket

85069656

SPUMA_240-FR-AM

Low-loss, 50 Ohm, 6 GHz, 105°C, ø5.7 mm, RADOX® jacket

22511926

SX_04272_D-02

Low-loss, 50 Ohm, 8 GHz, 105°C, ø5.5 mm, RADOX® jacket

84026748

SX_04172_B-60

Low-loss, 50 Ohm, 18 GHz, 85°C, ø5.3 mm, PUR jacket

22511855

S_04212_B

Low-loss, 50 Ohm, 18 GHz, 85°C, ø5.5 mm, LSFH jacket

84000918

S_04262_B-01

Low-loss, 50 Ohm, 18 GHz, 85°C, ø5.5 mm, PE jacket

22511622

S_04272_B

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead

Cable group	X9 - 4 mm / 50 Ohm X34 - 4 mm / 50 Ohm X28 - 4 mm / 50 Ohm S16 - 4 mm / 50 Ohm
Suitable cables	SPUMA_240-RS-FR
