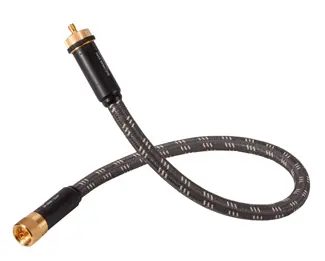

MICROWAVE TEST ASSEMBLIES, 3.5mm (female PORT), 3.5mm (female DUT), 50 Ohm, 26.5 GHz, 38in

Applicable up to 26.5 GHz
Extremely flexible and ease of handling
High stable electrical performance
"Best-in-class phase and amplitude stability with flexure, movement, temperature and tensile stress"
Long life time - lower measurement cost

Product configuration

Electrical data

Impedance	50 Ω
Max. operating frequency	26.5 GHz
Min. return loss	20 dB
VSWR max	1.222
Max. insertion loss	3.6 dB
Signal delay	4.17 ns/m
Propagation velocity	80 %
Min. screening effectiveness	90 dB
Max. screening frequency	26.5 GHz
Amplitude stability vs. movement	+/- 0.025 dB
Amplitude stability vs. flexure	+/- 0.04 dB
Phase stability vs. flexure	+/- 3.7 °
Phase stability vs. Temperature	typ 50 ppm (between 15 °C ... 30 °C)

Electrical Data (frequency related)

Mechanical data

Environmental data

Type of cable	SUCOFLEX_526_V
Type description connector A	35VF
Series connector A	PC 3.5, straight - jack
Type description connector B	35F
Series connector B	PC 3.5, straight - jack
Armour	AR_V-10_black-sand
Length	965 mm
Length type	REF to REF
