50 Ohm, 3 GHz, 105°C, ø4.95 mm, RADOX® jacket

Product number 22510959

Identifier GX_03272

Variation -

General Information

Key features

Halogen free alternative to standard RG cable
Low smoke
Ozone, UV and weathering resistance

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper, Tin plated	Strand-19	0.902 mm - 0.15 mm
Dielectric	PEX (Polyethylene cross-linked)		2.95 mm
Outer conductor	Copper, Silver plated	Braid, 96%	3.6 mm
Jacket	RADOX	RAL 9005 - bk	4.95 mm +/- 0.15 mm	HUBER+SUHNER GX 03272 50 Ohm (production order number)

Electrical data

Mechanical data

Environmental data

Material compliance ROHS

50 Ohm, 3 GHz, 105°C, ø4.95 mm, RADOX® jacket

Related products

Suitable connectors

Cable terminators for flexible cables

23013153

83_CT-0-3-1/-23_-E

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540185

16_BNC-50-3-5/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540198

16_BNC-50-3-13/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22644365

16_BNC-50-3-5/133_UH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84013233

16_BNC-50-3-25/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84057675

16_BNC-50-3-27/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540378

24_BNC-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540385

24_BNC-50-3-5/133_NE

-

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

84057964

24_BNC-50-3-37/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22540263

21_BNC-50-3-12/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22646504

21_BNC-50-3-26/133_NH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

84057699

21_BNC-50-3-27/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540045

11_BNC-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540052

11_BNC-50-3-4/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540054

11_BNC-50-3-5/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540077

11_BNC-50-3-25/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22641268

11_BNC-50-3-4/133_NH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22644457

11_BNC-50-3-50/CER_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22658737

11_BNC-50-3-72/122_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057578

11_BNC-50-3-87/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057579

11_BNC-50-3-87/133_NH

Bulk packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

84057974

25_BNC-50-3-39/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight bulkhead cable jack (female)

22644448

24_C-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

22541103

11_C-50-3-7/133_NE

Single packaging

COAXIAL CONNECTOR, H4, 50 Ohm, Straight bulkhead cable jack (female)

22541784

24_H4-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable jack (female)

22541756

21_H4-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable plug (male)

22541732

11_H4-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable plug (male)

22541737

11_H4-50-3-3/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22642846

16_N-50-3-26/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651610

16_N-50-3-103/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542295

24_N-50-3-10/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542296

24_N-50-3-11/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22542229

21_N-50-3-7/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22543504

21_N-50-3-5/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

85125921

21_N-50-3-5/133_NH

Missing product short name

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542069

11_N-50-3-4/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22642842

11_N-50-3-28/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542342

25_N-50-3-4/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542346

25_N-50-3-6/133_NE

Single packaging

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Right angle cable plug (male)

84023627

16_QLA-01-3-1/122_NE

Single packaging

COAXIAL CONNECTOR, QLA-01, 50 Ohm, Straight cable plug (male)

22641313

11_QLA-01-3-1/122_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23017691

16_QMA-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23017692

16_QMA-50-3-2/133_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

23017795

24_QMA-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017702

11_QMA-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017703

11_QMA-50-3-2/133_NH

Bulk packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

23033398

16_QN-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

23033402

24_QN-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23033392

11_QN-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight bulkhead cable jack (female)

22641281

24_SHV-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable jack (female)

22541998

21_SHV-50-3-1/133_NE

Single packaging

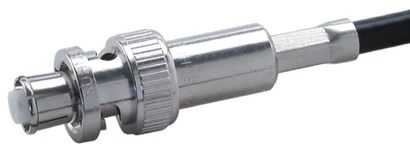

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable plug (male)

22541987

11_SHV-50-3-1/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable plug (male)

22541989

11_SHV-50-3-5/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable plug (male)

22541990

11_SHV-50-3-10/133_NE

Single packaging

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight panel cable jack (female), flange mount

22542014

25_SHV-50-3-2/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651584

16_SMA-50-3-145/133_NE

-

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651585

16_SMA-50-3-105/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651800

16_SMA-50-3-105/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84130712

16_SMA-50-3-15/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22640081

21_SMA-50-3-5/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22640048

11_SMA-50-3-5/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22640050

11_SMA-50-3-7/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22641371

11_SMA-50-3-55/199_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22642239

11_SMA-50-3-45/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22644684

11_SMA-50-3-5/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22645987

11_SMA-50-3-45/133_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84117823

11_SMA-50-3-237/133_NP

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84130703

11_SMA-50-3-237/133_NE

Single packaging

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable jack (female)

84032514

21_SMA-R50-3-51/133_NE

Single packaging

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

22658747

11_SMA-R50-3-48/133_NE

Single packaging

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

85101079

11_SMA-R50-3-48/133_NH

Missing product short name

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

22640492

16_TNC-50-3-13/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

23010115

16_TNC-50-3-112/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

84012481

16_TNC-50-3-28/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

23010150

24_TNC-50-3-23/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

22640523

21_TNC-50-3-4/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84016544

21_TNC-50-3-31/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84018747

21_TNC-50-3-4/133_NH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22543475

11_TNC-50-3-6/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22640798

11_TNC-50-3-5/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22648593

11_TNC-50-3-31/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22658218

11_TNC-50-3-116/133_UH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22660229

11_TNC-50-3-5/133_NH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

23001714

11_TNC-50-3-116/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

23001715

11_TNC-50-3-116/133_NH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

22643707

25_TNC-50-3-9/133_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

84016722

25_TNC-50-3-19/133_NE

Single packaging

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable jack (female)

23003716

21_TNC-R50-3-14/133_NE

Single packaging

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

22658965

11_TNC-R50-3-42/133_NE

Single packaging

COAXIAL CONNECTOR, UHF, other Ohm, Straight cable plug (male)

22542678

11_UHF-0-3-17/033_-E

Single packaging

COAXIAL CONNECTOR, UHF, other Ohm, Straight cable plug (male)

22542680

11_UHF-0-3-19/033_-E

Single packaging

COAXIAL CONNECTOR, UHF, X Ohm, Right angle cable plug (male)

22542757

16_UHF-0-3-4/023_-E

Single packaging

COAXIAL CONNECTOR, UHF, X Ohm, Straight cable jack (female)

22542770

21_UHF-0-3-3/033_-E

Single packaging

Taper sleeve 4.85 - 5.5 mm

22544408

78_Z-0-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544409

78_Z-8-3-4

Missing product short name

Taper sleeve 4.85 - 5.5 mm

22544410

78_Z-7-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544411

78_Z-6-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544412

78_Z-5-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544413

78_Z-4-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544414

78_Z-3-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544415

78_Z-2-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544416

78_Z-1-3-4

Missing product short name

Taper sleeve 4.85 - 5.5 mm

22544508

78_Z-9-3-4

-

Product code	GX_03272
Cable family	GX: RF cables with cross-linked PE dielectrics
Available as assembly only	No
Cable group	U7

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 3 GHz
Capacitance	101 pF/m
Velocity of signal propagation	66 %
Signal delay	5.03 ns/m
Screening effectiveness	41 dB at frequency 0.001 GHz ... 2GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	28 Ω/km
Outer conductor resistance	12.4 Ω/km
Operating Voltage (at sea level)	≤ 2.5 kVrms
Test voltage (50 Hz/1 min)	≤ 5 kVrms

Weight	approx. 40 g/m
Static bending radius	≥ 25 mm
Repeated bending radius	50 mm (bendings, up to 50)

Operation temperature	-40 °C ... 105 °C
Installation temperature	-20 °C ... 60 °C
Flame propagation standard	IEC 60332-1
Fire characteristics	free of halogenes, acc. standard IEC 60754

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Related content

Products

50 Ohm, 3 GHz, 105°C, ø4.95 mm, RADOX® jacket

Specifications

Related products

Suitable connectors

Cable terminators for flexible cables

23013153

83_CT-0-3-1/-23_-E

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540185

16_BNC-50-3-5/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540198

16_BNC-50-3-13/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22644365

16_BNC-50-3-5/133_UH

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84013233

16_BNC-50-3-25/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84057675

16_BNC-50-3-27/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540378

24_BNC-50-3-1/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540385

24_BNC-50-3-5/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

84057964

24_BNC-50-3-37/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22540263

21_BNC-50-3-12/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22646504

21_BNC-50-3-26/133_NH

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

84057699

21_BNC-50-3-27/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540045

11_BNC-50-3-1/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540052

11_BNC-50-3-4/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540054

11_BNC-50-3-5/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540077

11_BNC-50-3-25/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22641268

11_BNC-50-3-4/133_NH

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22644457

11_BNC-50-3-50/CER_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22658737

11_BNC-50-3-72/122_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057578

11_BNC-50-3-87/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057579

11_BNC-50-3-87/133_NH

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

84057974

25_BNC-50-3-39/133_NE

COAXIAL CONNECTOR, C, 50 Ohm, Straight bulkhead cable jack (female)

22644448

24_C-50-3-2/133_NE

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

22541103

11_C-50-3-7/133_NE

COAXIAL CONNECTOR, H4, 50 Ohm, Straight bulkhead cable jack (female)

22541784
