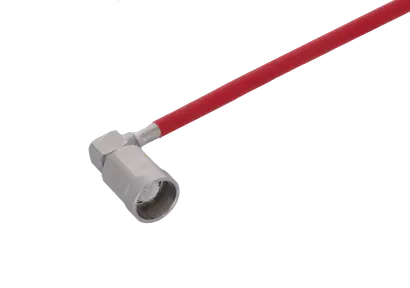

Hand formable (RG402) 50Ohm, 33GHz, 85°C, ø4.6 mm, PE jacket

Product number 22511639

Identifier SUCOFORM_141_CU_PE

Variation -

General Information

Key features

Hand-formable alternative to semi-rigid cables
Small bend radius allows for space saving routing and packaging
Performance comparable to semi-rigid cables
Non-magnetic
PE jacket

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper, Silver plated	Wire	0.95 mm
Dielectric	PTFE (Polytetrafluoroethylene)		2.95 mm
Outer conductor	Copper, Tin plated	Tin soaked braid, 100%	3.58 mm
Jacket	PE (Polyethylene)	RAL 3004 - rd	4.6 mm +/- 0.1 mm	HUBER+SUHNER SUCOFORM 141 Cu PE 50 Ohm (PA no.)

Electrical data

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Hand formable (RG402) 50Ohm, 33GHz, 85°C, ø4.6 mm, PE jacket

Related products

Suitable connectors

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Right angle cable plug (male)

85064160

16_4310-50-3-X1/003_-H

Bulk packaging

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Straight cable jack (female)

85068552

21_4310-50-3-1/003_-Y

Tray packaging

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Straight cable plug (male)

85089256

11_4310-50-3-X2/033_-H

Bulk packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight bulkhead cable jack (female)

84027070

24_716-50-3-5/003_-Y

Tray packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

23031257

11_716-50-3-3/003_-Y

Tray packaging

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight panel cable jack (female), flange mount

23020232

25_716-50-3-15/000_-Y

Tray packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)

85018694

24_BMA-N50-3-18/11-_NE

Single packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

22645601

14_BMA-50-3-2/111_NE

Single packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

84014885

14_BMA-50-3-2/111_NH

Bulk packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

85006443

14_BMA-50-3-31/133_NH

Bulk packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

22645605

25_BMA-50-3-2/119_NE

Single packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

85006464

25_BMA-N50-3-10/113_NH

Bulk packaging

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

85018698

25_BMA-N50-3-7/119_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22641923

24_BNC-50-3-33/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22642000

21_BNC-50-3-33/133_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540108

11_BNC-50-3-54/103_NE

Single packaging

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

22641999

25_BNC-50-3-34/133_NE

Single packaging

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable plug (male)

22658773

11_H4-50-3-10/133_NE

Single packaging

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

84006763

11_MCX-50-3-1/111_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22648832

16_N-50-3-15/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

23010720

16_N-50-3-15/133_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542300

24_N-50-3-14/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22642344

24_N-50-3-51/19-_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22645043

24_N-50-3-14/133_NY

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22652908

24_N-50-3-14/133_UE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22543921

21_N-50-3-11/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542083

11_N-50-3-13/113_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22543919

11_N-50-3-51/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22650183

11_N-50-3-13/113_NH

Bulk packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22658644

11_N-50-3-13/113_UE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22543952

25_N-50-3-9/133_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22660308

25_N-50-3-27/1--_NE

Single packaging

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

85124863

25_N-50-3-9/133_NY

Bulk packaging

COAXIAL CONNECTOR, NEX10, 50 Ohm, Straight cable plug (male)

85091361

11_NEX10-50-3-X1/003_-H

Bulk packaging

COAXIAL CONNECTOR, NEX10, 50 Ohm, Straight cable plug (male)

85095347

11_NEX10-50-3-Z2/003_-H

Single packaging

COAXIAL CONNECTOR, NEX10, 50 Ohm, Straight cable plug (male)

85102764

16_NEX10-50-3-X1/003_-H

Missing product short name

COAXIAL CONNECTOR, NEX10, 50 Ohm, Straight panel cable jack (female), flange mount

85091413

25_NEX10-50-3-1/033_-E

Single packaging

COAXIAL CONNECTOR, PC 3.5, 50 Ohm, Straight bulkhead cable jack (female)

84009383

24_PC35-50-3-2/199_UE

Single packaging

COAXIAL CONNECTOR, PC 3.5, 50 Ohm, Straight cable plug (male)

84009380

11_PC35-50-3-4/199_UE

Single packaging

COAXIAL CONNECTOR, PC 3.5, 50 Ohm, Straight PCB Jack (female)

84009382

21_PC35-50-3-3/199_UE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23017693

16_QMA-50-3-3/133_NE

-

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84075863

16_QMA-W50-3-5/113_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

23017683

24_QMA-50-3-3/111_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

23017684

24_QMA-50-3-3/111_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017695

11_QMA-50-3-3/133_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017696

11_QMA-50-3-3/133_NH

Bulk packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84075868

11_QMA-W50-3-7/113_NE

Single packaging

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight panel cable plug (male)

84090507

15_QMA-F50-3-1/10-_NH

Bulk packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

23033268

16_QN-50-3-3/13-_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

23033423

24_QN-50-3-3/13-_NE

Single packaging

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23033393

11_QN-50-3-3/113_NE

Single packaging

COAXIAL CONNECTOR, SMA-26.5GHz, 50 Ohm, Right angle cable plug (male)

22648293

16_SMA-50-3-100/199_NE

Single packaging

COAXIAL CONNECTOR, SMA-26.5GHz, 50 Ohm, Straight bulkhead cable jack (female)

22648728

24_SMA-50-3-100/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22640073

16_SMA-50-3-3/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22642241

16_SMA-50-3-43/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22644243

16_SMA-50-3-53/119_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22644752

16_SMA-50-3-43/133_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22646561

16_SMA-50-3-53/119_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22646569

16_SMA-50-3-3/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

23024714

16_SMA-50-3-43/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84117810

16_SMA-50-3-13/133_NP

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84130707

16_SMA-50-3-13/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22641153

24_SMA-50-3-15/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

22645259

24_SMA-50-3-15/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

23040704

24_SMA-50-3-17/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22544550

21_SMA-50-3-15/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22645042

21_SMA-50-3-15/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

23020258

21_SMA-50-3-18/111_YH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22544547

11_SMA-50-3-15/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22641643

11_SMA-50-3-65/119_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22644311

11_SMA-50-3-15/111_UH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22646570

11_SMA-50-3-65/119_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22648718

11_SMA-50-3-100/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22651601

11_SMA-50-3-15/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22658936

11_SMA-50-3-100/111_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

23026120

11_SMA-50-3-39/111_YH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84005524

11_SMA-50-3-77/119_NH

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84104274

11_SMA-50-3-235/133_NP

Bulk packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84130698

11_SMA-50-3-235/133_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

22544552

25_SMA-50-3-15/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

22641410

25_SMA-50-3-25/111_NE

Single packaging

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel cable jack (female), flange mount

22644717

25_SMA-50-3-15/111_NH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

84021420

16_TNC-50-3-24/13-_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

22650550

24_TNC-50-3-18/199_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

22658169

24_TNC-50-3-30/133_UH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

23001723

24_TNC-50-3-30/133_NH

Bulk packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22544841

11_TNC-50-3-29/113_NE

Single packaging

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22641997

11_TNC-50-3-29/103_NE

Single packaging

Product code	SUCOFORM_141_CU_PE
Cable family	Sucoform: Formstable, hand-formable alternatives to semi-rigid microwave cables
Available as assembly only	No
Cable group	Y12

Impedance	50 Ω +/-2Ω
Operating frequency	≤ 33 GHz
Capacitance	92 pF/m
Velocity of signal propagation	71 %
Signal delay	4.7 ns/m
Screening effectiveness	100 dB at frequency 0.1 GHz ... 18GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	25 Ω/km
Outer conductor resistance	18 Ω/km
Operating Voltage (at sea level)	≤ 1.9 kVrms
Test voltage (50 Hz/1 min)	≤ 5 kVrms

Weight	approx. 47 g/m
Static bending radius	≥ 8 mm
Repeated bending radius	40 mm (bendings, up to 50)

Operation temperature	-40 °C ... 85 °C
Installation temperature	-20 °C ... 60 °C
Fire characteristics	contains halogene

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Free of SVHC >0,1%

Related content

Products

Hand formable (RG402) 50Ohm, 33GHz, 85°C, ø4.6 mm, PE jacket

Specifications

Related products

Suitable connectors

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Right angle cable plug (male)

85064160

16_4310-50-3-X1/003_-H

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Straight cable jack (female)

85068552

21_4310-50-3-1/003_-Y

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Straight cable plug (male)

85089256

11_4310-50-3-X2/033_-H

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight bulkhead cable jack (female)

84027070

24_716-50-3-5/003_-Y

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

23031257

11_716-50-3-3/003_-Y

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight panel cable jack (female), flange mount

23020232

25_716-50-3-15/000_-Y

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)

85018694

24_BMA-N50-3-18/11-_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

22645601

14_BMA-50-3-2/111_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

84014885

14_BMA-50-3-2/111_NH

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

85006443

14_BMA-50-3-31/133_NH

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

22645605

25_BMA-50-3-2/119_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

85006464

25_BMA-N50-3-10/113_NH

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

85018698

25_BMA-N50-3-7/119_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22641923

24_BNC-50-3-33/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22642000

21_BNC-50-3-33/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540108

11_BNC-50-3-54/103_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

22641999

25_BNC-50-3-34/133_NE

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable plug (male)

22658773

11_H4-50-3-10/133_NE

COAXIAL CONNECTOR, MCX, 50 Ohm, Straight cable plug (male)

84006763

11_MCX-50-3-1/111_NH

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22648832

16_N-50-3-15/133_NE

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

23010720

16_N-50-3-15/133_NH

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542300

24_N-50-3-14/133_NE

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22642344

24_N-50-3-51/19-_NE

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22645043

24_N-50-3-14/133_NY

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22652908
