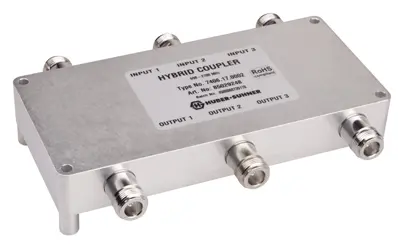

4.8 dB Hybrid Coupler

Product number 85029248

Identifier 7406.17.0002

Variation -

General Information

Key features

In DAS applications, all three outputs may be used to feed different cables, essentially providing lossless combining
Any unused ports must be terminated in 50 Ohm at the appropriate power rating
-161 dBc PIM @ 2x43 dBm
N female interfaces
Supports 694 - 800 MHz, 800 - 2500 MHz and 2500 - 2700 MHz

How to use it

This network is an important building block in combining boxes used in neutral host in-building DAS

This product is available at:

HUBER+SUHNER

Lead time 12 weeks (ex works)

Distributor

MOUSER with lead time

RS AMERICAS with lead time

DIGIKEY with lead time

Product code	7406.17.0002
Environment (application)	Indoor

Frequency range	0.694 GHz ... 0.8GHz 0.8 GHz ... 2.5GHz 2.5 GHz ... 2.7GHz
Return loss	> 20 dB > 20 dB > 19 dB
Insertion loss	0.2 dB 0.2 dB 0.2 dB
Coupling	4.8 dB 4.8 dB 4.8 dB
Coupling flatness	+/- 1.3 dB +/- 1 dB +/- 1.3 dB
Isol. between input ports	25 dB 25 dB 23 dB
Isol. between output ports	25 dB 25 dB 23 dB
Composit power max	150 W 150 W 150 W
Peak envelope power	3000 W 3000 W 3000 W
Intermodulation distortion	< -161 dBc < -161 dBc < -161 dBc
@ 2 x carrier power	43 dBm 43 dBm 43 dBm

Weight	1.1 kg
Width	81.4 mm
Height	37.6 mm
Depth	173.9 mm
Housing material and surface treatment	Aluminium / Passivated

Environment (application)	Indoor
Operation temperature	-35 °C ... 65 °C
Storage temperature	-35 °C ... 65 °C
Transport temperature	-35 °C ... 65 °C
Ingress protection (IP Rating)	IP64
