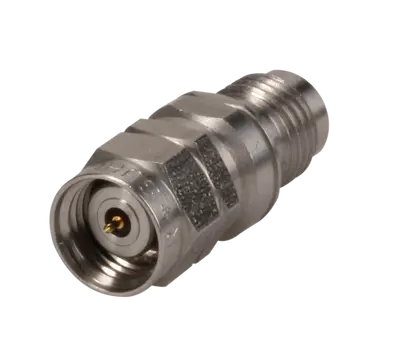

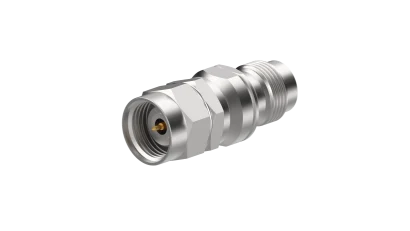

COAXIAL ADAPTER, PC 1.85, 50 Ohm, plug / jack (male / female)

Name: COAXIAL ADAPTER, PC 1.85, 50 Ohm, plug / jack (male / female)
SKU: 84019546

Product number 84019546

Identifier 33_PC185-50-0-1/199_NE

Variation: Single packaging

Key features

Product configuration

Interface side 1	PC 1.85
Gender side 1	plug (male)
Standard side 1	IEC 60169-32
Centre contact	Copper Beryllium Alloy / SUCOPRO / Gold Plating
Outer conductor	Stainless Steel / Passivated (Plating)
Body	Stainless Steel / Passivated (Plating)
Insulator	LCP (Liquid crystal polymer)
Coupling nut	Stainless Steel / Passivated (Plating)
Interface side 2	PC 1.85
Gender side 2	jack (female)
Standard side 2	IEC 60169-32
Centre contact	Copper Beryllium Alloy / SUCOPRO / Gold Plating
Outer conductor	Stainless Steel / Passivated (Plating)
Body	Stainless Steel / Passivated (Plating)
Insulator	LCP (Liquid crystal polymer)

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Impedance	50 Ω
Interface frequency	67 GHz

Weight	0.0056 kg
Mating cycles	500
