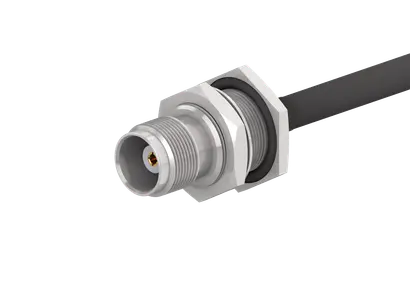

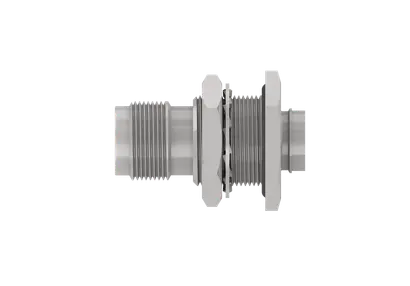

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

Product number 22650589

Identifier SF_24_TNC-222

Variation -

General Information

Key features

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Frequency range	Return loss	VSWR
0 GHz ... 18 GHz	25 dB	1.12

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Suitable cables

Centre contact	Copper Beryllium Alloy / Gold Plating (without Nickel underplating)
Outer conductor	Stainless steel / Passivated (Plating)
Body	Stainless steel / Passivated (Plating)
Insulator	PFA / PTFE
Gasket	VMQ (Silicone rubber)
Fastening nut	Stainless steel / Passivated (Plating)
Washer	Bronze / SUCOPLATE (R) Plating

Impedance	50 Ω
Interface frequency	18 GHz

Operation temperature	-65 °C ... 125 °C
Ingress protection (IP Rating)	Mated / IP65
