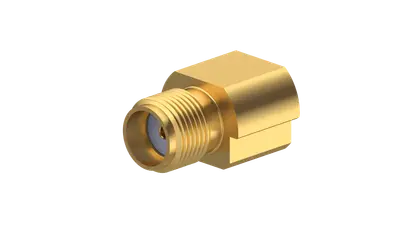

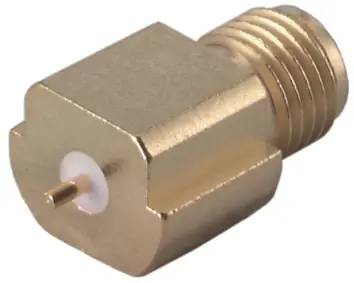

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight PCB jack (female)

Product number 22652330

Identifier 82_SMA-S50-0-45/111_NE

Variation Single packaging

Choose a variant

Single packaging

General Information

Key features

Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz

Specifications

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight PCB jack (female)

Availabilities

This product is available at:

HUBER+SUHNER

Lead time 4 weeks (ex works)

Distributor

FC LANE with lead time

FARNELL with lead time

RS COMP. 16 Piece

MOUSER 2707 Piece

DIGIKEY with lead time

MASTER ELECTR. with lead time

Product code	82_SMA-S50-0-45/111_N
Interface type	SMA
Connector type	Straight PCB jack
Board mounting type	edge mount

Interface type	SMA
Gender	jack
Standard	IEC 60169-15_MIL-STD-348A/310_CECC 22110

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor	Brass / SUCOPRO Plating
Body	Brass / SUCOPRO Plating
Insulator	PFA / PTFE

Impedance	50 Ω
Interface frequency	18 GHz

Weight	0.0036 kg
Mating cycles	500
Board mounting type	edge mount
Height above PCB HA	4 mm

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight PCB jack (female)

Specifications

Availabilities

Related products

Accessories

Insulating washer: 77_Z-0-0-8

22543204

77_Z-0-0-8/---_-H

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant with exemption
Exemptions	6c

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Contains one or more SVHC >0,1%
Details	CAS: 7439-92-1 Lead
