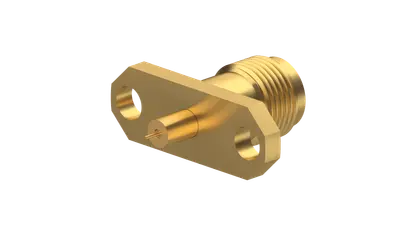

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel receptacle, jack (female), flange mount
COAXIAL CONNECTOR, SMA, 50 Ohm, Straight panel receptacle, jack (female), flange mount
Bulk packaging
Product code
23_SMA-50-0-13/111_N
Interface type
SMA
Connector type
Straight panel receptacle jack, flange mount
Flange type
2-hole flange / 16 X 5.7
×
Bulk packaging
×
Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz
×
Bulk packaging
×
Product configuration
Interface type
SMA
Gender
jack
Standard
IEC 60169-15_MIL-STD-348A/310_CECC 22110
Material data
Centre contact
Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor
Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body
Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Insulator
PFA / PTFE
Electrical data
Impedance
50 Ω
Interface frequency
18
GHz
Mechanical data
Weight
0.0023
kg
Mating cycles
500
Flange type
2-hole flange / 16 X 5.7
Tab style
Standard
Environmental data
Operation temperature
-65 °C ... 125 °C
