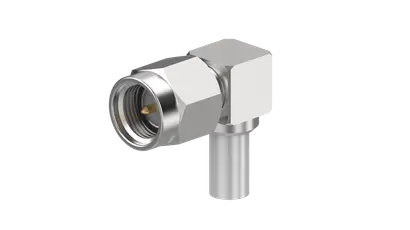

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)
COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)
Bulk packaging
Product code
16_SMA-50-2-56/199_N
Interface type
SMA
Available as assembly only
No
Cable group
U4
U4
×
Bulk packaging
×
Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz
×
Bulk packaging
×
Product configuration
Interface type
SMA
Gender
plug
Standard
IEC 60169-15_MIL-STD-348A/310_CECC 22110
Material data
Centre contact
Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor
Stainless Steel
Body
Stainless Steel
Insulator
PFA / PTFE
Coupling nut
Stainless Steel
Gasket
VMQ (Silicone rubber)
Crimp ferrule
Copper / SUCOPLATE (R) Plating
Electrical data
Impedance
50 Ω
Interface frequency
18
GHz
Electrical Data (frequency related)
Frequency range
Return loss
VSWR
Mechanical data
Weight
0.0042
kg
Mating cycles
500
Cable entry centre contact
soldered
Cable entry outer contact
crimped
Environmental data
Operation temperature
-65 °C ... 165 °C
Suitable cables
Cable group
U4 - 2 mm / 50 Ohm
Suitable cables
K_02252_D
