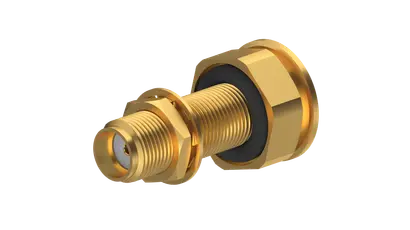

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead receptacle, jack (female)
Single packaging
Product code
22_SMA-50-0-91/111_Y
Interface type
SMA
Connector type
Straight bulkhead receptacle jack
Flange type
hexagonal flange / hex 11
Excellent return loss
Intermateable with PC3.5and SK
Applicable in frequencies up to 18 GHz
Product configuration
Interface type
SMA
Gender
jack
Standard
IEC 60169-15_MIL-STD-348A/310_CECC 22110
Material data
Centre contact
Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Outer conductor
Brass / SUCOPRO Plating
Body
Brass / SUCOPRO Plating
Insulator
PFA / PTFE
Gasket
VMQ (Silicone rubber)
Fastening nut
Brass / SUCOPRO Plating
Washer
Bronze / SUCOPRO Plating
Electrical data
Impedance
50 Ω
Interface frequency
18
GHz
Mechanical data
Weight
0.0061
kg
Mating cycles
500
Flange type
hexagonal flange / hex 11
Tab style
Standard
Environmental data
Operation temperature
-65 °C ... 165 °C
Material compliance ROHS
Directive
RoHS 2011/65/EU and (EU) 2015/863
Rating
Compliant with exemption
Exemptions
6c
Material compliance REACH
Regulation
REACH 1907/2006 Article 33 SVHC
Rating
Contains one or more SVHC >0,1%
Details
CAS: 7439-92-1 Lead
Datasheet
Datasheet
3d Model
3d Model
Mounting hole
Mounting hole
