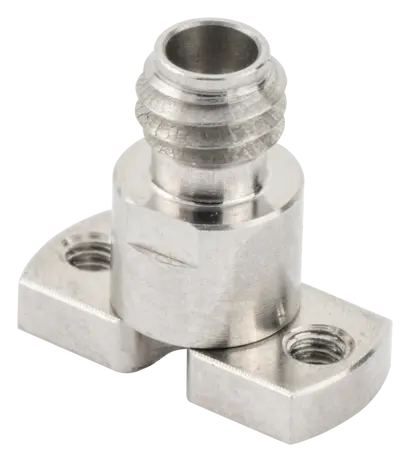

COAXIAL CONNECTOR, PC 1.0, 50 Ohm, Straight PCB jack (female)

Product number 85221628

Identifier 82_PC1-S50-0-200/199_NE

Variation Single packaging

General Information

Key features

Product configuration

Material data

Electrical data

Electrical Data (frequency related)

Frequency range	Return loss	VSWR
0 GHz ... 110 GHz	15 dB	1.43

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

This product is available at:

HUBER+SUHNER

Lead time 10 weeks (ex works)

Distributor

FC LANE with lead time

FARNELL with lead time

MOUSER 3 Piece

Centre contact	Copper Beryllium Alloy / Gold Plating (Nickel underplated)
Body	Stainless steel / Passivated (Plating)
Insulator	PEI (Polyether-imide)

Impedance	50 Ω
Interface frequency	110 GHz

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Free of SVHC >0,1%
