Connectors & Adapters
Optical fiber adapters
MTP adapter, snap-in flange, MTP footprint

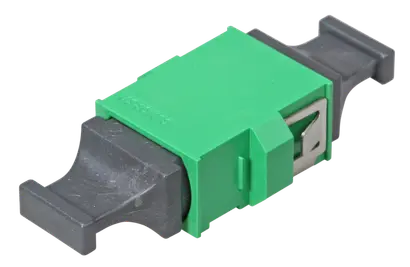

MTP adapter, snap-in flange, MTP footprint
Product number 84089275
Identifier MTP-MTP-A600
Variation Green
Choose a variant
×
Green
×
General
Specification
Documents
General Information
Product code
MTP-MTP-AXX0
Adapter family
MTP ®
Type
Simplex
Key features
MTP footprint
Opposed key orientation
Specifications
General data
Adapter family
MTP ®
Number of channels
Simplex
Flange type
Reduced flange, horizontal metal snap-in clip
Adapter key
Opposed, key UP
Performance standard
Telcordia GR-1435-CORE, issue 2, Uncontrolled Environment
Mechanical data
Adapter footprint
MTP standard footprint
Available variants
Various housing colors
Weight
2.5
g
Optical data
Mating cycles method
Telcordia GR-1435-CORE, issue 2, section 4.6.4
Mating cycles condition
50 cycles, ΔIL≤0.3dB, IL≤0.45dB, BR≤-50dB
Environmental data
Operation temperature
-40 °C ... 75 °C
Storage temperature
85 °C
UV resistance
UL 746C F1 rating
Flammability rating
UL 94 V-0
