Other SystemsRF-over-Fiber solutionsGNSS-over-FiberExpansion module, FO splitter, L1, L2, 1RU, 1 FO IN, 8 FO OUT

Expansion module, FO splitter, L1, L2, 1RU, 1 FO IN, 8 FO OUT

Product number 85154296

Identifier GPSoF - OSM (1x8)

Variation -

General Information

Product code	GPSoF - OSM (1x8)
Product family	GNSS Expansion
GNSS Band	L1: 1545 - 1610 MHz L2: 1164 - 1254 MHz

Key features

Easily scaled to higher density distribution

Specifications

General data

Product line
Product family	GNSS Expansion

Electrical data

GNSS band	L1: 1545 - 1610 MHz L2: 1164 - 1254 MHz
Link gain range	-9 dB ... -5 dB
Link gain typical	-7 dB
Frequency response flatness	+/- 2 dB
Power in	12 V DC
Power connector	3pole connector series 680, socket
Supply voltage range	11 V DC ... 14 V DC
Supply voltage typical	12 V DC
Supply current typical	< 275 mA

Mechanical data

Weight	1.5 kg
Weight in lbs	3.3 lbs
Dimensions (LxWxH)	482.6mm x 279.4mm x 44.45mm
Rack height unit	1 U

Optical data

Time delay	45 ns
Optical output power min	0.79 mW
Optical output power max	1 mW
Optical output power typical	1.26 mW
Return loss	≥ 45 dB

Environmental data

Operation case temperature

-5 °C ... 55 °C

Input of FO connection

Product family FO connector	LC UPC
Amount of FO Connectors	1 pcs

Output of FO connection

Product family FO connector	LC UPC
Amount of FO Connectors	8 pcs
Fiber type	Singlemode

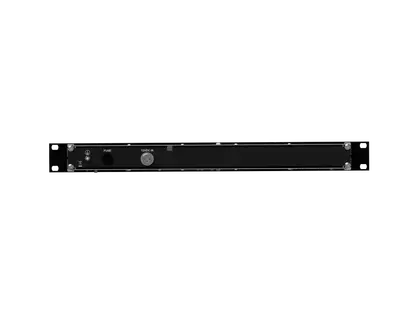

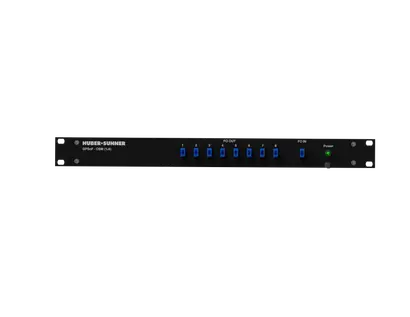

Expansion module, FO splitter, L1, L2, 1RU, 1 FO IN, 8 FO OUT

Expansion module, FO splitter, L1, L2, 1RU, 1 FO IN, 8 FO OUT

Expansion module, FO splitter, L1, L2, 1RU, 1 FO IN, 8 FO OUT
