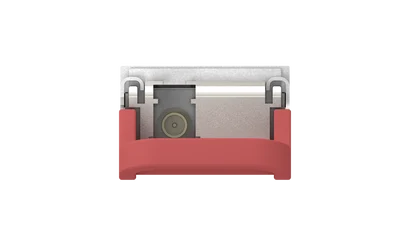

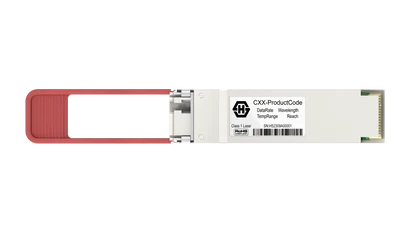

10 Gbps SFP+ Tunable DWDM ZR

Product number 85274972

Identifier CSS-944A22

Variation 80km, C-band 50GHz, H13 to C61, LC/PC duplex, Singlemode

Wavelength

1550nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

SFP+-10G-DWDM ZR-T

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General Information

Key features

How to use it

Type	10 Gbps SFP+ Tunable DWDM ZR
Media Reach Type	80km, C-band 50GHz, Singlemode fiber
Protocol	1/10G Ethernet, 1/2/4/8/10G FC, STM-64/OC-48, CPRI Option 2...8, OBSAI
Special features	C-band tunable

Form factor	SFP+
Protocol	1/10G Ethernet, 1/2/4/8/10G FC, STM-64/OC-48, CPRI Option 2...8, OBSAI
Data rate standards	10GBASE-ZR/ZW CPRI Option 2 to 8
Media type	Singlemode
Connector	LC/PC duplex
Modulation Format	NRZ
Built-in FEC	No
CDR	none
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 550 mA
Power consumption	< 1.65 W
Laser hazard level	1

Max. supply voltage range	-0.5 V ... 4 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 95 %

Laser Type	EML
Operating Wavelength Range	1528.77 nm ... 1566.72nm
Operating channels	Tunable from C14 to C61 / H13 to H60
Grid	DWDM 50GHz C/H-band
Average launch power per lane	-1 dBm ... 3 dBm
Dispersion Penalty	< 2 dB
Dispersion range	-400 ps/nm ... 1600ps/nm
Extinction Ratio	> 8.2 dB
Side Mode Suppression	> 30 dB

Receiver Type	APD
Operating Wavelength Range	1480 nm ... 1580nm
Receiver Overload	> -6 dBm
Receiver Sensitivity	< -23 dBm
Bit Error Rate at Receiver	1E-12
Receiver LOS De-Assert	< -27 dBm
Receiver LOS Assert	> -35 dBm
Supported Data rate	1.0625 Gbps ... 11.3 Gbps
Maximum Receiver Power (Damage Threshold)	> -6 dBm

Type	80km, C-band 50GHz, H13 to C61, LC/PC duplex, Singlemode
Identifier	CSS-944A22
Product code	CSS-944A22
