400G QSFP112 PAM4 DR4

Product number 85244725

Identifier CQS-110A03

Variation 500m, 1310nm, MPO-12, Singlemode

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP112-400G-DR4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General Information

Key features

How to use it

This product is available at:

HUBER+SUHNER

Lead time on request

Form factor	QSFP112

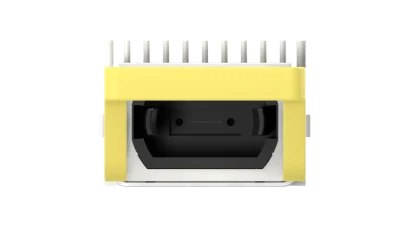

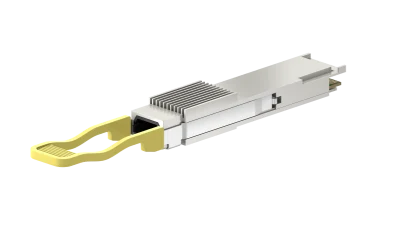

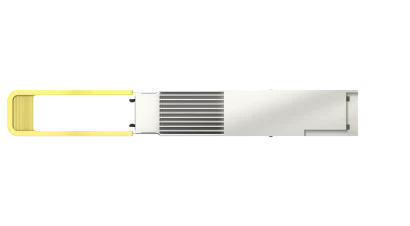

Product image	Actual product may differ from the images shown. Colours, design, and details can vary.
Protocol	400G Ethernet, Infiniband
Data rate standards	400GBASE-DR4
Media type	Singlemode
Connector	MTP/MPO-8/12 (APC)
Modulation Format	PAM4
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 2727 mA
Power consumption	< 9 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1

Max. supply voltage range	-0.5 V ... 3.6 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 85 %

Laser Type	EML
Operating Wavelength Range	1304.5 nm ... 1317.5nm
Grid	None
Average launch power per lane	-2.9 dBm ... 4 dBm
Outer Optical Modulation Amplitude (OMA)	-0.8 dBm ... 4.2 dBm
Extinction Ratio	> 3.5 dB
Side Mode Suppression	> 30 dB
Supported Data rate	425 Gbps
Transmitter and dispersion eye closure for PAM4 (TDECQ)	< 3.4 dB
OMA - TDECQ	-2.2

Receiver Type	PIN
Operating Wavelength Range	1304.5 nm ... 1317.5nm
Receiver Sensitivity (OMA)	< -4.4 dBm
Stressed receiver sensitivity (OMA)	< -1.9 dBm
Bit Error Rate at Receiver	2.4E-4
Receiver LOS De-Assert	< -6.9 dBm
Receiver LOS Assert	> -15 dBm
Receiver LOS Hysteresis	> 0.5 dB
Supported Data rate	425 Gbps
Average receive power per lane	-5.9 dBm ... 4 dBm
Maximum Receiver Power (Damage Threshold)	> 5 dBm
