100G QSFP28 ER4

Product number 85212240

Identifier CQS-923A17

Variation 40km, 1310nm, LC/PC duplex, Singlemode, EML laser

Wavelength

1310nm

Compatibility: Vendor

- Uncoded

Compatibility: Details

QSFP28-ER4

Looking for a compatibility that isn’t listed here? Contact us and we will get back to you shortly.

General Information

Key features

How to use it

This product is available at:

HUBER+SUHNER

Lead time on request

Form factor	QSFP28

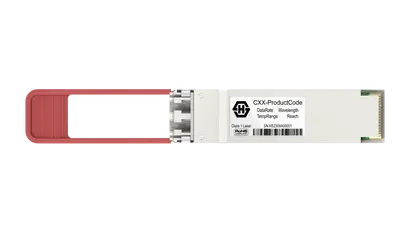

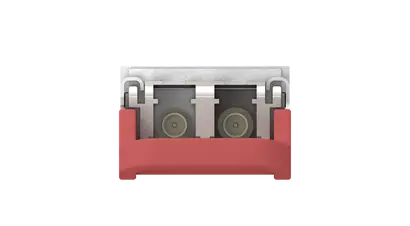

Product image	Actual product may differ from the images shown. Colours, design, and details can vary.
Protocol	100G Ethernet
Data rate standards	100GBASE-ER4
Media type	Singlemode
Connector	LC/PC duplex
Modulation Format	NRZ
Built-in FEC	No
CDR	Double
Operation temperature	0 °C ... 70 °C
Supply voltage typical	3.13 V ... 3.47 V
Supply Current	< 1515 mA
Power consumption	< 5 W
Digital Diagnostic Management (DDM)	Yes
Laser hazard level	1

Max. supply voltage range	-0.3 V ... 3.6 V
Max. Storage Temperature Range	-40 °C ... 85 °C
Max. relative humidity range	5 % ... 95 %

Laser Type	EML
Operating channels	1295.56nm (1294.53 to 1296.59nm) 1300.05nm (1299.02 to 1301.09nm) 1304.58nm (1303.54 to 1305.63nm) 1309.14nm (1308.09 to 1310.19nm)
Grid	None
Average launch power per lane	-1 dBm ... 6.5 dBm
Outer Optical Modulation Amplitude (OMA)	0 dBm ... 6.5 dBm
Total optical output power	< 12.5 dBm
Extinction Ratio	> 7 dB
Side Mode Suppression	> 30 dB
Supported Data rate	103.125 Gbps

Receiver Type	APD
Operating channels	1295.56nm (1294.53 to 1296.59nm) 1300.05nm (1299.02 to 1301.09nm) 1304.58nm (1303.54 to 1305.63nm) 1309.14nm (1308.09 to 1310.19nm)
Receiver Overload	> -3.5 dBm
Receiver Sensitivity	< -18 dBm
Bit Error Rate at Receiver	1E-12
Receiver LOS De-Assert	< -22 dBm
Receiver LOS Assert	> -30 dBm
Receiver LOS Hysteresis	> 0.5
Supported Data rate	103.125 Gbps
Maximum Receiver Power (Damage Threshold)	> -2.5 dBm
