Test & Measurement

HUBER+SUHNERs wide range of superior, flexible and rugged cable assemblies with excellent mechanical and electrical performance attributes guarantees consistency and reliability of signal transmission in any test environment.

Our Test Leads are ideal partners for:

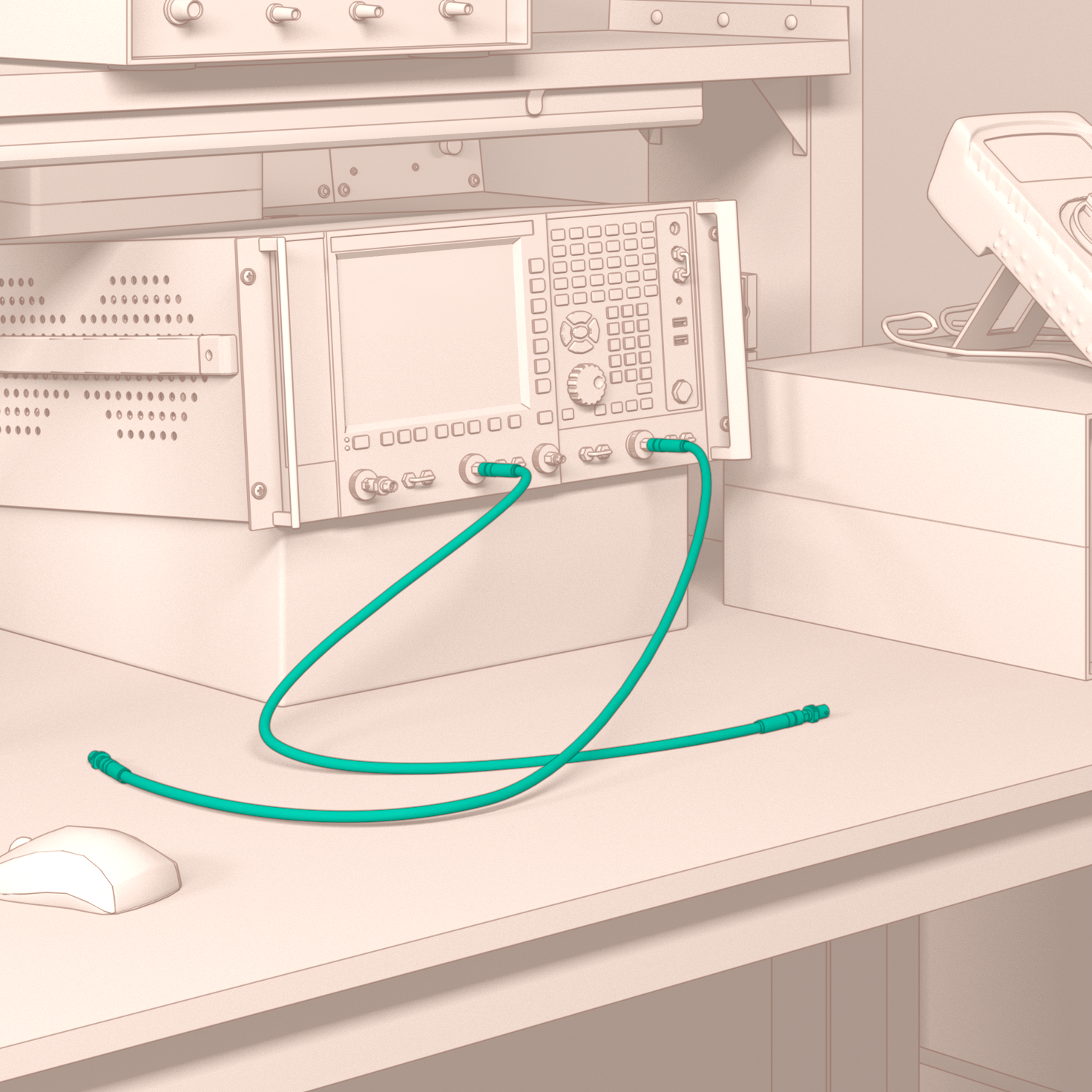

• Bench top testing
• RF production testing
• RF module testing
• High speed digital testing (HSDT)
• Automated test equipment

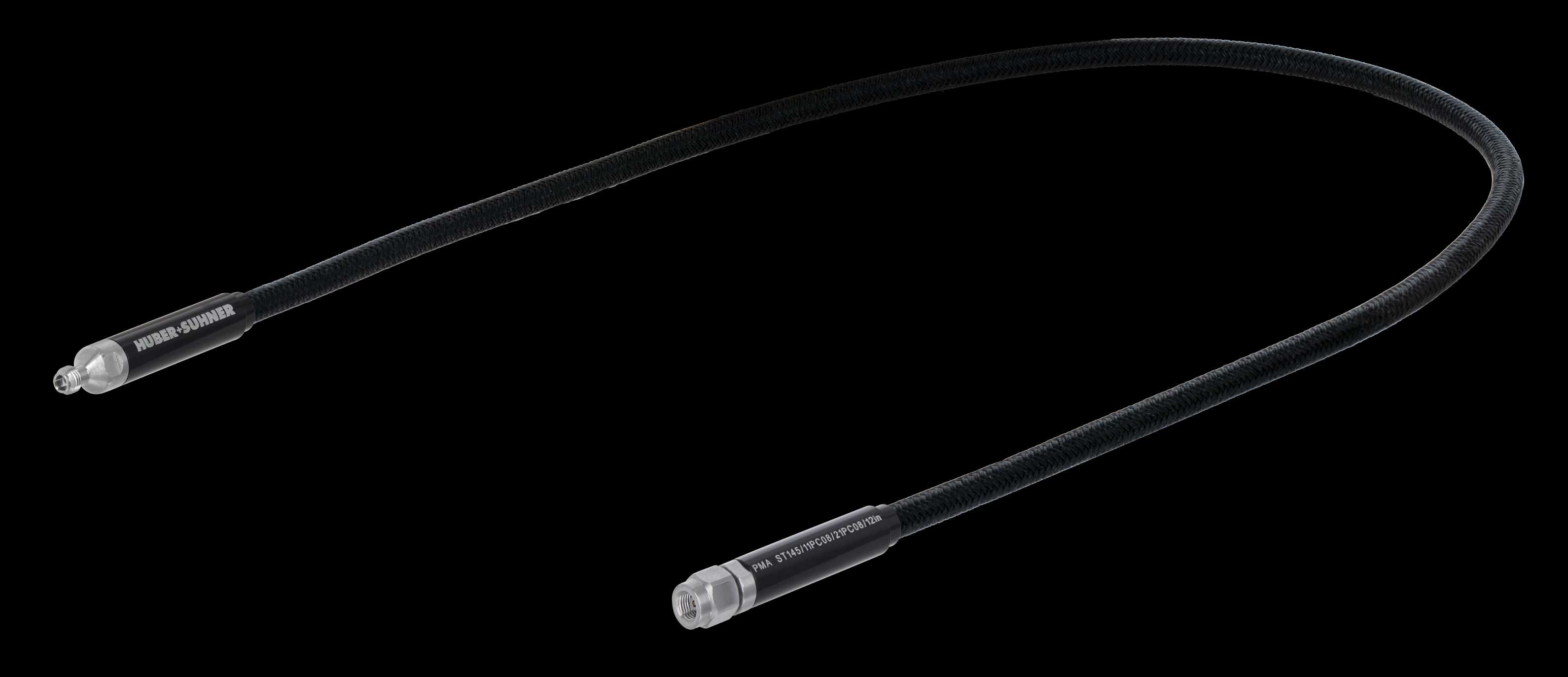

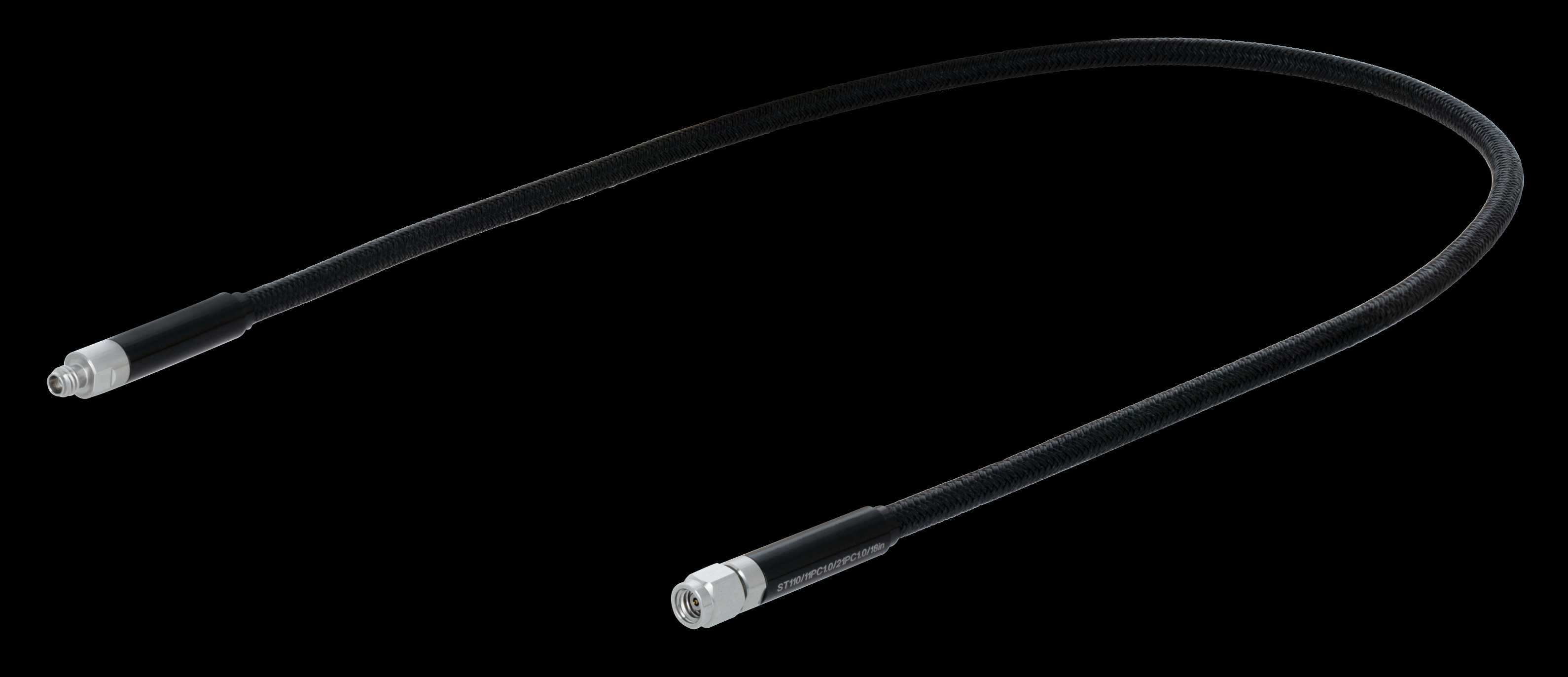

When it comes to test and measurement, the SUCOFLEX 500 assemblies guarantee the highest level of satisfaction. Thanks to their unique cable and connector design, they deliver the best phase and amplitude stability versus flexure, movement, temperature and tensile stress, in combination with outstanding return and insertion loss up to 70 GHz.

Due to the rotary swaged low-loss inner conductor and the rugged construction, all SUCOFLEX 500S assemblies withstand more than 100,000 flexures without degradation of performance and therefore have a very long life-time. HUBER+SUHNER supplies all SUCOFLEX 500 standard length products within five working days and customised lengths are available within ten working days worldwide.

• Applicable in frequencies up to 70GHz
• Excellent insertion and return loss
• Outstanding phase and amplitude stability with flexure and movement
• Very long service life (>100.000 flex cycles)
• Variety of interface options available

SUCOFLEX 500 custom assembly

HUBER+SUHNER’s SUCOFLEX 500 cable family are available up to 70 GHz, for several applications in defense, industrial, and test environments. Our configurator can help you find the right microwave cable assembly for your needs.

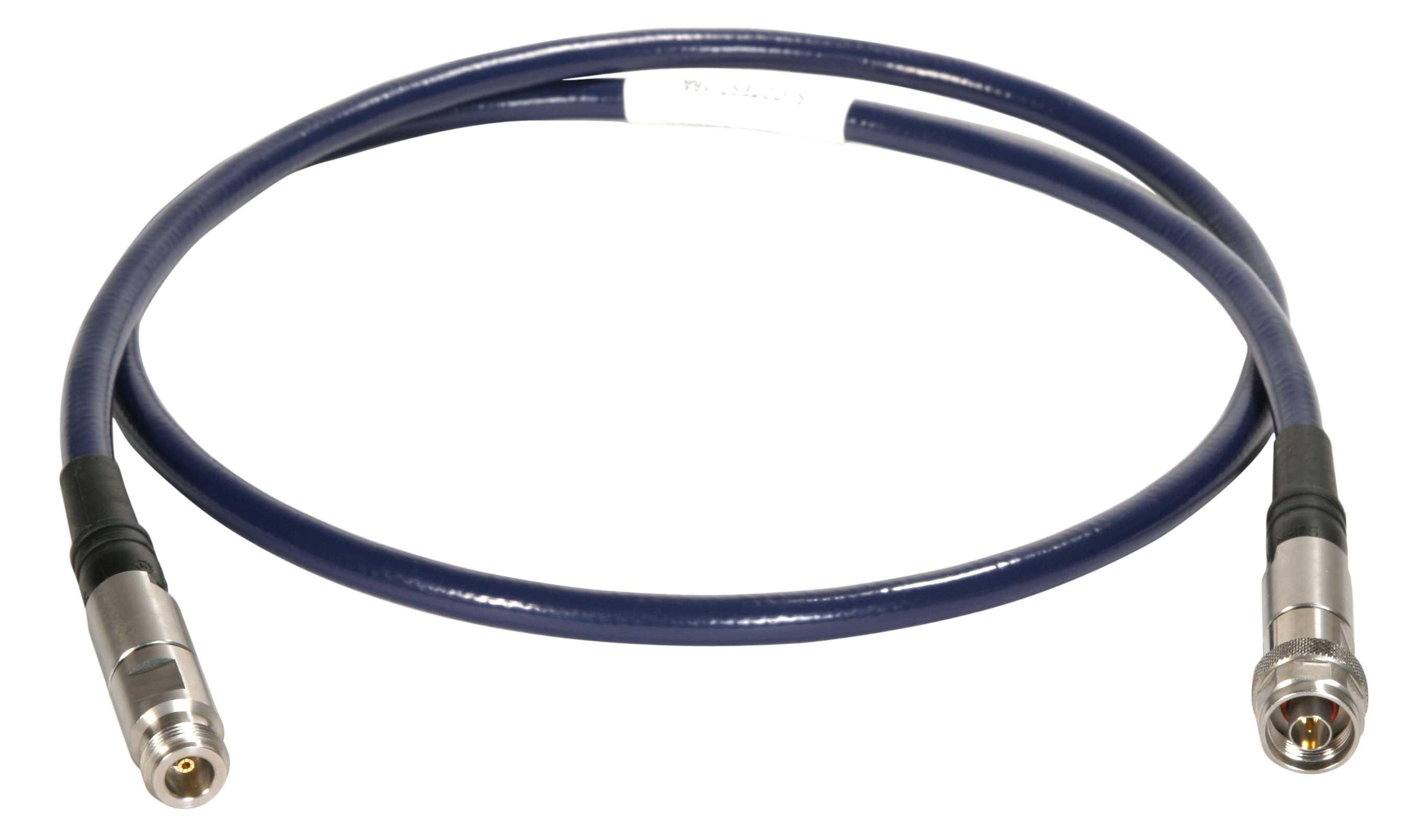

Sucotest 26/Sucotest 40 microwave cable assemblies are high-frequency, low-loss cables which are five shielded for superior RF isolation. The internal stainless steel outer braid provides higher pull strength and less weight than RG style cables. Nomex and polyolefin jackets are also available.

• Applicable in frequencies up to 26/40 GHz
• Amplitude stability: < 0.1 dB at 26.5 GHz for 200 flexes 180° in one plane around a 2-inch radius, 0.2 dB with 600 flexes
• Five shields for super RF shielding (–120 dB)
• Steel outer shield for increased pull strength

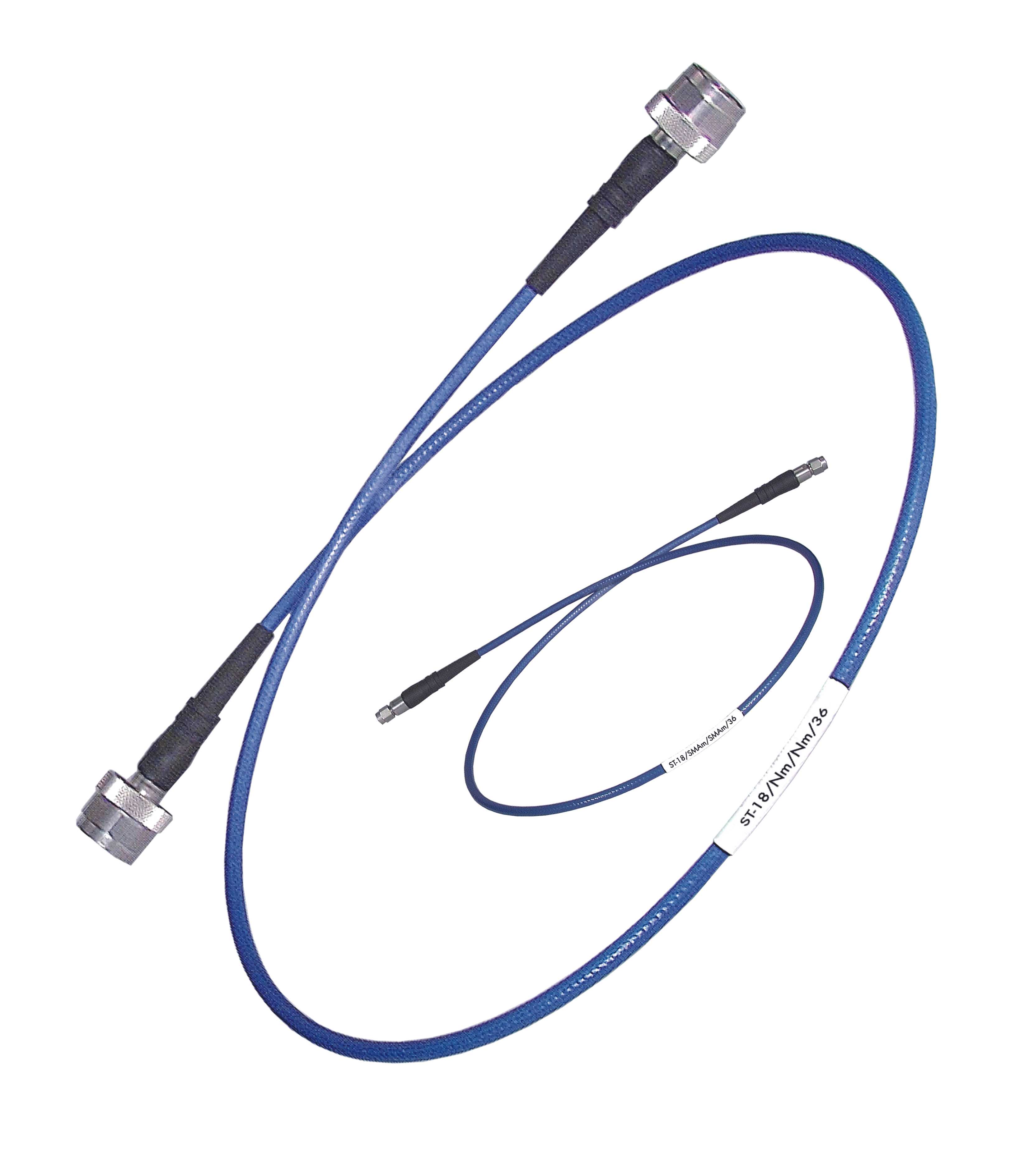

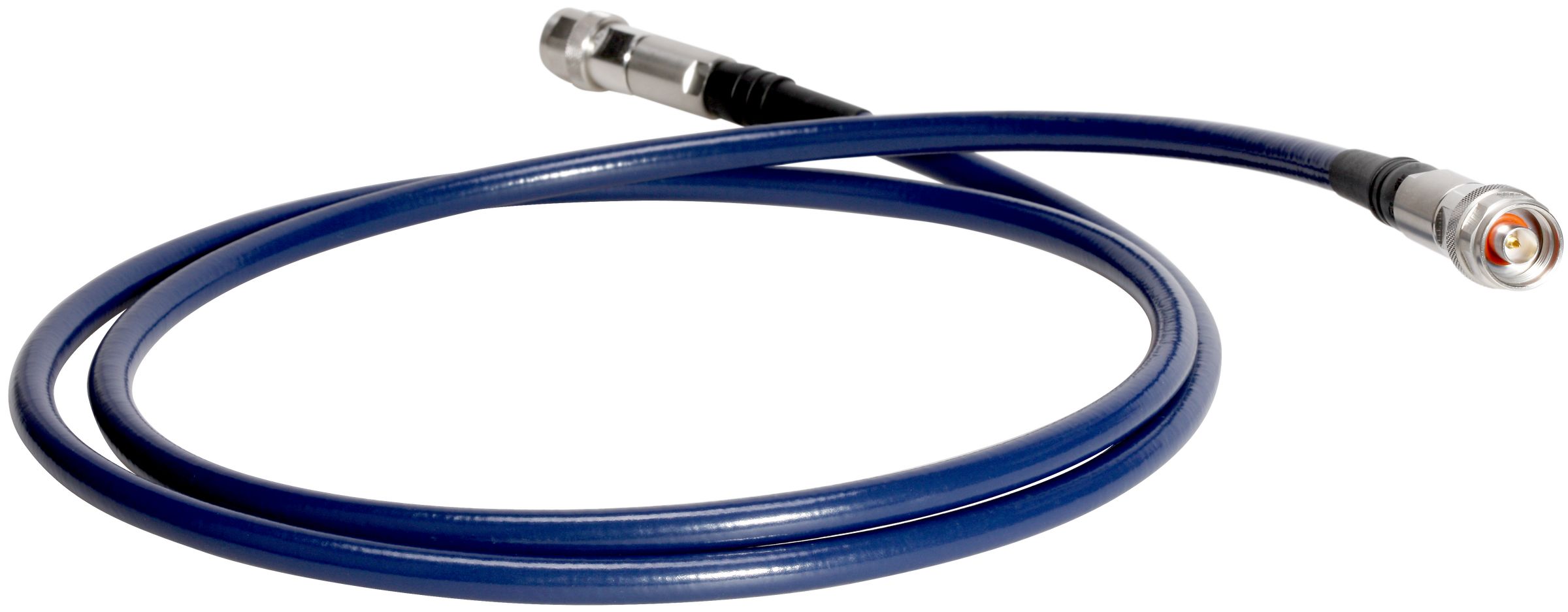

Sucotest 18 test assemblies are suitable for daily use in component and assembly shops, test labs, and high speed digital testing applications of up to 18 GHz. Sucotest 18A armored test assemblies are ideal for testing wireless communication infrastructures and outdoor use.

• Excellent insertion and return loss
• Exceptional loss stability
