RG400 LSFH type, 50 Ohm, 6 GHz, 85°C, ø5 mm, LSFH Mantel

Produktnummer 85087104

Identifier ENVIROFLEX_B400

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Halogenfreie Alternative zu RG-Kabeln
Geringe Rauchentwicklung
Ozonbeständigkeit

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser
Innenleiter	Kupfer, versilbert	Strand-19	1 mm
Dielektrikum	SPE (geschäumtes Polyethylen)		3 mm
Äusserer Leiter	Kupfer, verzinnt	Geflecht	3.4 mm
Äusserer Leiter	Kupfer, verzinnt		4 mm
Mantel	LSFH (modifiziertes Polyethylen)	RAL 9005 - bk	5 mm +/- 0.1 mm

Elektrische Daten

Mechanische Daten

Umweltdaten

RG400 LSFH type, 50 Ohm, 6 GHz, 85°C, ø5 mm, LSFH Mantel

Related products

Suitable connectors

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)

22645621

24_BMA-50-3-5/119_NE

Einzelverpackung

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

22645615

14_BMA-50-3-3/199_NE

Einzelverpackung

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

85006605

14_BMA-50-3-32/133_NH

Großverpackung

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

22645619

25_BMA-50-3-3/119_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540192

16_BNC-50-3-7/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22650222

16_BNC-50-3-7/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84013233

16_BNC-50-3-25/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84057664

16_BNC-50-3-26/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540385

24_BNC-50-3-5/133_NE

-

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22658913

24_BNC-50-3-25/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22660362

24_BNC-50-3-25/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22540263

21_BNC-50-3-12/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540045

11_BNC-50-3-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540054

11_BNC-50-3-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22645522

11_BNC-50-3-52/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22652006

11_BNC-50-3-52/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057580

11_BNC-50-3-88/133_NE

Einzelverpackung

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable jack (male)

84139569

21_C-U50-3-8/133_NE

Einzelverpackung

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

85065880

11_C-U50-3-15/133_NE

Einzelverpackung

COAXIAL CONNECTOR, H4, 50 Ohm, Straight bulkhead cable jack (female)

22541784

24_H4-50-3-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable jack (female)

22541756

21_H4-50-3-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable plug (male)

22541732

11_H4-50-3-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22642847

16_N-50-3-27/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22650168

16_N-50-3-27/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651610

16_N-50-3-103/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22660010

16_N-50-3-227/133_NH

Großverpackung

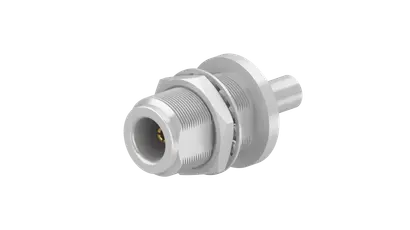

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22542295

24_N-50-3-10/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22658845

24_N-50-3-26/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

23000532

24_N-50-3-26/133_NE

Einzelverpackung

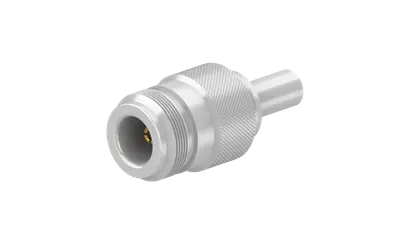

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22543504

21_N-50-3-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22651795

21_N-50-3-12/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

84112638

21_N-50-3-20/133_NH

Großverpackung

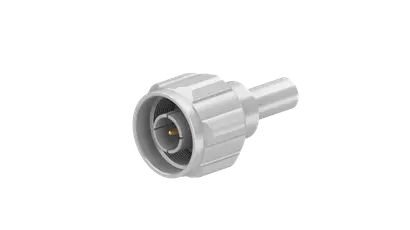

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542069

11_N-50-3-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542073

11_N-50-3-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22642009

11_N-50-3-54/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22648829

11_N-50-3-31/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22649844

11_N-50-3-5/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22650658

11_N-50-3-31/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84092122

11_N-50-3-59/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22542342

25_N-50-3-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22649913

25_N-50-3-20/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23017686

16_QMA-50-3-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23017687

16_QMA-50-3-1/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

23017822

24_QMA-50-3-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

23017823

24_QMA-50-3-1/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017697

11_QMA-50-3-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

23017698

11_QMA-50-3-1/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

23033267

16_QN-50-3-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

84016729

24_QN-50-3-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

84016563

11_QN-50-3-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22642660

16_SMA-50-3-56/199_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22649909

16_SMA-50-3-146/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22650545

16_SMA-50-3-106/111_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22650546

16_SMA-50-3-106/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22651733

16_SMA-50-3-146/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84117811

16_SMA-50-3-14/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84117815

16_SMA-R50-3-16/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84130711

16_SMA-50-3-14/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84130713

16_SMA-R50-3-16/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

84040101

24_SMA-50-3-53/19-_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22640082

21_SMA-50-3-6/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22543647

11_SMA-50-3-56/199_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22640049

11_SMA-50-3-6/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22640053

11_SMA-50-3-10/111_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22641200

11_SMA-50-3-46/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22648300

11_SMA-50-3-56/199_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22650739

11_SMA-50-3-6/111_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22651819

11_SMA-50-3-46/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84117821

11_SMA-50-3-236/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84130702

11_SMA-50-3-236/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

84117825

11_SMA-R50-3-238/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

84130704

11_SMA-R50-3-238/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMB, 50 Ohm, Straight cable plug (male)

84061409

11_SMB-50-3-3/133_NH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

22642360

16_TNC-50-3-21/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

22658174

16_TNC-50-3-111/133_UH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

23001717

16_TNC-50-3-111/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

84012481

16_TNC-50-3-28/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

22640523

21_TNC-50-3-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84018747

21_TNC-50-3-4/133_NH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84119364

21_TNC-50-3-17/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

22543475

11_TNC-50-3-6/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

22640798

11_TNC-50-3-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

22660229

11_TNC-50-3-5/133_NH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

23010015

11_TNC-50-3-117/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

22643707

25_TNC-50-3-9/133_NE

Einzelverpackung

Taper sleeve 4.85 - 5.5 mm

22544408

78_Z-0-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544409

78_Z-8-3-4

Missing product short name

Taper sleeve 4.85 - 5.5 mm

22544410

78_Z-7-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544411

78_Z-6-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544412

78_Z-5-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544413

78_Z-4-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544414

78_Z-3-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544415

78_Z-2-3-4

-

Taper sleeve 4.85 - 5.5 mm

22544416

78_Z-1-3-4

Missing product short name

Taper sleeve 4.85 - 5.5 mm

22544508

78_Z-9-3-4

-

Product code	Enviroflex_B400
Kabelfamilie	Enviroflex: LSFH-Alternativen zu RG-Kabeln
Nur als Assembly erhältlich	Nein
Kabelgruppe	U11

Impedanz	50 Ω +/-2Ω
Betriebsfrequenz	≤ 6 GHz
Capacitance	94.5 pF/m
Velocity of signal propagation	71 %
Signal delay	4.7 ns/m
Wirksamkeit des Screenings	45 dB at frequency 1 GHz ... 6GHz
Insulation resistance	10000000 MΩ*m
Inner conductor resistance	31 Ω/km
Widerstand des Aussenleiters	12 Ω/km
Operating Voltage (at sea level)	≤ 2.5 kVrms
Prüfspannung (50 Hz/1 min)	≤ 5 kVrms

Weight	approx. 43 g/m
Biegeradius statisch	≥ 20 mm
Wiederholter Biegeradius	40 mm
Biegeradius dynamisch	< 40 mm

Betriebstemperatur	-40 °C ... 85 °C
Einbautemperatur	-20 °C ... 60 °C
Flammenausbreitungsstandard	IEC 60332-1
Brandeigenschaften	frei von Halogenen
Cold bend test	MIL-C-17 § 4.8.19

Relevante Inhalte

Produkte

RG400 LSFH type, 50 Ohm, 6 GHz, 85°C, ø5 mm, LSFH Mantel

Spezifikationen

Related products

Suitable connectors

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable jack (female)

22645621

24_BMA-50-3-5/119_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

22645615

14_BMA-50-3-3/199_NE

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight bulkhead cable plug (male)

85006605

14_BMA-50-3-32/133_NH

COAXIAL CONNECTOR, BMA, 50 Ohm, Straight panel cable jack (female), flange mount

22645619

25_BMA-50-3-3/119_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22540192

16_BNC-50-3-7/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

22650222

16_BNC-50-3-7/133_NH

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84013233

16_BNC-50-3-25/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84057664

16_BNC-50-3-26/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22540385

24_BNC-50-3-5/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22658913

24_BNC-50-3-25/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

22660362

24_BNC-50-3-25/133_NH

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable jack (female)

22540263

21_BNC-50-3-12/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540045

11_BNC-50-3-1/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540054

11_BNC-50-3-5/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22645522

11_BNC-50-3-52/133_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22652006

11_BNC-50-3-52/133_NH

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057580

11_BNC-50-3-88/133_NE

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable jack (male)

84139569

21_C-U50-3-8/133_NE

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

85065880

11_C-U50-3-15/133_NE

COAXIAL CONNECTOR, H4, 50 Ohm, Straight bulkhead cable jack (female)

22541784

24_H4-50-3-1/133_NE

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable jack (female)

22541756

21_H4-50-3-1/133_NE

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable plug (male)

22541732

11_H4-50-3-1/133_NE

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22642847

16_N-50-3-27/133_NE

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22650168

16_N-50-3-27/133_NH

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651610
