Low-loss, 50 Ohm, 7.5 GHz, 85°C, ø12.9 mm, LSFH Mantel

Low-loss, 50 Ohm, 7.5 GHz, 85°C, ø12.9 mm, LSFH Mantel

Produktnummer 84013441

Identifier SX_10162_B-01

Variation: -

Hauptmerkmale

Wesentliche Eigenschaften

Flexible RF cable für low loss applications
Custom alternative to standard SPUMA cables
Flammhemmend

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser	Cable jacket print
Innenleiter	Aluminium / Kupfer	Kabel	3.8 mm
Dielektrikum	SPEX (Vernetzter Schaumstoff PE)		9.9 mm
Äusserer Leiter	Copper	Längsfolie, 100%	10 mm
Äusserer Leiter	Copper	Geflecht, 80%	10.8 mm
Mantel	LSFH (modifiziertes Polyethylen)	RAL 9005 - bk	12.9 mm +/- 0.2 mm

Elektrische Daten

Impedanz	50 Ω +/-2Ω
Betriebsfrequenz	≤ 7.5 GHz
Capacitance	79 pF/m
Velocity of signal propagation	85.7 %
Signal delay	3.89 ns/m
Wirksamkeit des Screenings	90 dB at frequency 0.001 GHz ... 7.5GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	2.45 Ω/km
Widerstand des Aussenleiters	4 Ω/km
Operating Voltage (at sea level)	≤ 1.7 kVrms
Phase vs temperature	-40 ... 70 °C
Prüfspannung (50 Hz/1 min)	≤ 3.4 kVrms

Mechanische Daten

Umweltdaten

Related products

Suitable connectors

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable jack (female)

23002535

21_716-50-10-1/003_-Z

Großverpackung

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

23002520

11_716-50-10-3/003_-Z

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

23002552

16_N-50-10-1/103_UV

Großverpackung

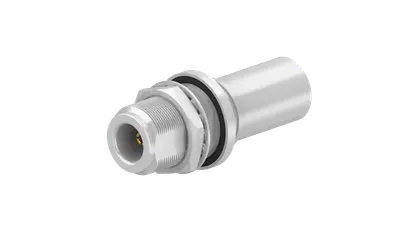

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

84022517

24_N-50-10-1/133_NE

Einzelverpackung

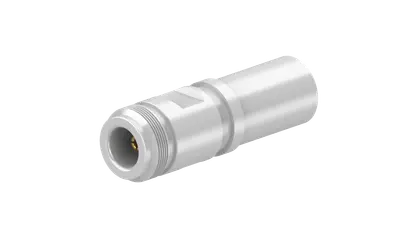

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

23003072

21_N-50-10-1/133_UF

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

23002543

11_N-50-10-5/103_UV

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84114821

11_N-50-10-5/133_UV

-

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84130592

21_TNC-50-10-1/133_NF

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

84130387

11_TNC-50-10-1/133_NF

Großverpackung
