75 Ohm, 2 GHz, 85°C, ø6.7 mm, PVC Mantel

Produktnummer 22510168

Identifier G_04233_D

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Custom version of standard RG cable
Geeignet für den Einsatz in Anwendungen bis 2 GHz
75 Ohm charakteristische Impedanz

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser	Cable jacket print
Innenleiter	Stahl, verkupfert	Kabel, 97%	0.58 mm - 0.15 mm
Dielektrikum	PE (Polyethylen)		3.64 mm
Äusserer Leiter	Kupfer, versilbert	Geflecht, 97%	4.45 mm
Äusserer Leiter	Kupfer, versilbert	Geflecht, 97%	5.2 mm
Mantel	PVC (Polyvinylchlorid)	RAL 9005 - bk	6.7 mm +/- 0.15 mm

Elektrische Daten

Mechanische Daten

Umweltdaten

Materialkonformität ROHS

Materialkonformität REACH

75 Ohm, 2 GHz, 85°C, ø6.7 mm, PVC Mantel

Related products

Suitable connectors

COAXIAL CONNECTOR, BNC, 75 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, BNC, 75 Ohm, Right angle cable plug (male)

22540842

16_BNC-75-4-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight bulkhead cable jack (female)

22540932

24_BNC-75-4-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight cable plug (male)

22540765

11_BNC-75-4-6/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight cable plug (male)

22540766

11_BNC-75-4-6/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight cable plug (male)

84112535

11_BNC-75-4-40/133_NE

Einzelverpackung

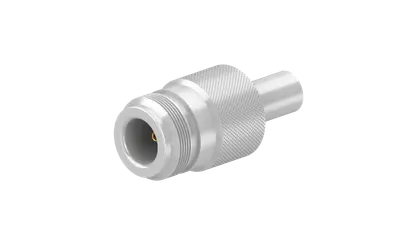

COAXIAL CONNECTOR, N, 75 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, N, 75 Ohm, Straight cable jack (female)

22641156

21_N-75-4-9/133_NE

Einzelverpackung

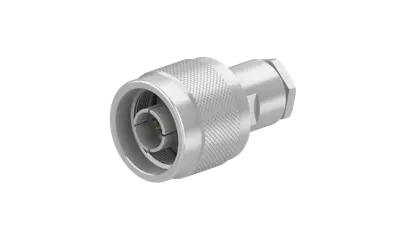

COAXIAL CONNECTOR, N, 75 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 75 Ohm, Straight cable plug (male)

22542475

11_N-75-4-6/133_NE

Einzelverpackung

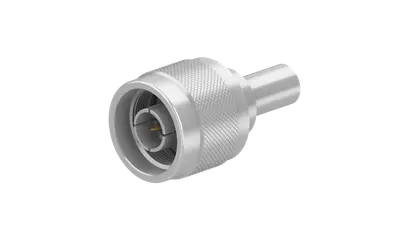

COAXIAL CONNECTOR, N, 75 Ohm, Straight cable plug (male)
