Low-loss, 50 Ohm, 3 GHz, 85°C, ø10.8 mm, LSFH Mantel

Produktnummer 22511767

Identifier S_07262_BD

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Alternative to standard SPUMA cables
Low loss
Geringe Rauchentwicklung
Flammhemmend

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser	Cable jacket print
Innenleiter	Kupfer, versilbert	Litze-07	2.82 mm - 0.15 mm
Dielektrikum	SPE (geschäumtes Polyethylen)		7.38 mm
Äusserer Leiter	Kupfer, versilbert	Geflecht, 96%	8 mm
Äusserer Leiter	Copper	Gewickelte Folie, 100%	8.1 mm
Äusserer Leiter	Kupfer, verzinnt	Geflecht, 93%	9 mm
Mantel	LSFH (modifiziertes Polyethylen)	RAL 9005 - bk	10.8 mm +/- 0.15 mm

Elektrische Daten

Impedanz	50 Ω +/-1Ω
Betriebsfrequenz	≤ 3 GHz
Capacitance	82 pF/m
Velocity of signal propagation	82 %
Signal delay	4.1 ns/m
Wirksamkeit des Screenings	90 dB at frequency 3GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	1.95 Ω/km
Widerstand des Aussenleiters	0.85 Ω/km
Operating Voltage (at sea level)	≤ 1.05 kVrms
Phase vs temperature	2370 ppm within the temperature range -25 ... 85 °C
Phaase vs bending	0.4 °/GHz
Prüfspannung (50 Hz/1 min)	≤ 2.1 kVrms

Mechanische Daten

Umweltdaten

Low-loss, 50 Ohm, 3 GHz, 85°C, ø10.8 mm, LSFH Mantel

Related products

Suitable connectors

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

22649421

16_716-50-7-11/003_-E

Einzelverpackung

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

22646908

11_716-50-7-14/003_-E

Einzelverpackung

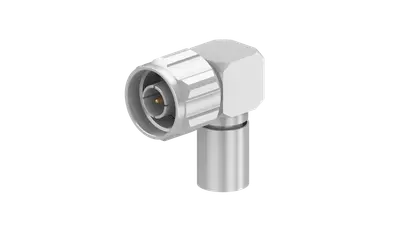

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22649428

16_N-50-7-23/133_UE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651794

16_N-50-7-22/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84041899

16_N-50-7-49/133_UE

Einzelverpackung

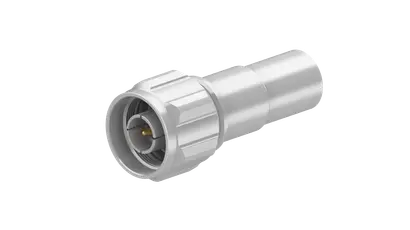

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22649628

11_N-50-7-56/133_UE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22652111

11_N-50-7-49/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84041925

11_N-50-7-81/133_UE

Einzelverpackung

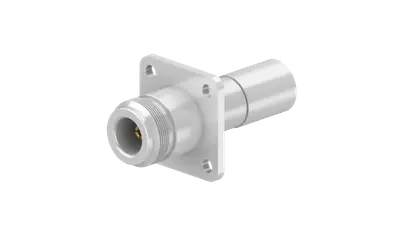

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

22649426

25_N-50-7-22/133_UE

Einzelverpackung

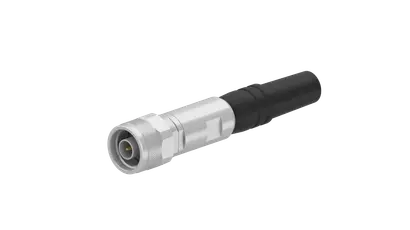

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)
