Low-loss, 50 Ohm, 6 GHz, 105°C, ø5.7 mm, RADOX® Mantel

Produktnummer 22511926

Identifier SX_04272_D-02

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Flexible RF cable für low loss applications
Halogenfreie Alternative zu SPUMA-Standardkabeln
Geringe Rauchentwicklung
Ozonbeständigkeit

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser
Innenleiter	Kupfer, versilbert	Kabel	1.4 mm
Dielektrikum	SPEX (Vernetzter Schaumstoff PE)		3.8 mm
Äusserer Leiter	Kupfer, versilbert	Geflecht, 97%	4.2 mm
Äusserer Leiter	Kupfer, versilbert	Geflecht, 93%	4.7 mm
Mantel	RADOX	RAL 9005 - bk	5.7 mm +/- 0.15 mm

Elektrische Daten

Mechanische Daten

Umweltdaten

Materialkonformität ROHS

Low-loss, 50 Ohm, 6 GHz, 105°C, ø5.7 mm, RADOX® Mantel

Related products

Suitable connectors

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

85071464

16_BNC-50-4-16/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22649863

11_BNC-50-4-53/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84057622

11_BNC-50-4-54/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84068115

11_BNC-50-4-29/133_NE

Einzelverpackung

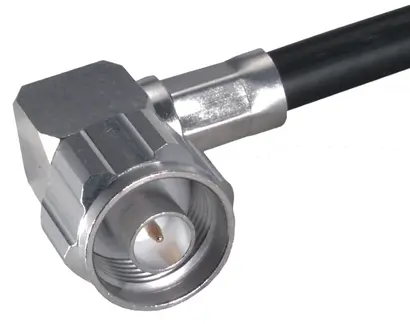

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22645021

16_N-50-4-53/199_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651019

16_N-50-4-114/133_UH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

23015067

16_N-50-4-14/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84023979

16_N-50-4-115/133_UH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22644946

24_N-50-4-53/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22651789

24_N-50-4-17/133_UE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

22658836

21_N-50-4-76/133_UH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22645935

11_N-50-4-55/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22651679

11_N-50-4-160/133_UH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22652069

11_N-50-4-63/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22658708

11_N-50-4-63/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84026255

11_N-50-4-10/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85010249

11_N-50-4-21/133_NI

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

23003442

25_N-50-4-6/133_UH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23012849

16_QMA-50-4-1/133_NH

Missing product short name

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23041666

16_QMA-50-4-2/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84023140

16_QMA-W50-4-5/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84075864

16_QMA-W50-4-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight bulkhead cable jack (female)

84013207

24_QMA-50-4-1/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable jack (female)

84096247

21_QMA-50-4-2/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84000234

11_QMA-50-4-2/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84023153

11_QMA-W50-4-3/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84075865

11_QMA-W50-4-3/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

85123642

11_QMA-50-4-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

23033078

16_QN-50-4-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84013859

16_QN-50-4-1/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84038217

16_QN-50-4-3/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

23040776

24_QN-50-4-1/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23040813

11_QN-50-4-1/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

22644654

16_SMA-50-4-55/199_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

23012056

16_SMA-50-4-160/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84117813

16_SMA-50-4-50/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84130714

16_SMA-50-4-50/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22644409

21_SMA-50-4-52/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

22644342

11_SMA-50-4-53/139_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

23012055

11_SMA-50-4-61/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

23015123

11_SMA-50-4-63/139_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84112519

11_SMA-50-4-50/133_NP

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84130705

11_SMA-50-4-50/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

84027004

11_SMA-R50-4-97/133_NH

Großverpackung

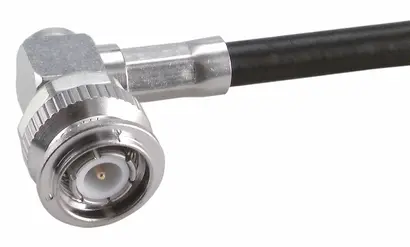

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

22658175

16_TNC-50-4-115/133_NH-1

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

23001718

16_TNC-50-4-115/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

22644938

24_TNC-50-4-52/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

22644434

11_TNC-50-4-52/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

22658177

11_TNC-50-4-115/133_UH

Großverpackung

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

84031534

11_TNC-R50-4-76/133_NE

Einzelverpackung

Product code	SX_04272_D-02
Kabelfamilie	SX: Verlustarme RF-Kabel mit vernetztem Schaumstoff-PE-Dielektrikum
Nur als Assembly erhältlich	Nein
Kabelgruppe	S16

Impedanz	50 Ω +/-2Ω
Betriebsfrequenz	≤ 6 GHz
Capacitance	81.6 pF/m
Velocity of signal propagation	82 %
Signal delay	4.08 ns/m
Wirksamkeit des Screenings	80 dB at frequency 1 GHz ... 6GHz
Insulation resistance	100000000 MΩ*m
Operating Voltage (at sea level)	≤ 0.5 kVrms
Prüfspannung (50 Hz/1 min)	≤ 1 kVrms

Weight	approx. 62 g/m
Biegeradius statisch	≥ 28 mm
Wiederholter Biegeradius	58 mm
Biegeradius dynamisch	< 85 mm

Betriebstemperatur	-40 °C ... 105 °C
Einbautemperatur	-20 °C ... 60 °C
Flammenausbreitungsstandard	IEC 60332-1 UL 1581 § 1080 (VW-1)
Brandeigenschaften	frei von Halogenen, acc. standard IEC 60754

Richtlinien	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption
