50 Ohm, 6 GHz, 200°C, ø5.4 mm, FEP Mantel

Produktnummer 84067680

Identifier KX_EN4604-010

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Flexibles Mikrowellenkabel
Hervorragende Leistung bis zu 6 GHz
2-teilige lötfreie Steckverbinder für einfache Montage und Mehrfachmontage im Feld

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser	Cable jacket print
Innenleiter	Kupfer, versilbert	Kabel	1.4 mm
Dielektrikum	PTFE (Polytetrafluorethylen)		4.12 mm
Äusserer Leiter	Kupfer, versilbert	Gewickelte Folie, 100%	4.28 mm
Äusserer Leiter	Kupfer, versilbert	Geflecht	4.9 mm
Mantel	FEP (Fluoriertes Ethylen-Propylen)	RAL 6025 - gr	5.4 mm

Elektrische Daten

Mechanische Daten

Umweltdaten

Materialkonformität ROHS

Materialkonformität REACH

50 Ohm, 6 GHz, 200°C, ø5.4 mm, FEP Mantel

Related products

Suitable connectors

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

85003121

16_BNC-50-4-15/122_NE

Einzelverpackung

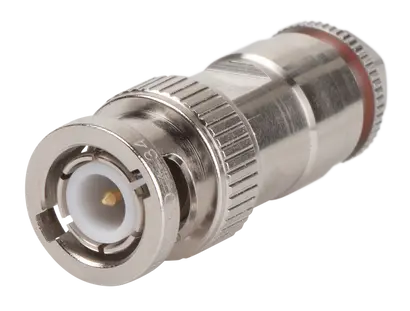

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

85003120

11_BNC-50-4-34/122_NE

Einzelverpackung

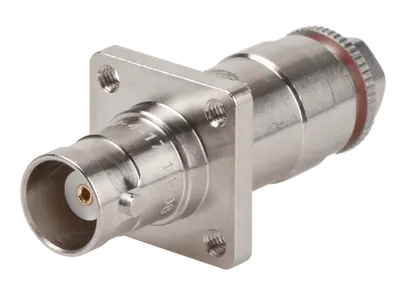

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight panel cable jack (female), flange mount

85003122

25_BNC-50-4-17/122_NE

Einzelverpackung

COAXIAL CONNECTOR, C, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, C, 50 Ohm, Right angle cable plug (male)

84114106

16_C-50-4-4/122_NE

Einzelverpackung

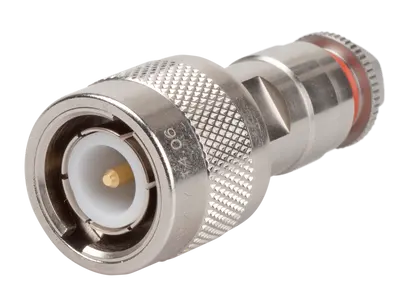

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

84120310

11_C-50-4-7/122_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85003118

16_N-50-4-15/122_NE

Einzelverpackung

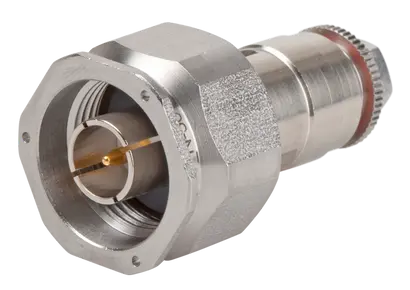

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85003117

11_N-50-4-20/122_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

85003119

25_N-50-4-9/122_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable jack (female)

84047839

26_SMA-50-4-1/199_-E

Einzelverpackung

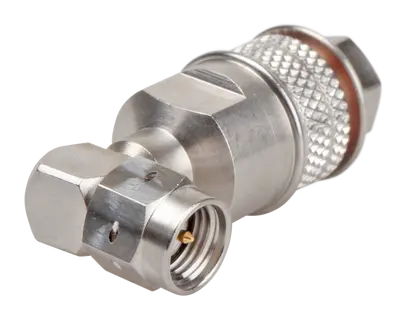

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84047837

16_SMA-50-4-164/199_-E

Einzelverpackung

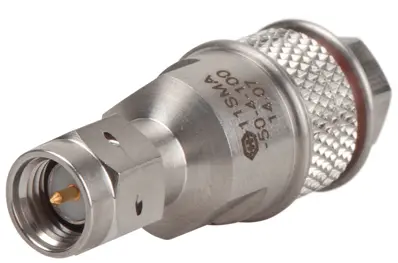

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

84047838

11_SMA-50-4-100/199_-E

Einzelverpackung

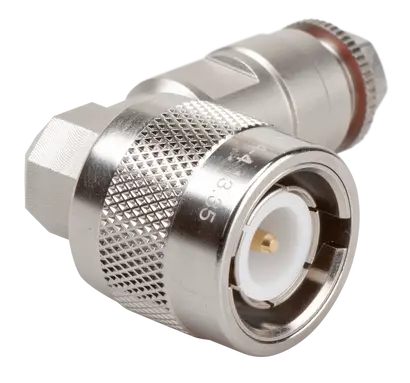

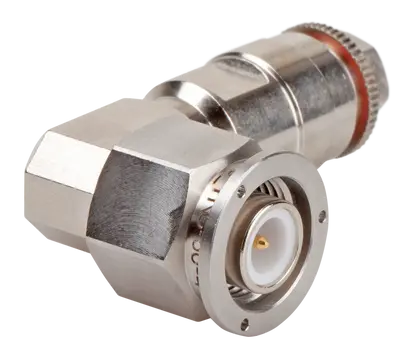

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

85003114

16_TNC-50-4-102/122_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

85003116

21_TNC-50-4-22/122_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

85003113

11_TNC-50-4-24/122_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

85003366

11_TNC-50-4-25/199_-E

Einzelverpackung

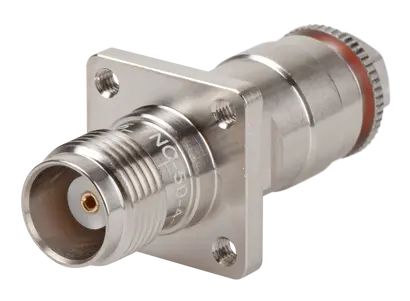

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

85003115

25_TNC-50-4-19/122_NE

Einzelverpackung
