Low-loss, 50 Ohm, 6 GHz, 85°C, ø4.95 mm, PE Mantel

Produktnummer 84151727

Identifier SPUMA_195

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Halogenfreies Kabel mit Standardabmessungen
Beständigkeit gegen Ozon, UV und Witterung

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser	Cable jacket print
Innenleiter	Copper	Kabel	0.94 mm
Dielektrikum	SPE (geschäumtes Polyethylen)		2.79 mm
Äusserer Leiter	Aluminium / PES	Längsfolie, 100%	2.95 mm
Äusserer Leiter	Kupfer, verzinnt	Geflecht, 89%	3.53 mm
Mantel	PE (Polyethylen)	RAL 9005 - bk	4.95 mm +/- 0.13 mm

Elektrische Daten

Impedanz	50 Ω +/-2Ω
Betriebsfrequenz	≤ 6 GHz
Capacitance	83 pF/m
Inductance	0.2 µH/m
Velocity of signal propagation	80 %
Signal delay	4.17 ns/m
Wirksamkeit des Screenings	90 dB at frequency 6GHz
Insulation resistance	100000000 MΩ*m
Inner conductor resistance	24.9 Ω/km
Inner conductor DC resistance at 300K	16.1 Ω/km
Widerstand des Aussenleiters	16.1 Ω/km
Operating Voltage (at sea level)	≤ 0.75 kVrms
Prüfspannung (50 Hz/1 min)	≤ 1.5 kVrms

Mechanische Daten

Umweltdaten

Materialkonformität ROHS

Materialkonformität REACH

Low-loss, 50 Ohm, 6 GHz, 85°C, ø4.95 mm, PE Mantel

Verfügbarkeiten

Produkt erhältlich bei:

HUBER+SUHNER

Lieferfrist 4 Wochen (ab Werk)

Distributor

FARNELL 4 Meter

RS COMP. 100 Meter

RICHARDSON RFPD mit Lieferfrist

MOUSER 16 Meter

RS AMERICAS mit Lieferfrist

DIGIKEY mit Lieferfrist

MASTER ELECTR. mit Lieferfrist

Related products

Geeignete Verbinder

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85069731

16_N-50-3-39/133_NH

Großverpackung

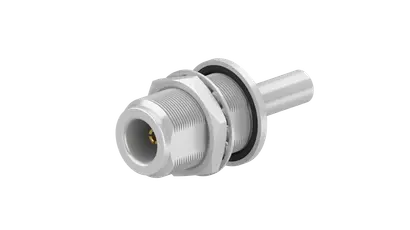

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)
