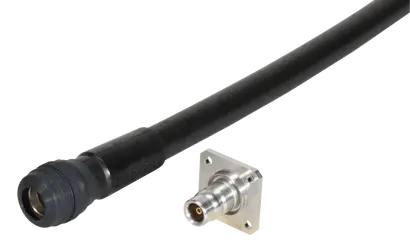

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.17 mm, LSFH Mantel

Produktnummer 85069656

Identifier SPUMA_240-FR-AM

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Halogenfreies Kabel mit Standardabmessungen
Beständigkeit gegen Ozon, UV und Witterung
Bus qualifiziert

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser	Cable jacket print
Innenleiter	Copper	Kabel	1.42 mm
Dielektrikum	SPE (geschäumtes Polyethylen)		3.82 mm
Äusserer Leiter	Aluminium / PES	Längsfolie, 100%	3.94 mm
Äusserer Leiter	Kupfer, verzinnt	Geflecht, 94%	4.52 mm
Mantel	LSFH (modifiziertes Polyethylen)	RAL 9005 - bk	6.17 mm +/- 0.1 mm

Elektrische Daten

Impedanz	50 Ω +/-2Ω
Betriebsfrequenz	≤ 6 GHz
Capacitance	78.9 pF/m
Inductance	0.2 µH/m
Velocity of signal propagation	82.6 %
Signal delay	4.05 ns/m
Wirksamkeit des Screenings	90 dB at frequency 6GHz
Insulation resistance	1000000 MΩ*m
Inner conductor resistance	10.89 Ω/km
Inner conductor DC resistance at 300K	9.35 Ω/km
Widerstand des Aussenleiters	9.35 Ω/km
Operating Voltage (at sea level)	≤ 0.9 kVrms
Prüfspannung (50 Hz/1 min)	≤ 1.5 kVrms

Mechanische Daten

Umweltdaten

Materialkonformität ROHS

Materialkonformität REACH

Low-loss, 50 Ohm, 6 GHz, 85°C, ø6.17 mm, LSFH Mantel

Verfügbarkeiten

Produkt erhältlich bei:

HUBER+SUHNER

Lieferfrist 10 Wochen (ab Werk)

Distributor

FARNELL mit Lieferfrist

RICHARDSON RFPD mit Lieferfrist

MOUSER mit Lieferfrist

RS AMERICAS mit Lieferfrist

DIGIKEY mit Lieferfrist

MASTER ELECTR. mit Lieferfrist

Related products

Geeignete Verbinder

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Straight cable plug (male)

85078855

11_4310-50-4-X1/033_-H

Großverpackung

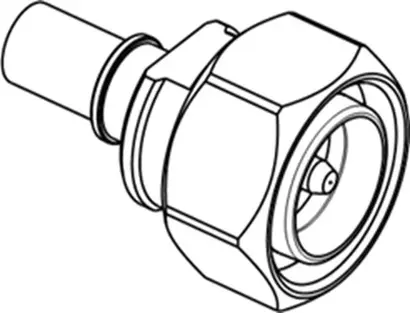

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

84098543

11_716-50-4-5/033_-Y

Tray Verpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

85071464

16_BNC-50-4-16/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight bulkhead cable jack (female)

85071247

24_BNC-50-4-10/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22660156

11_BNC-50-4-28/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84068115

11_BNC-50-4-29/133_NE

Einzelverpackung

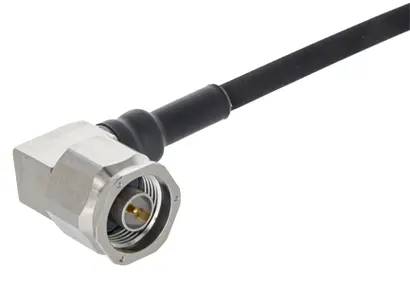

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84023979

16_N-50-4-115/133_UH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85157254

16_N-50-4-121/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85197051

16_N-50-4-121/122_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male), High salt mist resistant (SS316L)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male), High salt mist resistant (SS316L)

85169946

16_N-50-4-17/199_NE

Einzelverpackung

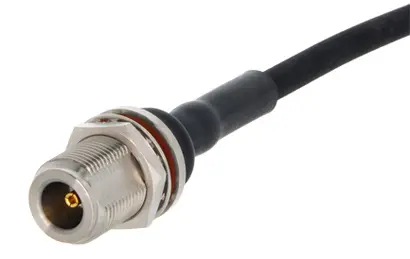

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85018527

24_N-50-4-10/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85196964

21_N-50-4-11/122_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female), High salt mist resistant (SS316L)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female), High salt mist resistant (SS316L)

85181786

24_N-50-4-21/199_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

84110983

21_N-50-4-6/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

85153529

21_N-50-4-11/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22660149

11_N-50-4-9/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84026255

11_N-50-4-10/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84110888

11_N-50-4-11/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85128376

11_N-50-4-72/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85197065

11_N-50-4-72/122_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

85127772

11_N-50-4-77/199_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

23041666

16_QMA-50-4-2/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84023140

16_QMA-W50-4-5/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

84075864

16_QMA-W50-4-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Right angle cable plug (male)

85123653

16_QMA-50-4-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable jack (female)

84096247

21_QMA-50-4-2/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84000234

11_QMA-50-4-2/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84023153

11_QMA-W50-4-3/133_NH

Großverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84075865

11_QMA-W50-4-3/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

85123642

11_QMA-50-4-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84038217

16_QN-50-4-3/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

23040776

24_QN-50-4-1/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23040813

11_QN-50-4-1/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

85069014

11_XQN-50-4-1/133_NE

Einzelverpackung

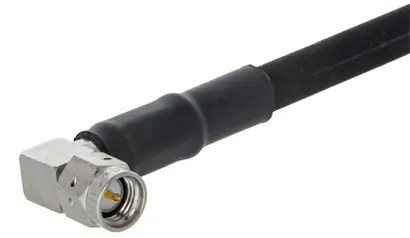

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

85018514

16_SMA-50-4-77/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male), High salt mist resistant (SS316L)

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male), High salt mist resistant (SS316L)

85168754

16_SMA-50-4-98/199_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable jack (female)

22644409

21_SMA-50-4-52/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

23015123

11_SMA-50-4-63/139_NH

Großverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)

85010193

11_SMA-50-4-77/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

85117843

11_SMA-50-4-102/199_NH

Großverpackung

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight bulkhead cable jack (female)

85165888

24_SMA-R50-4-44/133_NH

Großverpackung

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, SMA-reverse, 50 Ohm, Straight cable plug (male)

84027004

11_SMA-R50-4-97/133_NH

Großverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

85071590

16_TNC-50-4-22/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male), High salt mist resistant (SS316L)

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male), High salt mist resistant (SS316L)

85118610

16_TNC-50-4-83/199_NH

Großverpackung

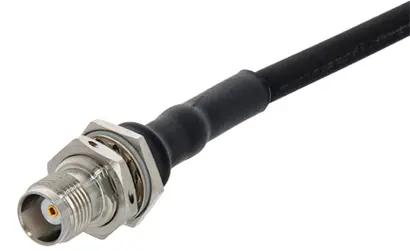

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female)

85010236

24_TNC-50-4-77/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female), High salt mist resistant (SS316L)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight bulkhead cable jack (female), High salt mist resistant (SS316L)

85180287

24_TNC-50-4-79/199_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

84119563

21_TNC-50-4-16/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable jack (female)

85159704

21_TNC-50-4-18/133_NE

Einzelverpackung

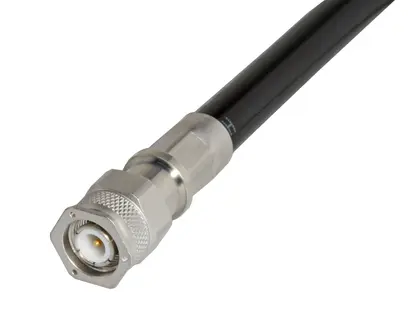

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

85010169

11_TNC-50-4-77/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

85071433

11_TNC-50-4-78/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

85117847

11_TNC-50-4-79/199_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight panel cable jack (female), flange mount

85252826

25_TNC-50-4-20/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight bulkhead cable jack (female)

84032154

24_TNC-R50-4-60/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, TNC-reverse, 50 Ohm, Straight cable plug (male)

84031534

11_TNC-R50-4-76/133_NE

Einzelverpackung

COAXIAL CONNECTOR, UHF, other Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, UHF, other Ohm, Straight cable plug (male)

84327884

11_UHF-0-4-19/033_-E

Einzelverpackung
