Low-loss, 50 Ohm, 8 GHz, 85°C, ø10.25 mm, LSFH Mantel

Produktnummer 85089191

Identifier SPUMA_400-RS-FR

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Halogenfreies Kabel mit Standardabmessungen
Geringe Rauchentwicklung
Ozonbeständigkeit
RS - Rotary Swaged centre conductor
Railway qualified

Nutzungsmöglichkeiten

Eisenbahn

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser
Innenleiter	Copper	Litze, Rotary swaged	2.74 mm
Dielektrikum	SPE (geschäumtes Polyethylen)		7.24 mm
Äusserer Leiter	Aluminium / PES	Längsfolie, 100%	7.4 mm
Äusserer Leiter	Kupfer, verzinnt	Geflecht, 91%	8.15 mm
Mantel	TPU (Urethan-TPE)	RAL 9005 - bk	10.25 mm +/- 0.1 mm

Elektrische Daten

Mechanische Daten

Umweltdaten

Materialkonformität ROHS

Materialkonformität REACH

Low-loss, 50 Ohm, 8 GHz, 85°C, ø10.25 mm, LSFH Mantel

Related products

Suitable connectors

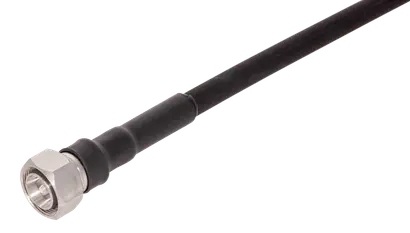

COAXIAL CONNECTOR, 4.3-10, 50 Ohm, Straight cable plug (male)

85141072

11_4310-50-7-X2/033_-E

Einzelverpackung

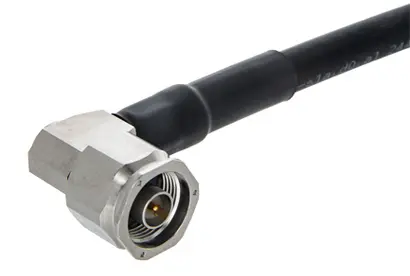

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

23025134

16_716-50-7-15/033_-E

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

85071432

16_BNC-50-7-9/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

85071256

11_BNC-50-7-13/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84076005

16_N-50-7-77/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84078884

16_N-50-7-77/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

85014128

16_N-50-7-53/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male), High salt mist resistant (SS316L)

85172143

16_N-50-7-55/199_NE

Einzelverpackung

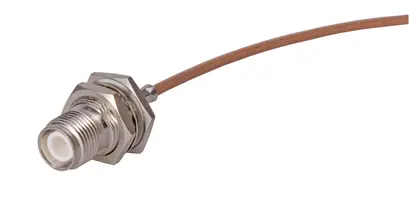

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

84000974

24_N-50-7-31/133_NY

Tray Verpackung

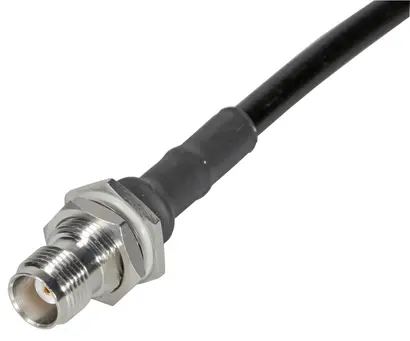

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85124004

24_N-50-7-34/133_NY

Tray Verpackung

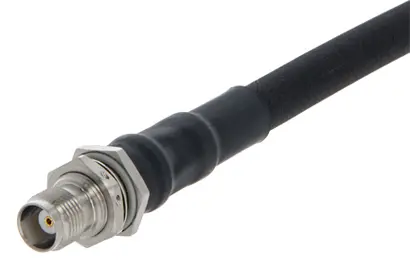

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female), High salt mist resistant (SS316L)

85182486

24_N-50-7-36/199_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable jack (female)

84119763

21_N-50-7-32/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22660143

11_N-50-7-69/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

85092396

11_N-50-7-69/133_NH

Großverpackung

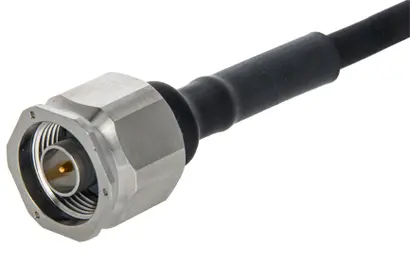

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

85168370

11_N-50-7-90/199_NE

Einzelverpackung

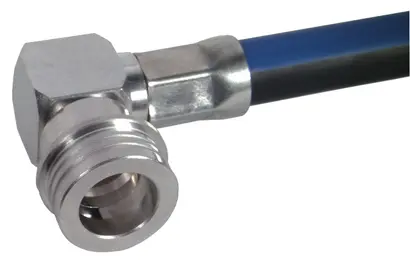

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84022186

16_QN-50-7-5/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

84078879

16_QN-50-7-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

84039869

24_QN-50-7-5/133_NH

Großverpackung

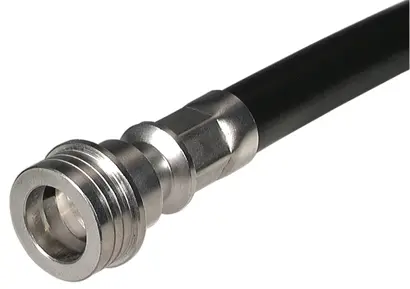

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

84022686

11_QN-50-7-8/133_NH

Großverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

84078850

11_QN-50-7-8/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

85018517

16_SMA-50-7-1/133_NE

Einzelverpackung

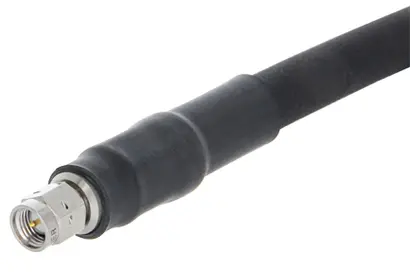

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male), High salt mist resistant (SS316L)

85167341

11_SMA-50-7-2/199_NE

Einzelverpackung

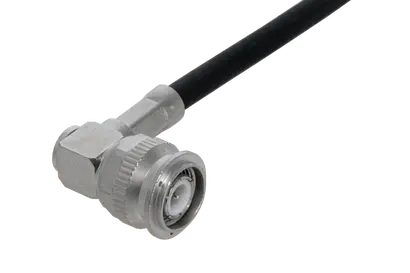

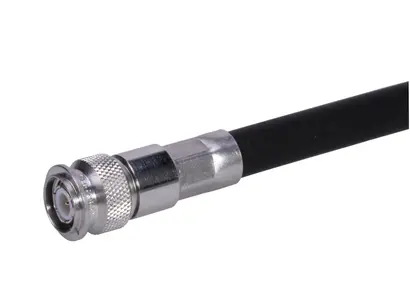

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)
