RG393, 50 Ohm, 6 GHz, 200°C, ø9.9 mm, FEP Mantel

Produktnummer 22511430

Identifier RG_393_/U

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

According to RG cable standard
Hervorragende RF-Performance für Präzisionsanwendungen
Geeignet für den Einsatz in Anwendungen bis 6 GHz
Erweiterter Temperaturbereich

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser	Cable jacket print
Innenleiter	Kupfer, versilbert	Litze-07	2.46 mm
Dielektrikum	PFA (Perfluoralkoxy)		7.25 mm
Äusserer Leiter	Kupfer, versilbert	Geflecht, 92%	8 mm
Äusserer Leiter	Kupfer, versilbert	Geflecht, 94%	8.75 mm
Mantel	FEP (Fluoriertes Ethylen-Propylen)	RAL 8015 - br	9.9 mm +/- 0.25 mm

Elektrische Daten

Mechanische Daten

Umweltdaten

Materialkonformität ROHS

Materialkonformität REACH

RG393, 50 Ohm, 6 GHz, 200°C, ø9.9 mm, FEP Mantel

Related products

Suitable connectors

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Right angle cable plug (male)

22658839

16_716-50-7-10/003_-E

Einzelverpackung

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight cable plug (male)

22651493

11_716-50-7-18/003_-E

Einzelverpackung

COAXIAL CONNECTOR, 7/16, 50 Ohm, Straight panel cable jack (female), flange mount

22646459

25_716-50-7-9/000_ME

Einzelverpackung

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable jack (female)

22543427

21_C-50-7-3/122_NE

Einzelverpackung

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable jack (male)

85028904

21_C-U50-7-9/133_NE

Einzelverpackung

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, C, 50 Ohm, Straight cable plug (male)

22541137

11_C-50-7-6/133_NE

Einzelverpackung

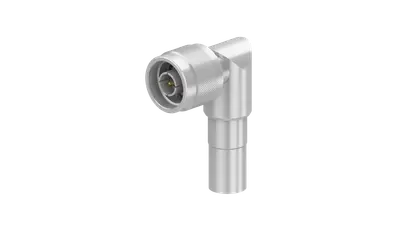

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22642849

16_N-50-7-31/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22651441

16_N-50-7-31/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

22652040

16_N-50-7-28/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

22649912

24_N-50-7-24/133_NE

Einzelverpackung

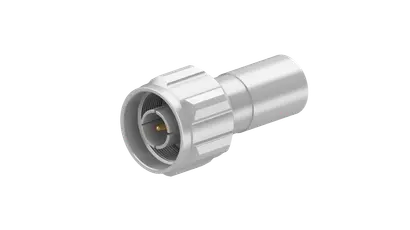

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22542117

11_N-50-7-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22648490

11_N-50-7-5/133_NH

Großverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

22651793

11_N-50-7-61/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male), lead free material

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male), lead free material

85239448

11_N-50-7-93/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, QN, 50 Ohm, Right angle cable plug (male)

23032410

16_QN-50-7-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

COAXIAL CONNECTOR, QN, 50 Ohm, Straight bulkhead cable jack (female)

23033403

24_QN-50-7-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, QN, 50 Ohm, Straight cable plug (male)

23033395

11_QN-50-7-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Right angle cable plug (male)

22651587

16_TNC-50-7-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

COAXIAL CONNECTOR, TNC, 50 Ohm, Straight cable plug (male)

22640466

11_TNC-50-7-2/133_NE

Einzelverpackung
