RG59 LSFH, 75 Ohm, 1 GHz, 105°C, ø6.1 mm, RADOX® Mantel

Produktnummer 23029791

Identifier GX_04273-12

Variation -

Hauptmerkmale

Wesentliche Eigenschaften

Halogenfreie Alternativ zu RG_59
Äußerst flexibel
Geringe Rauchentwicklung
Ozonbeständigkeit
75 Ohm charakteristische Impedanz

Spezifikationen

Konstruktion

Komponente	Material	Detail	Durchmesser
Innenleiter	Kupfer, verzinnt	Litze-07, 95 %, RAL 9005 - bk	0.66 mm - 0.2 mm
Dielektrikum	PEX (Vernetztes Polyethylen)		3.83 mm
Äusserer Leiter	Kupfer, verzinnt	Geflecht, 95%	4.45 mm
Mantel	RADOX	RAL 9005 - bk	6.1 mm +/- 0.2 mm

Elektrische Daten

Mechanische Daten

Umweltdaten

RG59 LSFH, 75 Ohm, 1 GHz, 105°C, ø6.1 mm, RADOX® Mantel

Related products

Suitable connectors

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22540115

11_BNC-50-4-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

22648238

11_BNC-50-4-4/133_NH

Großverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Right angle cable plug (male)

22540836

16_BNC-75-4-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Right angle cable plug (male)

22540840

16_BNC-75-4-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight bulkhead cable jack (female)

22540930

24_BNC-75-4-3/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight cable jack (female)

22540872

21_BNC-75-4-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight cable plug (male)

22540758

11_BNC-75-4-3/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight cable plug (male)

22540761

11_BNC-75-4-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, BNC, 75 Ohm, Straight cable plug (male)

22544846

11_BNC-75-4-4/133_NH

Großverpackung

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable plug (male)

22541742

11_H4-50-4-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, H4, 50 Ohm, Straight cable plug (male)

22543809

11_H4-50-4-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 75 Ohm, Straight bulkhead cable jack (female)

22543628

24_N-75-4-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 75 Ohm, Straight cable jack (female)

22640810

21_N-75-4-8/133_NE

Einzelverpackung

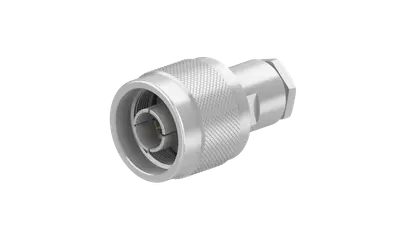

COAXIAL CONNECTOR, N, 75 Ohm, Straight cable plug (male)

22542467

11_N-75-4-3/133_NE

Einzelverpackung

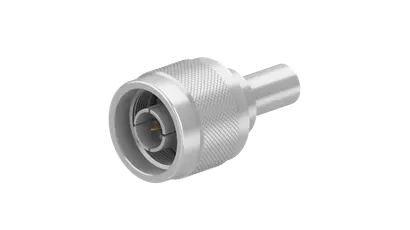

COAXIAL CONNECTOR, N, 75 Ohm, Straight cable plug (male)

22542475

11_N-75-4-6/133_NE

Einzelverpackung

COAXIAL CONNECTOR, N, 75 Ohm, Straight cable plug (male)

22542477

11_N-75-4-8/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SHV, 50 Ohm, Right angle cable plug (male)

23008948

16_SHV-50-4-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight bulkhead cable jack (female)

22544592

24_SHV-50-4-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable jack (female)

22542001

21_SHV-50-4-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable plug (male)

22541992

11_SHV-50-4-1/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable plug (male)

22541994

11_SHV-50-4-5/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable plug (male)

22541996

11_SHV-50-4-10/133_NE

Einzelverpackung

COAXIAL CONNECTOR, SHV, 50 Ohm, Straight cable plug (male)

23013593

11_SHV-50-4-4/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 75 Ohm, Right angle cable plug (male)

22641402

16_TNC-75-4-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 75 Ohm, Straight bulkhead cable jack (female)

22544140

24_TNC-75-4-8/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 75 Ohm, Straight cable plug (male)

22543477

11_TNC-75-4-2/133_NE

Einzelverpackung

COAXIAL CONNECTOR, TNC, 75 Ohm, Straight cable plug (male)

22543478

11_TNC-75-4-4/133_NE

Einzelverpackung

Konische Hülse

22544427

78_Z-0-4-4

-

Konische Hülse

22544428

78_Z-9-4-4

-

Konische Hülse

22544429

78_Z-8-4-4

-

Konische Hülse

22544430

78_Z-7-4-4

-

Konische Hülse

22544431

78_Z-6-4-4

-

Konische Hülse

22544432

78_Z-5-4-4

-

Konische Hülse

22544433

78_Z-4-4-4

-

Konische Hülse

22544434

78_Z-3-4-4

-

Konische Hülse

22544435

78_Z-2-4-4

-

Konische Hülse

22544436

78_Z-1-4-4

-

Product code	GX_04273-12
Kabelfamilie	GX: RF-Kabel mit vernetztem PE-Dielektrikum
Nur als Assembly erhältlich	Nein
Kabelgruppe	U16

Impedanz	75 Ω +/-3Ω
Betriebsfrequenz	≤ 1 GHz
Capacitance	67 pF/m
Velocity of signal propagation	66 %
Signal delay	5.05 ns/m
Wirksamkeit des Screenings	40 dB at frequency 0.05 GHz ... 1GHz
Insulation resistance	100000000 MΩ*m
Operating Voltage (at sea level)	≤ 3 kVrms
Prüfspannung (50 Hz/1 min)	≤ 5 kVrms

Weight	approx. 57 g/m
Biegeradius statisch	≥ 35 mm
Biegeradius dynamisch	< 60 mm

Betriebstemperatur	-40 °C ... 105 °C
Einbautemperatur	-20 °C ... 60 °C
Flammenausbreitungsstandard	IEC 60332-1 EN 60332-1-2
Brandeigenschaften	frei von Halogenen, acc. standard IEC 60754
Rauch-Test	BS 6853 Annex D
Toxicity test	BS 6853 Annex B
