Achieve perfect ribbon splices with HUBER+SUHNER OptiRibbon cables

The first step in successful splicing begins with careful fiber handling. Lay the fibers cleanly and flat in the provided holder. Ensure the fibers are parallel to each other- crossed fibers at this stage will disrupt the entire splicing process. Double-check the fiber arrangement both vertically and horizontally before moving forward.

Next, you’ll need to insert the fiber holder into the thermal stripping tool. For the stripping process to go smoothly, ensure that both lids of the tool are firmly pressed together. A secure fit is crucial, as an improperly positioned holder or uneven pressure on the lids can displace the fibers, leading to incomplete or damaged stripping. Remember: a firm but not excessive press on the lids is key.

Once the stripping process is complete, don’t skip the cleaning stage. Regularly clean your stripping tool according to the manufacturer’s instructions to keep the process flawless. Similarly, clean the stripped fibers with isopropanol to remove any leftover stripping residues. This helps prevent any impurities from affecting the splice quality.

Before moving on, take a moment to recheck the fibers. After stripping, ensure the fibers are still parallel and undisturbed. Any misalignment here can throw off the entire splicing process, so it’s essential to catch these small errors early.

When cleaving the fibers, make sure they’re properly aligned within the cleaver. Crossed or misaligned fibers will cause cleaving problems, so it’s important that everything is positioned precisely. If the fibers are angled incorrectly in the holder, the cleaving process could deviate, so take care to ensure accuracy.

Once the fibers are cleaved, inspect them again for alignment. They should remain parallel, straight, and undisturbed in the holder. If any issues are detected, restart the process from the beginning to ensure the cleave is perfect.

Now, it’s time to load the fibers into the splicer. Position the fiber holder in the splicer’s V-grooves, making sure each fiber is securely seated. If a fiber isn’t sitting properly, gently adjust it with a cotton bud to ensure it’s in place. Correct positioning at this step is essential for a successful splice.

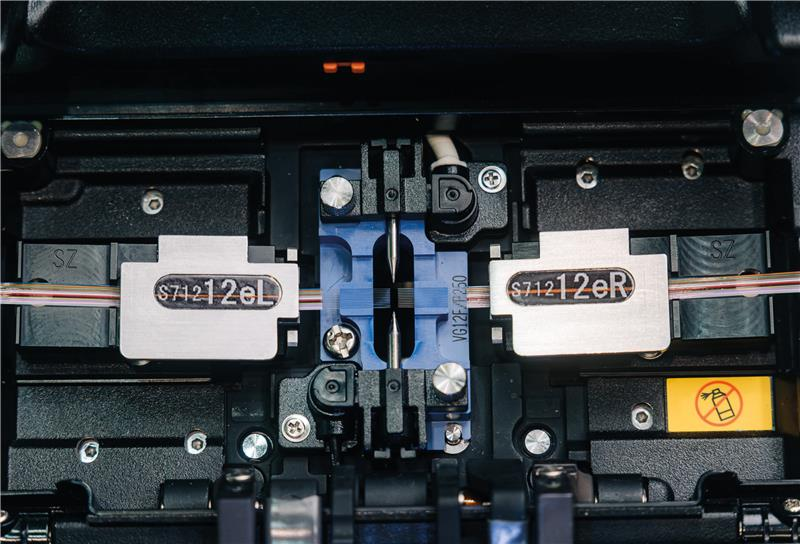

After placing the first holder, the next step is inserting the second one. Again, ensure all fibers are clean, parallel, and properly aligned in the V-grooves. Using an auxiliary tool can help secure the fibers in place and prevent them from shifting during the splicing process.

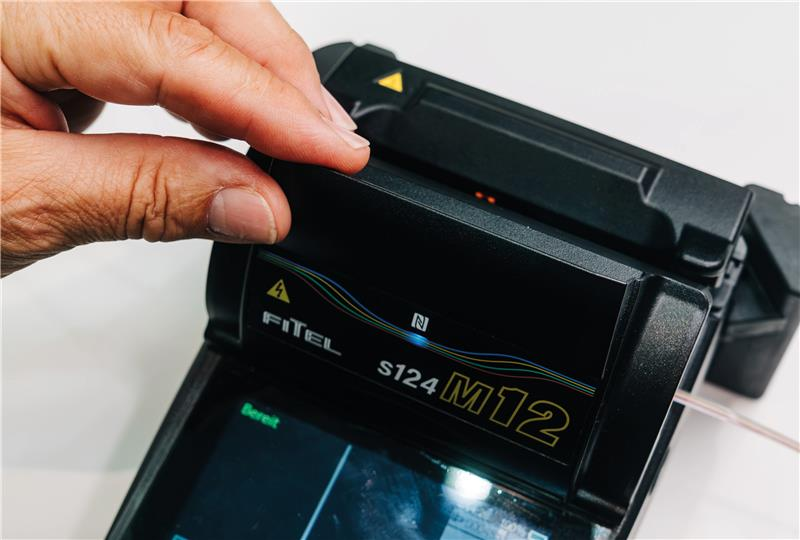

Even though many splicers feature automatic closing, it’s recommended to close the flap manually. This extra step ensures the fibers don’t jump out of the V-grooves when the flap is shut, preventing errors in the splicing process.

Once the flap is closed, check the splicer’s screen to confirm the fibers are properly aligned. The fibers must lie perfectly in the V-grooves to ensure an optimal splice. If everything looks good, proceed with the automated splicing process as per the machine’s instructions.

After the splicing process completes, it’s essential to verify the quality of the splice. Most modern splicing machines offer a real-time quality check, but it’s always a good idea to double-check the results manually to ensure everything is perfect.
