Optical Distribution Frames overview
HUBER+SUHNER offers a wide range of Optical Distribution Frames (ODF) to meet its customers' requirements. The comprehensive range includes Cable Distribution Racks (CDR) and Next Generation Racks (NGR), designed to fulfill the diverse needs of the typical data center operator. The modern cabinet range is based on anodized aluminum profiles (C-frame) with tool-free, quick-release doors and side panels.

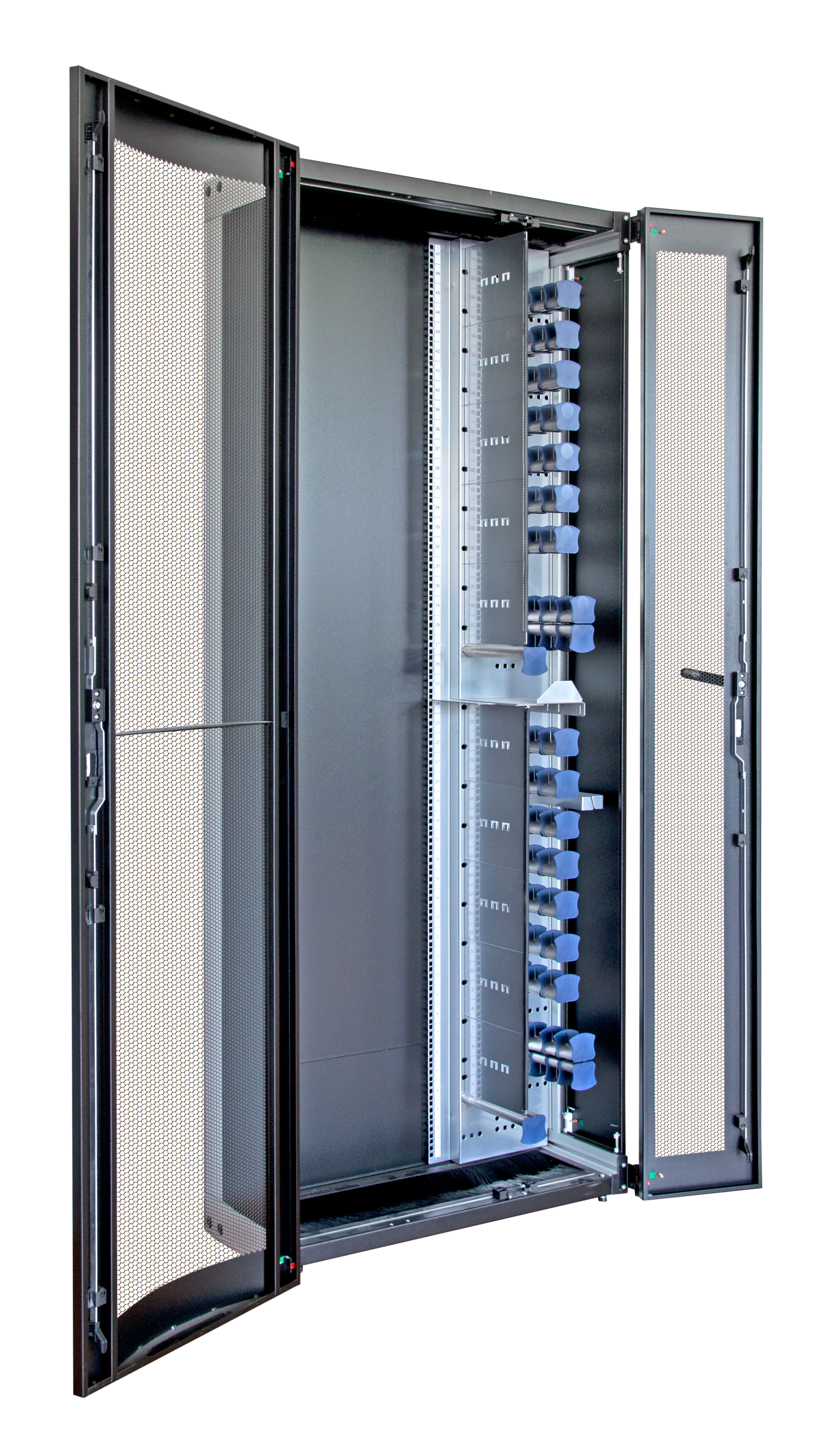

CDR Family
The Cable Distribution Rack (CDR) is a purpose-built, high-density fiber management rack that functions as a central cross-connect in the primary distribution area of data centers. With a footprint depth of only 300 mm, the CDR is fully modular and scalable.

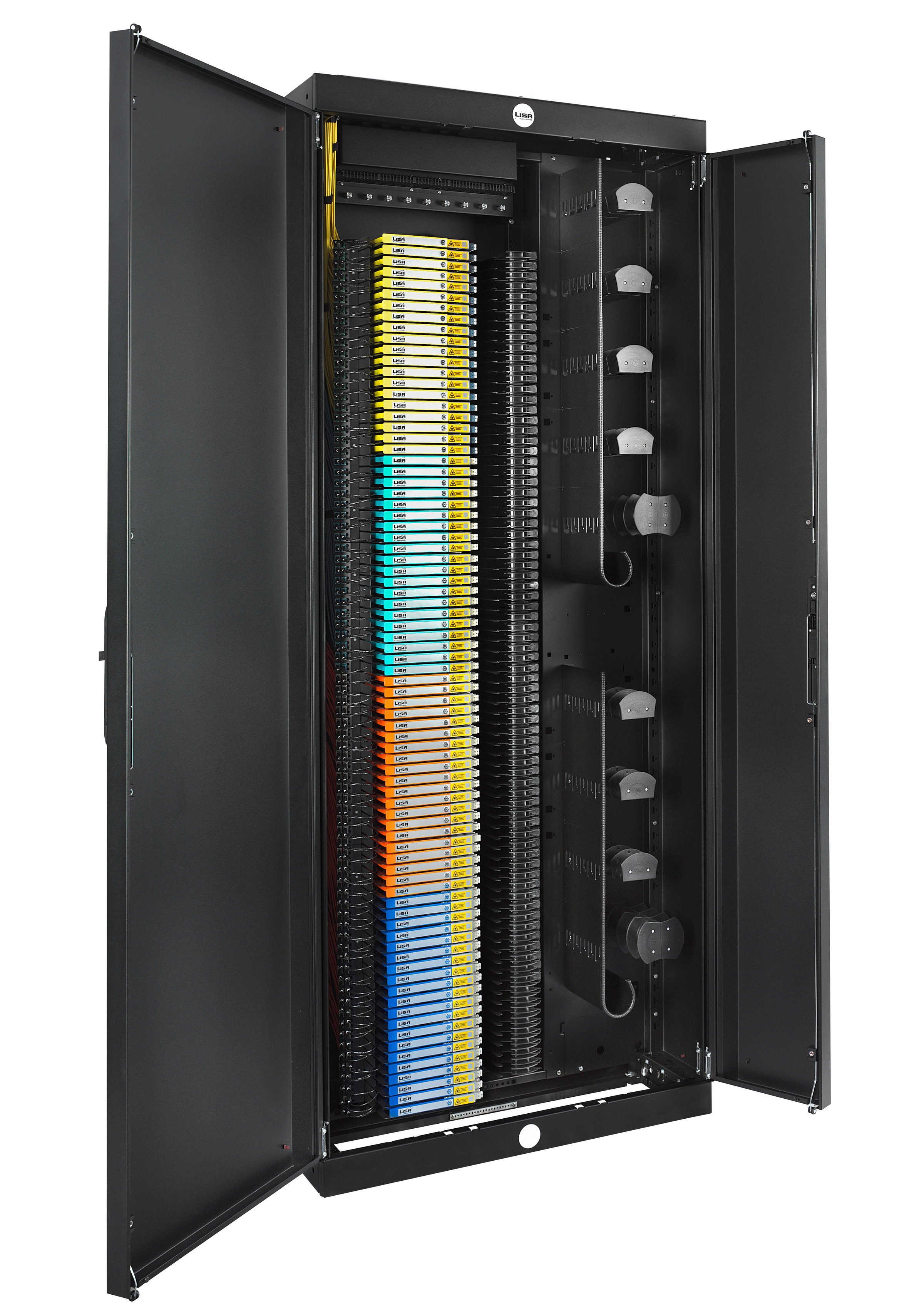

NGR Family
The NGR (New Generation Rack) is a purpose-built high-density fiber management rack which serves as a central cross-connect in the main distribution area of data centers. With a footprint depth of only 300 mm, the NGR is fully modular and scalable up to 1620 ports (3240 fibers) using LC connectivity and 1080 ports (25 920 fibers) using MTP® connectivity. Users benefit from a C-shaped construction that allows all internal sub-elements to be installed and accessed from the front side. This important feature means that NGRs can be placed back to back on a single floor tile, or alternatively against an unused wall or directly on the sides of existing enclosures and rows of racks for minimal space consumption.
