Small Cell / In-Building overview

SENCITY® Occhio MIMO DAS (Distributed Antenna System) , offers the operator 5G C Band coverage, a simple, time-saving installation process and an attractive industry preferred design with a small form factor. Thanks to its multiband capability between 1.7-6 GHz and 2x2/4x4 MIMO configurations it supports todays and future wireless applications.

• 4x4 MIMO (2x2)
• Multiband capability between 1.7-6 GHz
• Smart connect-system with a self-locking adapter and quick-lock feature
• Small and sleek design
• Antenna fulfils the multiple requirements of the 5G C Band standard and equally meets 4G applications
• Simplified and efficient installation process, giving customers the ability to mount the antenna safely and securely
• Unique combination of stylish design and innovative engineering which appeals to both interior designers and architects as well as ensuring a discreet appearance

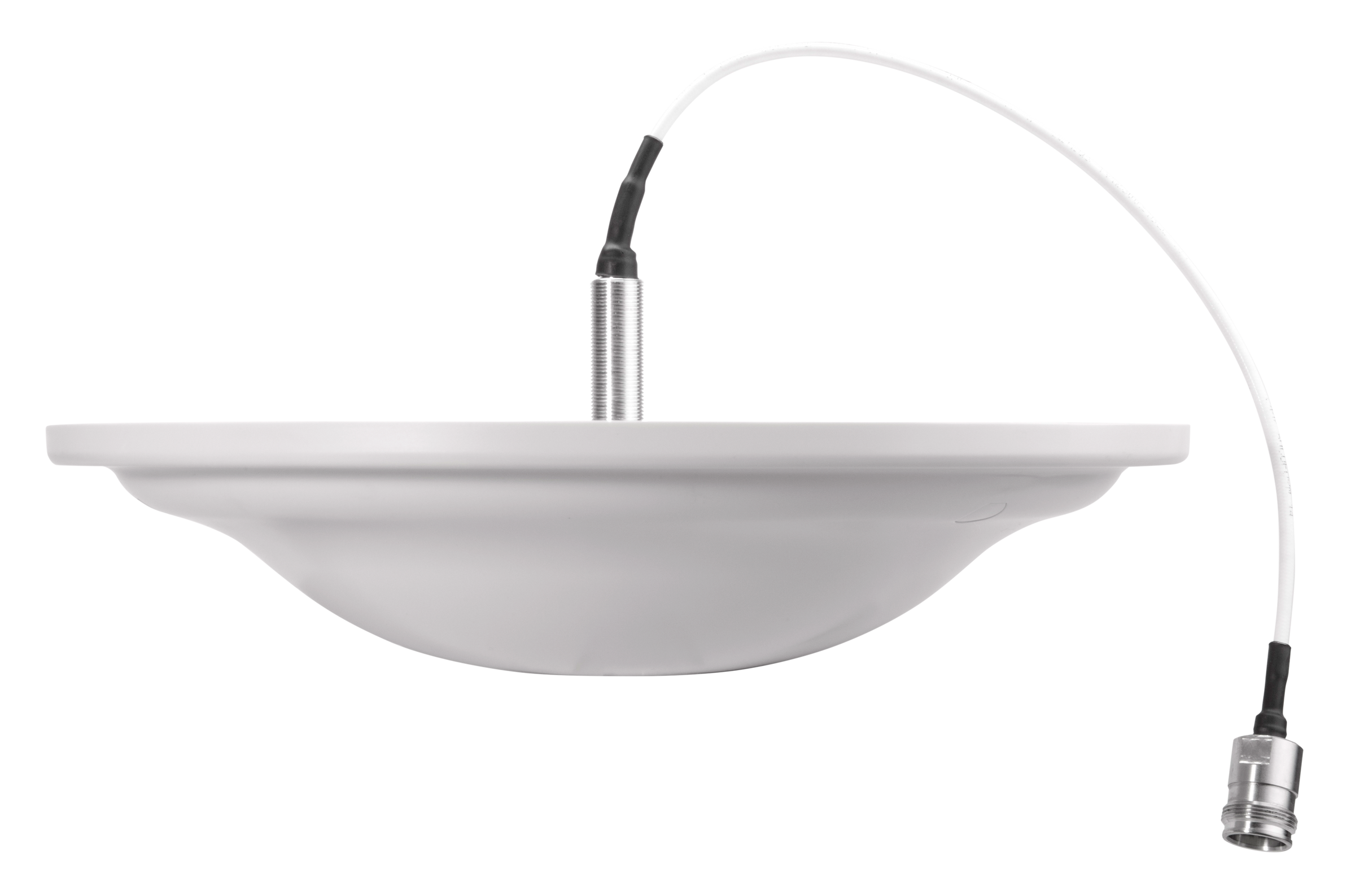

The SENCITY Occhio Plus ceiling mount omnidirectional antenna is for wireless operators and installers who are looking for high data throughput in 5G sub 6 GHz frequency range for in-building applications. The SENCITY Occhio Plus antenna reduces the installation time thanks to the smart connect-system with a self-locking adapter and quick-lock feature.

• Compact omnidirectional antenna with sleek design
• High performance
• Easy to install
• Low visible impact: The SENCITY Occhio Plus antenna offers a unique combination of contemporary design with innovative engineering ensuring discreet placement with low visible impact favored by interior designers and architects alike.
• High data throughput: The SENCITY Occhio Plus ceiling mount omnidirectional antenna offers a MIMO 4x4 and MIMO 2x2 configuration in 5G sub 6 GHz frequency range from 617 MHz to 6 GHz.
• Save time: Simple and efficient installation process time thanks to the smart connect-system with a self-locking adapter and quick-lock feature allowing installers to mount the antenna safely and securely.

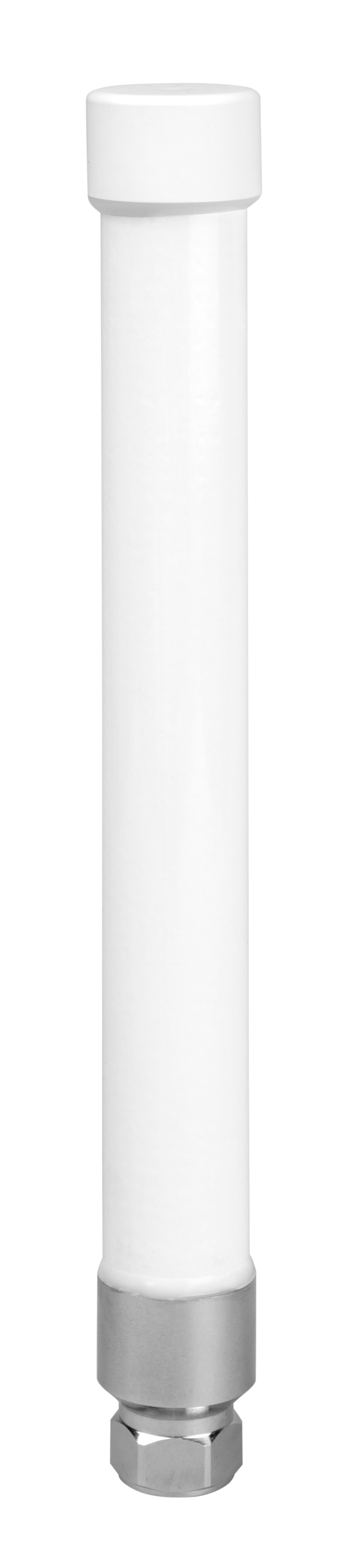

Omni-directional WiFi/multiband stick antenna for harsh industrial environment or DAS applications.

• Omni-directional antenna for outdoor and indoor applications
• Gain from 1.5 to 3 dBi
• Configuration SiSo
• PIM typical -145 dBc
• Norms: Industry EN 60068, Railway EN 50155, Railway EN 45545-2

Ultra-broadband antenna for indoor DAS.

• Omni-directional antenna for indoor DAS
• Gain from 2 to 8 dBi
• Configuration SiSo
• PIM typical -150 dBc

Omni-directional stick antenna for harsh industrial environment or DAS applications.

• Omni-directional antenna for outdoor applications
• Gain from 5 to 6 dBi
• Configuration SiSo
• PIM typical -145 dBc
• Norm: Industry EN 60068

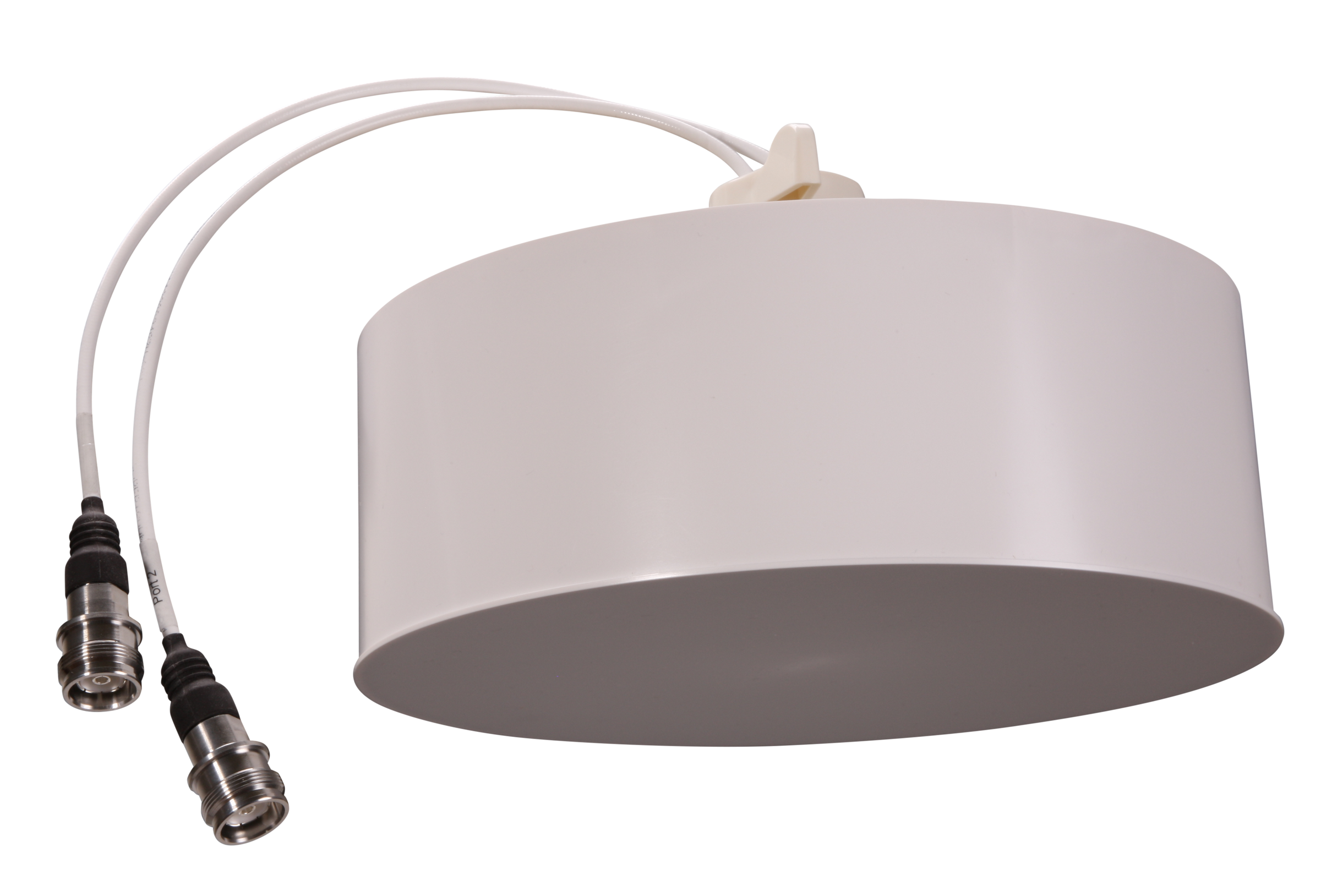

Omnidirectional MIMO 2x2 and SiSO antenna with attractive design and five different mounting options for indoor DAS.

• Indoor DAS omni-directional antenna for in-building coverage
• Gain from 2 to 7 dBi
• Configuration SiSO and MIMO 2x2
• PIM typical -155 dBc

Small form factor indoor DAS antenna for private and public security and LTE networks.

• Omni-directional indoor DAS antenna for in-building coverage
• Gain from 3.5 to 10 dBi
• Configuration SiSo
• PIM typical -150 dBc

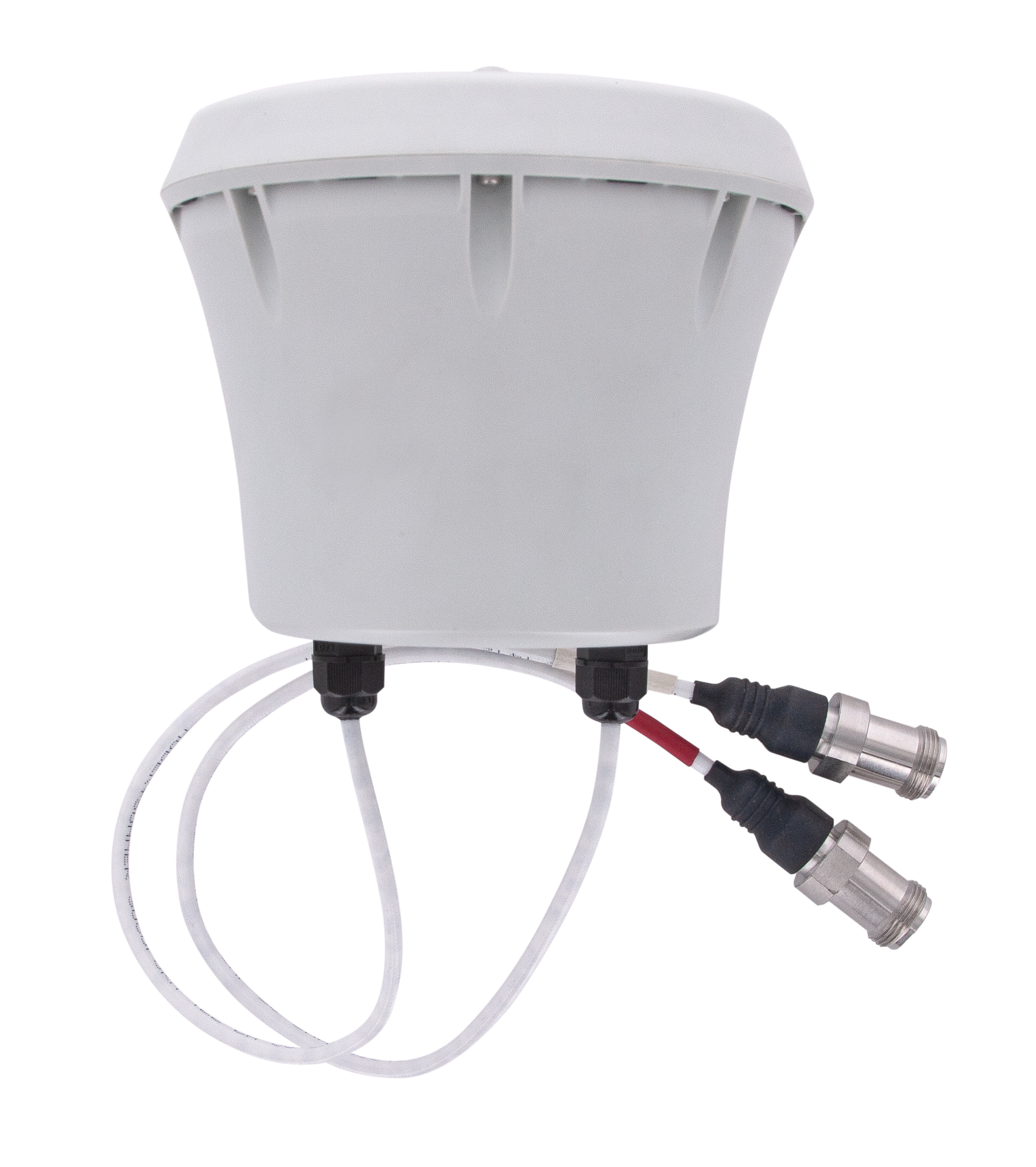

SENCITY® Urban 100 outdoor MIMO 2x2 round shaped antenna covers both the 4G and 5G high frequency ranges and is as compact as possible for installation in different types of street furniture such as bus shelters, poles or walls, depending on the location. Available into different models with omni directional and directional features.

• Frequency range 2500 to 2690 MHz / 3300to 4200 MHz
• PIM typical -150 dBc 2 x 20W
• Configuration MiMo 2x2
• IP66
• Dimensions Φ 117 x 96 mm (Φ 4.6 x 3.8 in)

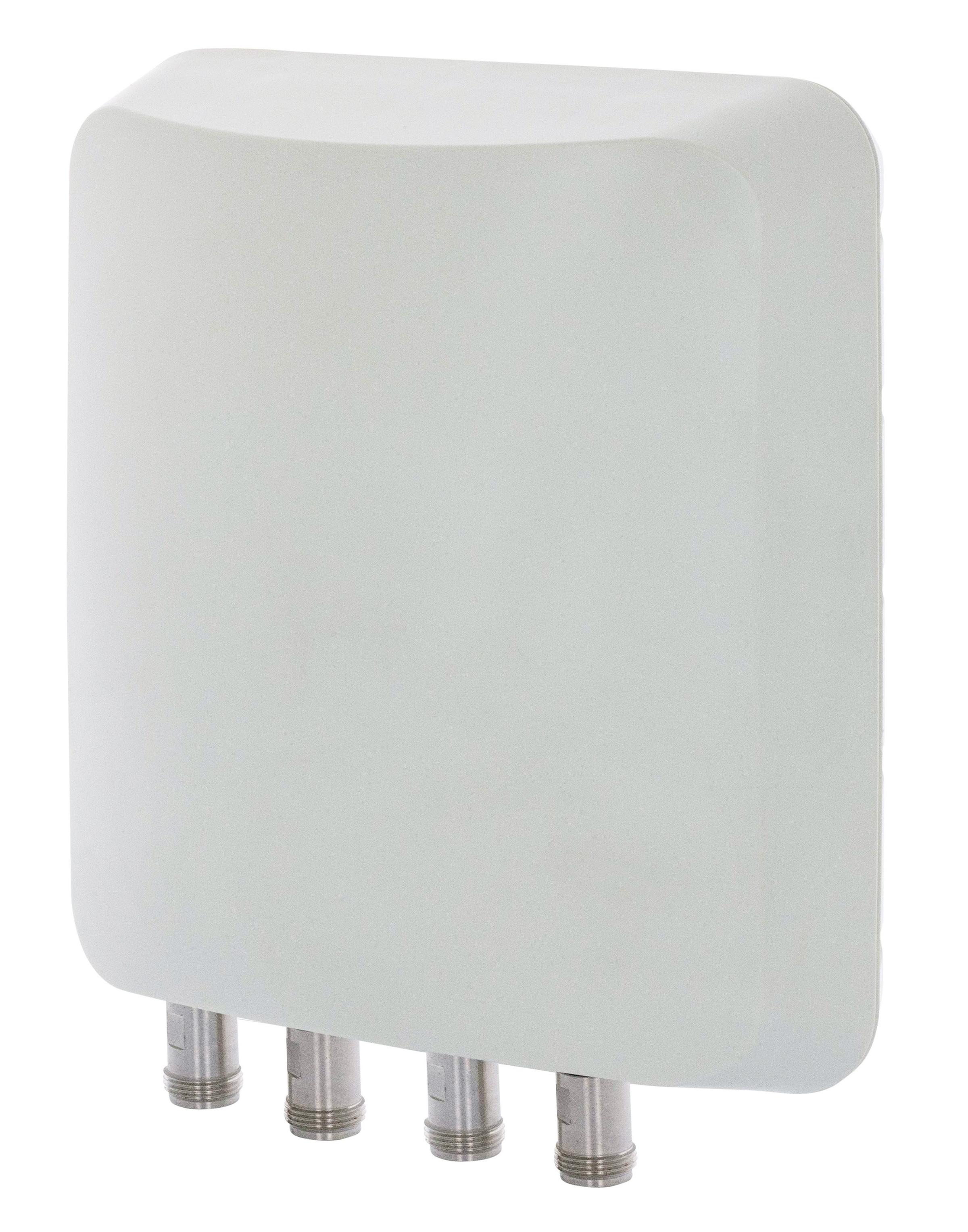

SENCITY® Urban 200 outdoor MIMO antenna is as compact as possible for installation in different types of street furniture such as bus shelters, poles or walls, depending on the location. Available into different models:MIMO 4x4 covers 5G C Band in 70° horizontal half power beamwidthMIMO 2x2 covers 4G and 5G High frequency range in 70° and 110° horizontal half power beamwidth.

• Frequency range: MIMO 4x4: 3300 - 4200 MHz
• Frequency range: MIMO 2x2: 1695 - 2690 and 3300 - 4200 MHz
• Isolation: MIMO 4x4: Isolation 22 dB with 11dBi Gain
• Isolation: MIMO 2x2: Isolation 20 dB with 6÷7.5 dBi Gain
• Dimensions: 165 x 185 x 84 mm (6.5 x 7.3 x 3.3 in)
• PIM - 150 dBc 2 X 20 W
• IP66
• Dual Slant Polarization
