Field mountable, 50 Ohm, 18 GHz, 200°C, ø5.4 mm, FEP jacket

Product number 84048293

Identifier EACON_4C

Variation -

General Information

Key features

Field mountable microwave cable designed for assembly in tight spaces
Excellent performance up to 18 GHz
2 piece solderless connectors for easy assembly and re-assembly in the field
Waterproof IP67 rated

Specifications

Construction

Component	Material	Detail	Diameter	Cable jacket print
Centre conductor	Copper, Silver plated	Wire	1.4 mm
Dielectric	PTFE-LD		4.15 mm
Outer conductor	Copper, Silver plated	Wrapped foil, 100%	4.28 mm
Outer conductor	Copper, Silver plated	Braid	4.9 mm
Jacket	FEP (Fluorinated ethylene propylene)	White	5.7 mm	HUBER+SUHNER EACON 4C 50 OHM Lot-No..

Electrical data

Mechanical data

Environmental data

Material compliance ROHS

Material compliance REACH

Field mountable, 50 Ohm, 18 GHz, 200°C, ø5.4 mm, FEP jacket

Availabilities

This product is available at:

HUBER+SUHNER

Lead time 8 weeks (ex works)

Distributor

FARNELL with lead time

RICHARDSON RFPD 10 Meter

MOUSER 72 Meter

DIGIKEY 90 Meter

MASTER ELECTR. with lead time

Product code	EACON_4C
Cable family	Eacon: Field mountable flexible microwave cables
Available as assembly only	No
Cable group	U94

Impedance	50 Ω
Operating frequency	≤ 18 GHz
Capacitance	87 pF/m
Velocity of signal propagation	77 %
Signal delay	4.3 ns/m
Screening effectiveness	90 dB at frequency 0.1 GHz ... 18GHz
Insulation resistance	100000000 MΩ*m
Operating Voltage (at sea level)	≤ 2.6 kVrms

Weight	approx. 73 g/m
Static bending radius	≥ 15 mm
Dynamic bending radius	≥ 25 mm

Operation temperature	-55 °C ... 200 °C
Flame propagation standard	FAR 25.869
Fire characteristics	contains halogene

Directive	RoHS 2011/65/EU and (EU) 2015/863
Rating	Compliant without exemption

Regulation	REACH 1907/2006 Article 33 SVHC
Rating	Free of SVHC >0,1%

Related content

Products

Field mountable, 50 Ohm, 18 GHz, 200°C, ø5.4 mm, FEP jacket

Specifications

Availabilities

Related products

Suitable connectors

COAXIAL CONNECTOR, BNC, 50 Ohm, Right angle cable plug (male)

84146122

16_BNC-50-4-14/12-_NE

COAXIAL CONNECTOR, BNC, 50 Ohm, Straight cable plug (male)

84139633

11_BNC-50-4-33/12-_NE

COAXIAL CONNECTOR, N, 50 Ohm, Right angle cable plug (male)

84070287

16_N-50-4-13/12-_NE

COAXIAL CONNECTOR, N, 50 Ohm, Straight bulkhead cable jack (female)

85005806

24_N-50-4-13/12-_NE

COAXIAL CONNECTOR, N, 50 Ohm, Straight cable plug (male)

84070286

11_N-50-4-19/12-_NE

COAXIAL CONNECTOR, N, 50 Ohm, Straight panel cable jack (female), flange mount

84070288

25_N-50-4-8/12-_NE

COAXIAL CONNECTOR, QMA, 50 Ohm, Straight cable plug (male)

84121825

11_QMA-W50-4-4/19-_NE

COAXIAL CONNECTOR, SMA, 50 Ohm, Right angle cable plug (male)

84070290

16_SMA-50-4-165/199_NE

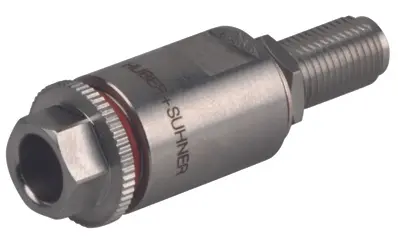

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight bulkhead cable jack (female)

85063909

24_SMA-50-4-43/199_NE

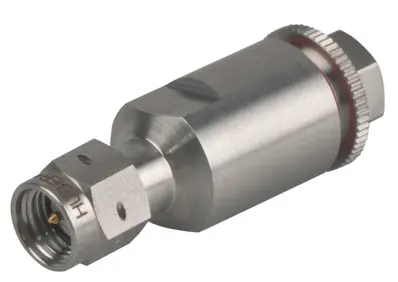

COAXIAL CONNECTOR, SMA, 50 Ohm, Straight cable plug (male)
