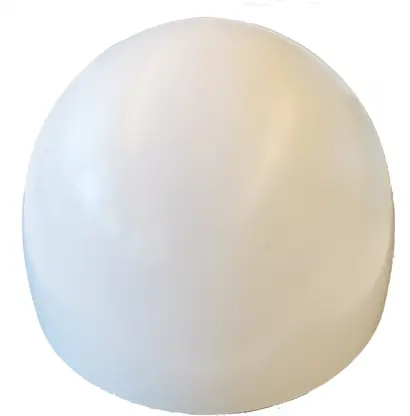

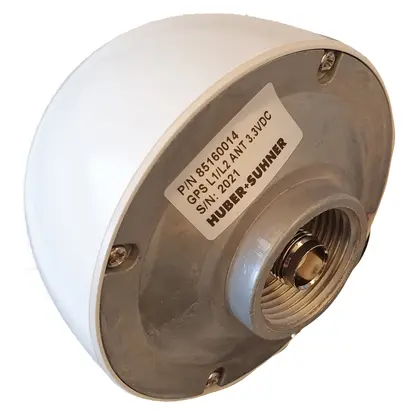

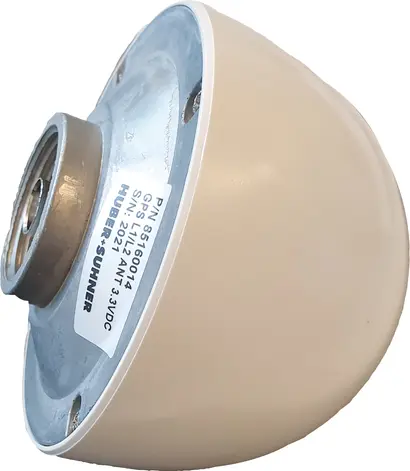

GNSS antenna, coaxial, L1 + L2

Name: GNSS antenna, coaxial, L1 + L2
SKU: 85160014
Availability: InStock

Product number 85160014

Identifier GNSS ANT L1+L2 3.3V

Variation: -

Key features

General data

Electrical data

GNSS Band	L1 L2
Supply voltage range in VDC	2.97 V DC ... 3.33 V DC
Supply voltage typical in VDC	3.3 V DC
Current draw	< 20 mA
Gain range	25 dB ... 31 dB
Gain typical	28 dB
Axial ratio	90°: 4dB maximum 10°: 6dB maximum
Azimuth coverage	0°-90° elevation (hemispherical)
Out of band rejection	fo= 1575.42MHz fo ±20 MHz: 7 dB min fo ±30 MHz: 12 dB min fo ±50 MHz: 20 dB min fo ±100MHz: 30dB min

Mechanical data

Environmental data

RF signal output

Storage temperature	-40 °C ... 90 °C
Operation temperature	-40 °C ... 90 °C
Humidity Soak	60°C @95% relative humidity, 96 hours
Salt mist test duration	96 h
Shock test value	50g vertical, 30g all axis
Vibration test value	10 - 200 Hz log sweep 3g (sweep time 30 min), 3 axis
