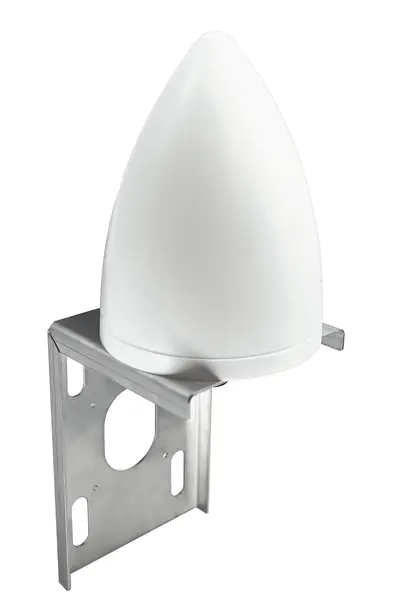

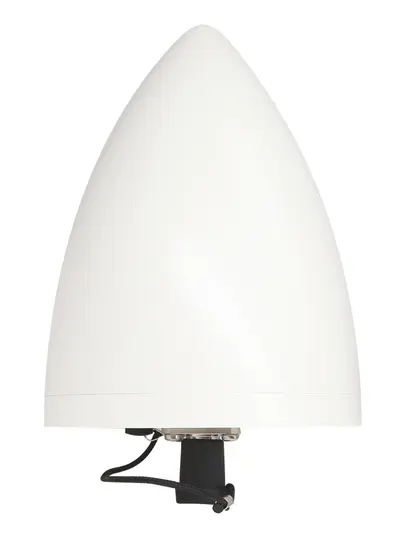

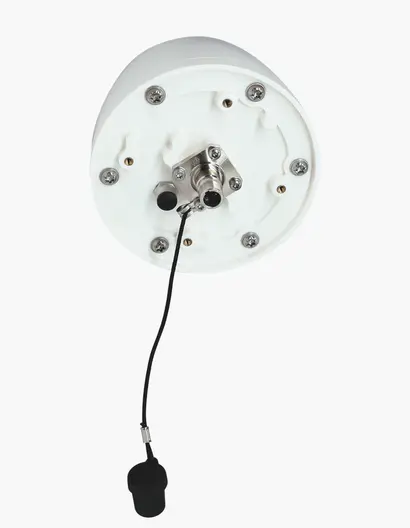

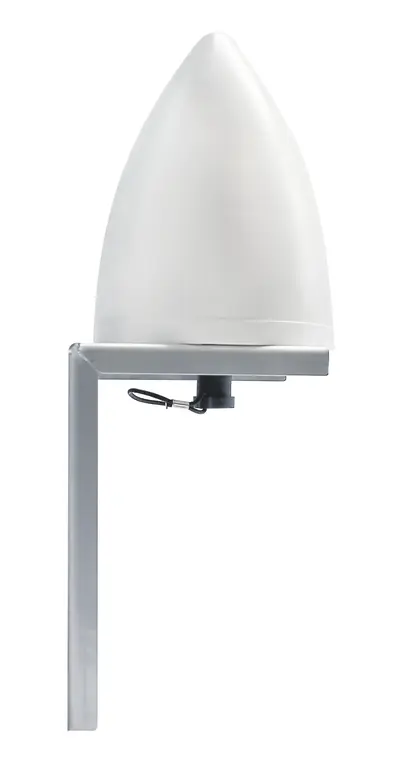

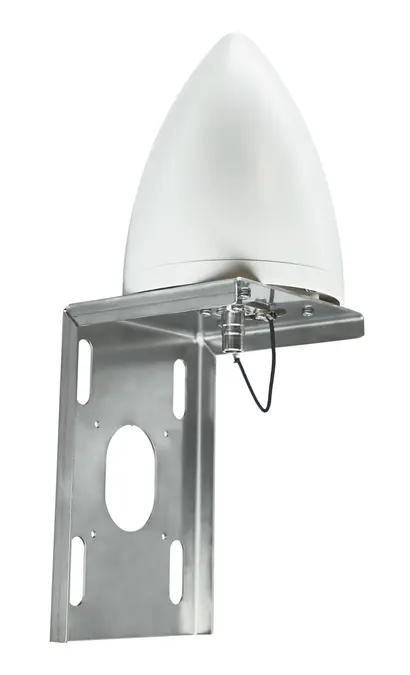

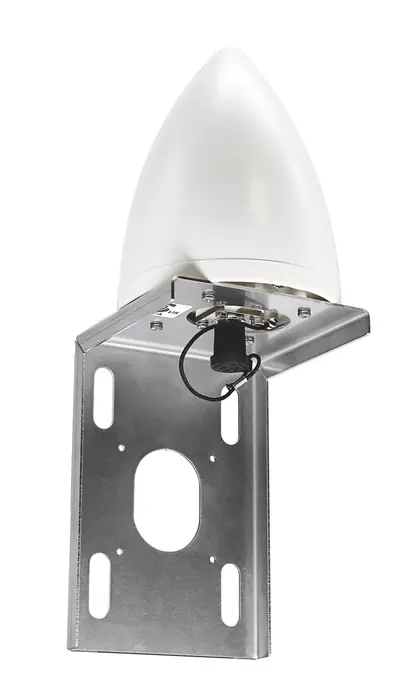

GNSS antenna, power over fiber, L1 + L5

Name: GNSS antenna, power over fiber, L1 + L5
SKU: 85227355
Availability: InStock

Product number 85227355

Identifier O-GNSSPoF0-1-L15

Variation: -

Key features

General data

Electrical data

Mechanical data

Optical data

Environmental data

FO signal output

Service port

GNSS Band	L1 L5
Equivalent active antenna gain	35 dB

Weight	0.7 kg
Dimensions	160 mm x 110 mm (Height x Diameter)

Time delay (link with TX)	32 ns
Laser hazard level	1
Optical power - signal typical	1 mW
Operating wavelength signal	1310 nm
Operating wavelength power	1480 nm

Storage temperature	-40 °C ... 85 °C
Operation temperature	-20 °C ... 65 °C
