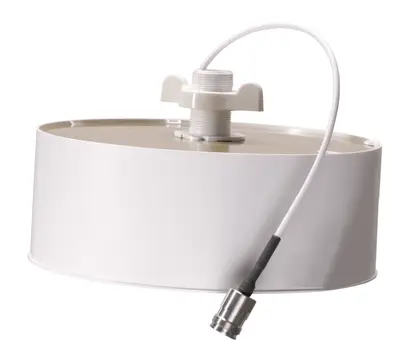

SENCITY® Rondo SISO Antenna
Product number 85074215
Identifier 1399.31.0004
Variation: -
| Product code | |
| Antenna family | |
| Environment (application) | |
General Information
Key features
- Indoor DAS omni-directional antenna for In-Building Coverage 698 MHz up to 3800 MHz
- AMPS, GSM, PCS, CDMA, UMTS, WiFi, WLAN 2.4, LTE
- ETL tested for Plenum space (UL 2043)
- Patented design
How to use it
- Designed for use in 5G C Band, 4G,3G,2G and Wi-Fi systems.
Specifications
| Bands | - 698 MHz ... 790 MHz, VSWR 1.5, Gain 2 dBi
- 790 MHz ... 960 MHz, VSWR 1.5, Gain 3 dBi
- 1710 MHz ... 2170 MHz, VSWR 1.5, Gain 5.5 dBi
- 2170 MHz ... 2700 MHz, VSWR 1.5, Gain 7 dBi
- 3400 MHz ... 3800 MHz, VSWR 1.5, Gain 6 dBi
-
-
-
-
-
-
-
-
-
-
|
| Remarks | - For further information please refer to data sheet.
|
