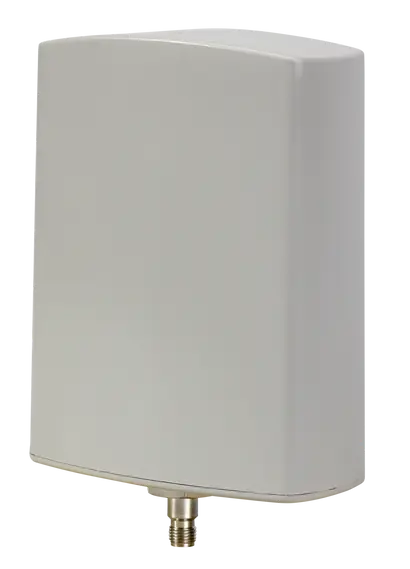

SENCITY® Spot-S Wi-Fi Antenna

Name: SENCITY® Spot-S Wi-Fi Antenna
SKU: 84059621

Product number 84059621

Identifier 1356.19.0022

Variation: -

Key features

Directional high gain antenna for Wi-Fi or Cellular bands between 5150 and 5975 MHz
Gain of 14 dBi with Vertical polarisation
Rugged design, meets EN 50155 railway and EN 60068 industrial standards
Fire retardant acc. to EN 45545-2 and NFPA130
For both indoor and outdoor mounting with IP rating IP66 & IP67
Wall mounting material included

How to use it

As the wireless interface for Wi-Fi 5 GHz directional systems such as Railway Trackside

Electrical data

Mechanical data

Material data

Environmental data

Bands	5150 MHz ... 5975 MHz, VSWR 1.5, Gain 14 dBi
Remarks	For further information please refer to data sheet.

Weight	0.11 kg
Dimensions	101 mm x 81 mm x 36 mm (Heigth x Width x Depth)
Windload	front: 15 N at 160km/h, Wind Speed survival: 220 km/h

Radome material	PC (Polycarbonate)
Radome colour	RAL 7044 (grey)

Operation temperature	-40 °C ... 85 °C
Storage temperature	-40 °C ... 85 °C
Transport temperature	-40 °C ... 85 °C
Environment (application)	Outdoor
Ingress protection (IP Rating)	IP 66 / IP 67
Flammability rating	EN 45545-2
