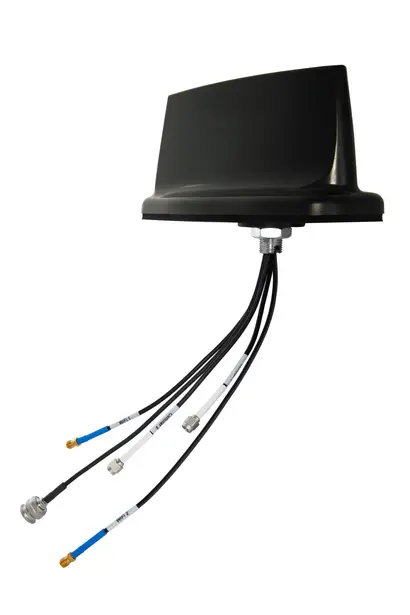

SENCITY® Tram MIMO Antenna

SENCITY® Tram MIMO Antenna

Product number 85163180

Identifier 1399.99.0206

Variation: -

General Information

Key features

Supports 2G/3G/4G/5G cellular, Wifi 2.4/5 GHz, Wifi 6E and GNSS (Beidou, Galileo, GPS, Glonass)
Rugged vehicle rooftop multi-band antenna for Light Rail
Meets EN50155 and fire retardant according to EN 45545-2.
Works without metal ground plane
5 separate ports for 2x2 cellular MIMO and 2x2 Wifi MIMO plus GNSS.
Meets EN50155 railway standard
Fire retardant acc. to EN45545-2 and NFPA-130
Single hole mounting, easy cabling feed-through

How to use it

As the wireless interface for multi-band communication on light rail trains and trams

Specifications

Electrical data

Bands	694 MHz ... 790 MHz, VSWR 1.8, Gain 4 dBi 790 MHz ... 960 MHz, VSWR 1.7, Gain 4 dBi 1710 MHz ... 2170 MHz, VSWR 1.7, Gain 5 dBi 2400 MHz ... 2690 MHz, VSWR 2, Gain 6 dBi 2400 MHz ... 2690 MHz, VSWR 2, Gain 5.5 dBi 3400 MHz ... 3800 MHz, VSWR 1.7, Gain 6 dBi 4900 MHz ... 7125 MHz, VSWR 1.8, Gain 7 dBi GNSS (black): 1559 MHz ... 1610 MHz, VSWR 1.8
Remarks	For further information please refer to data sheet.

Electrical data LNA

Mechanical data

Material data

Environmental data
