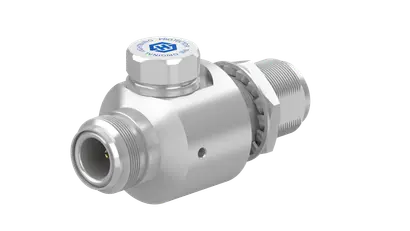

COAXIAL SURGE PROTECTOR DEVICE, GDT technology up to 1.0 GHz

Product number 22641598

Identifier 3401.18.A

Variation -

General Information

Key features

This product is available at:

HUBER+SUHNER

Lead time 10 weeks (ex works)

Distributor

FARNELL with lead time

MOUSER with lead time

RS AMERICAS with lead time

DIGIKEY with lead time

Main path connectors	Port 1: unprotected, N jack (female) Port 2: protected, N jack (female)
Mounting and grounding	MH12 (bulkhead mounting)
Side of bulkhead	protected side
EMP can be install reversed	YES

Housing material / plating	Brass / SUCOPLATE (R) Plating
Center contact, material / plating	Port 1: Copper Beryllium Alloy / Gold Plating (without Nickel underplating) Port 2: Copper Beryllium Alloy / Gold Plating (without Nickel underplating)

Impedance	75 Ω
Frequency frame	0 MHz to 500 MHz
Return loss typical	≥ 20.8 dB
Insertion loss typical	≤ 0.1 dB
CW power frame	≤ 100 W
Residual pulse energy (typ.)	350 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)
Residual pulse voltage (typ.)	650 V (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)
Surge current handling capability	30 kA single, 20 kA multiple (test pulse 8/20 µs)

Gas tube	Yes DC, GDT not included
Electrical remarks	Data refer to GDT 9071.99.0547, 230 V

Weight	92 g
Mating cycles	500

Product code	3401.18.A
Product description	GDT technology up to 1.0 GHz

Operation temperature	-40 °C ... 85 °C
Storage temperature	-40 °C ... 85 °C
Ingress protection (IP Rating)	IP65
Thermal shock according	MIL-STD-202, Method 107, Cond. B
Vibration according	MIL-STD-202, Method 204, Cond. D
Moisture resistance according	MIL-STD-202, Method 106
