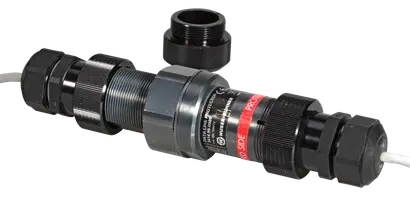

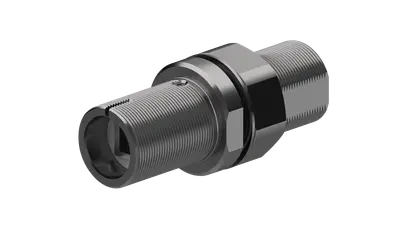

Data Line Protector for Ethernet Cat 5 in channel class D

Product number 84015998

Identifier 3414.99.0009

Variation -

General Information

Key features

This product is available at:

HUBER+SUHNER

Lead time 10 weeks (ex works)

Distributor

FARNELL with lead time

MOUSER with lead time

RS AMERICAS with lead time

DIGIKEY with lead time

Product code	3414.99.0009
Product description	Data Line Protector Symmetric Pair

Main path connectors	Port 1: unprotected, RJ45 jack 8-Pin jack (female) Port 2: protected, RJ45 jack 8-Pin jack (female)
Side of bulkhead	protected side

Impedance	100 Ω
Frequency frame	0 MHz to 100 MHz
Insertion loss typical	≤ 0.5 dB
Nominal voltage UN	60 V
Operating voltage UC	max. 60 V DC, pair to pair
Operating voltage UC	max. 42.4 V AC, pair to pair
Operating voltage UC	6 V , line to line
Nominal current IL	1.5 A, per pair
Nominal discharge current In	100 A, (test pulse 8/20 µs), line to line
Nominal discharge current In	2.5 kA, (test pulse 8/20 µs), line to ground
Total nominal discharge current In	10 kA, (test pulse 8/20 µs), all lines to Ground
Clamping voltage	15 V, line to line
Clamping voltage	90 V, line to ground
Voltage protection level UP	typ. 20 V, (test pulse 4 kV 1.2/50; 2 kA 8/20 µs), line to line
Voltage protection level UP	typ. 700 V, (test pulse 4 kV 1.2/50; 2 kA 8/20 µs), line to ground

Operation temperature	-40 °C ... 85 °C
Storage temperature	-40 °C ... 85 °C
Ingress protection (IP Rating)	IP68
Thermal shock according	MIL-STD-202, Method 107, Cond. B
Vibration according	MIL-STD-202, Method 204, Cond. D
Moisture resistance according	MIL-STD-202, Method 106
