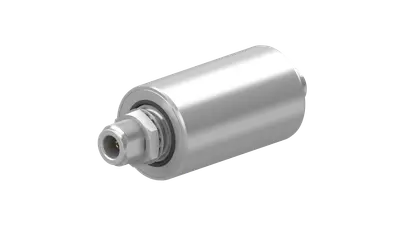

High Power RF Limiter for HF, Limiting Threshold 41 dBm

High Power RF Limiter for HF, Limiting Threshold 41 dBm

High Power RF Limiter for HF, Limiting Threshold 41 dBm

Product number 84111408

Identifier 9078.17.0013

Variation: -

General Information

Key features

2-stage high power RF Limiter up to 67 dBm
Threshold level 41 dBm
Linear broad-band operation
Minimum residual pulse energy

Specifications

Product configuration

Interface and material data

Electrical data

Impedance	50 Ω
Frequency frame	100 kHz to 32 MHz
Return loss typical	≥ 18 dB
Insertion loss typical	≤ 0.5 dB
CW power frame	≤ 25 W
Peak power frame	≤ 5 kW
Limiting threshold	41 dBm
IM limits (linear operation)	IP3 > 50 dBm
Residual pulse energy (typ.)	30 µJ NEMP (test pulse 6 kV 5/200 ns) 300 µJ LEMP (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs)
Surge current handling capability	10 kA single, 5 kA multiple (test pulse 8/20 µs)
Response time	< 100 ns

Electrical remarks

Mechanical data

Environmental data
