HUBER+SUHNER strengthens coax-to-PCB connectivity with new precision compression mount PCB connectors

Earlier this month, HUBER+SUHNER was proud to launch an all-new portfolio of coax-to-PCB compression mount PCB connectors. These connectors will play a critical role in several types of applications, from test and characterization boards, reference boards, high-speed digital evaluation and also for in-system or internal connectivity.

It’s worth taking some time in understanding a little bit more about them and what makes them tick a lot of boxes for PCB designers, lab managers and SI engineers.

Precision compression mount PCB connectors can be put to use in the design of semiconductors and Test and Measurement equipment manufacturing.

Designers, managers, lab technicians and engineers can use them to very promptly mount a test interface onto the Device Under Test (DUT) PCB. This allows for immediate measurements without delays from any operational processing. With only a slight and negligible compromise in electrical performance, the key benefit of using compression mount PCB connectors is the elimination of uncontrollable solder joints.

These types of connectors are increasingly being adopted into systems that advocate the theory that solder joints have an inherent variability and should be eliminated in favour of more controlled and reliable connections.

Fast and easy installation

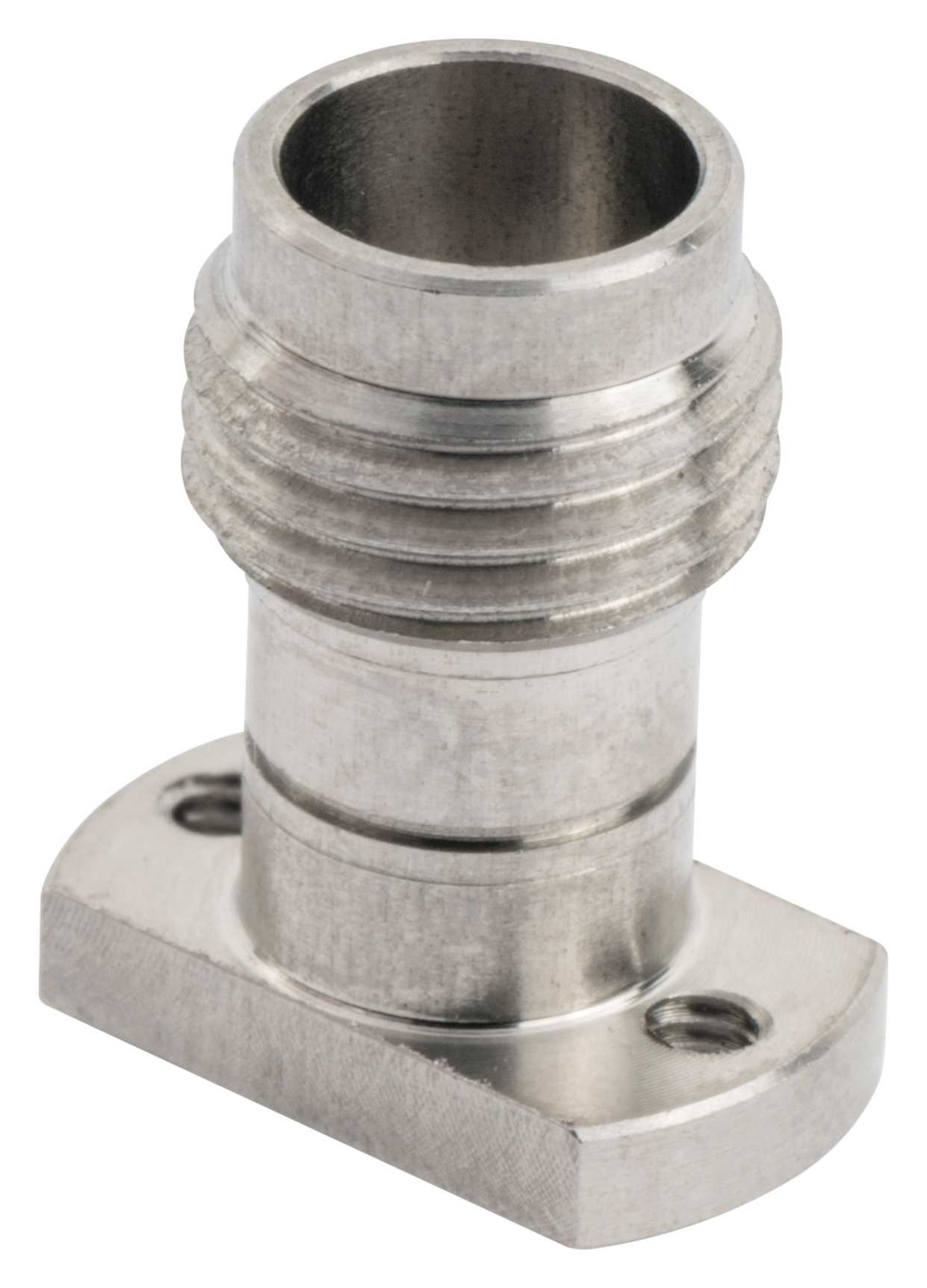

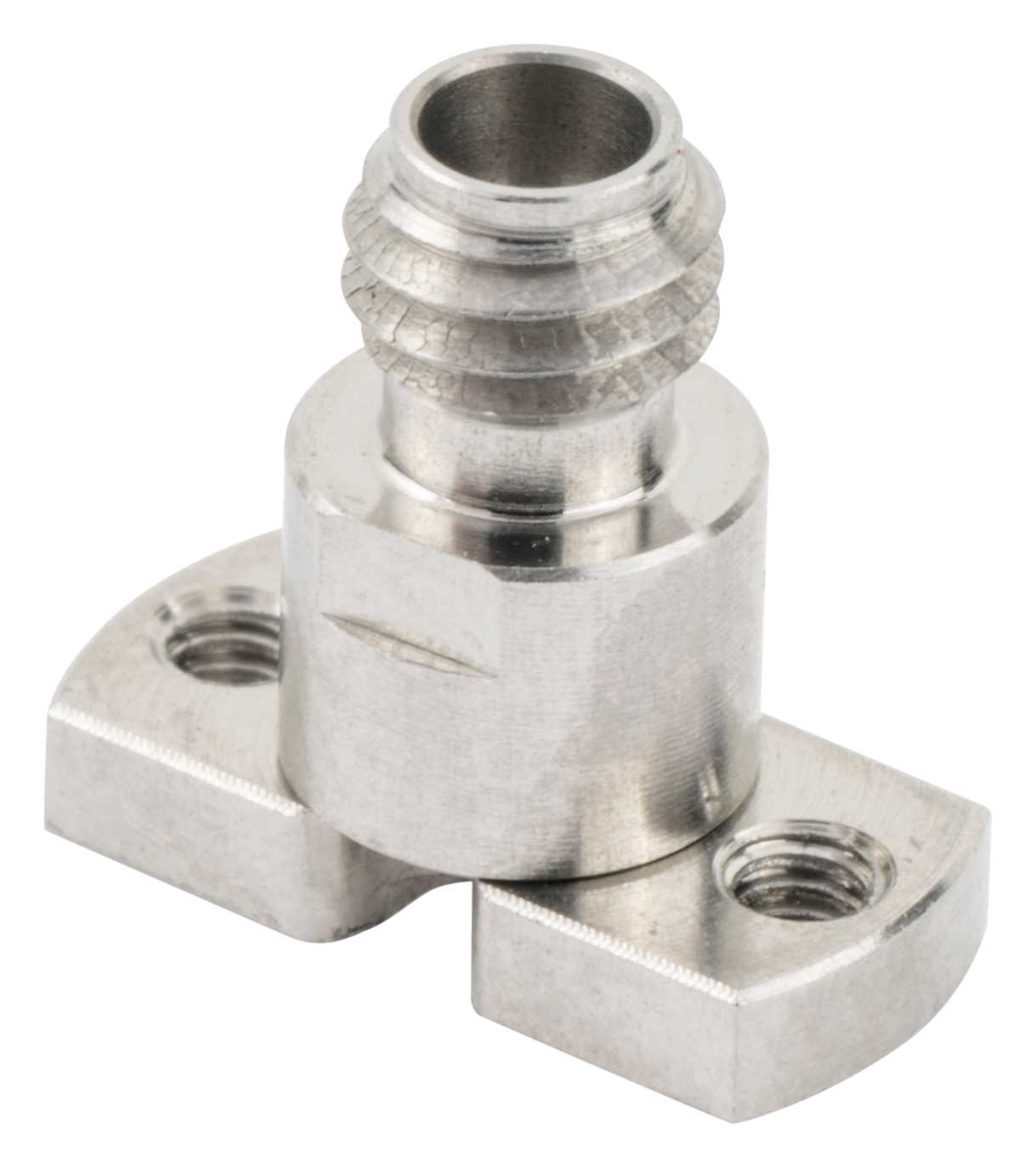

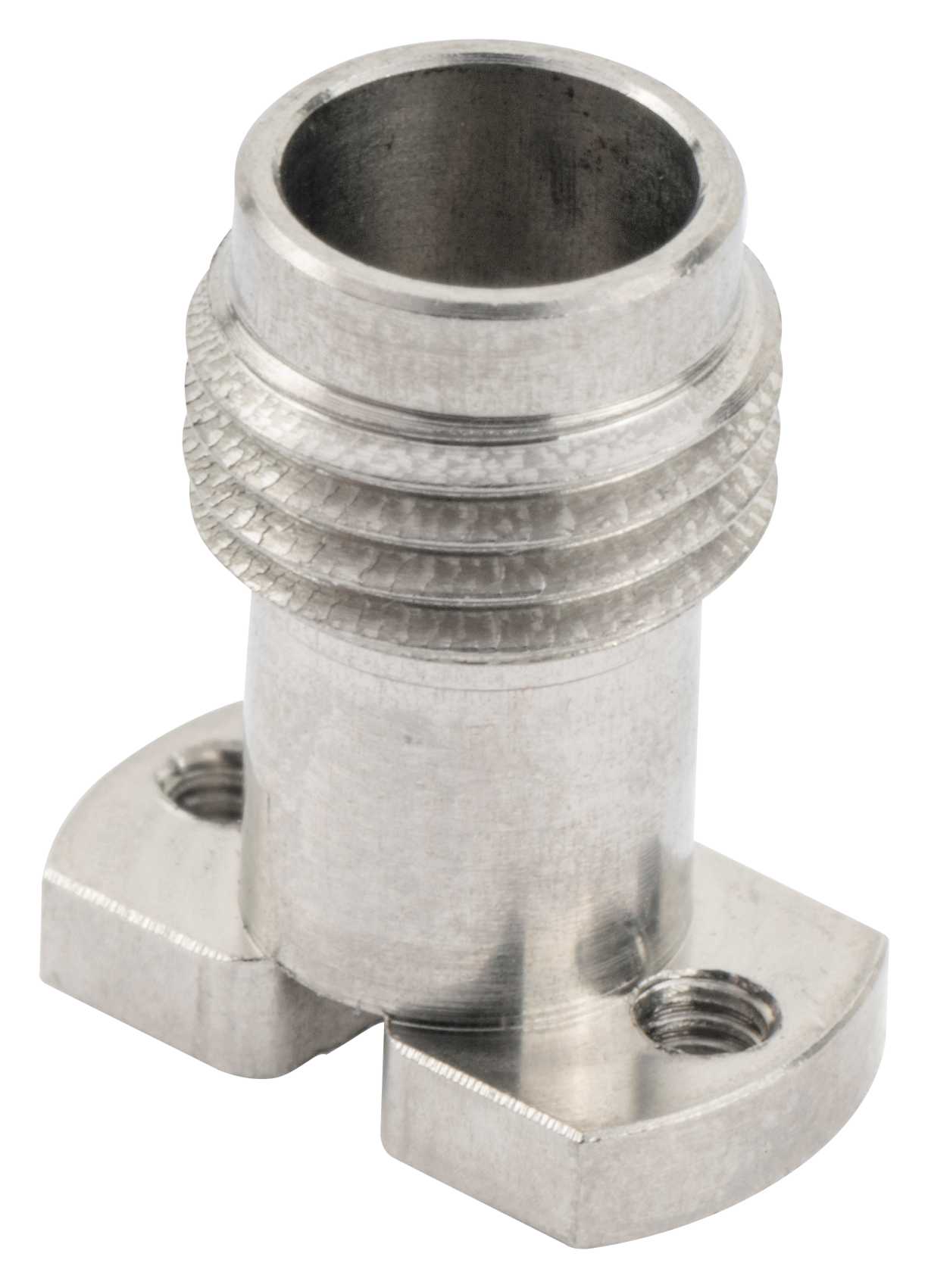

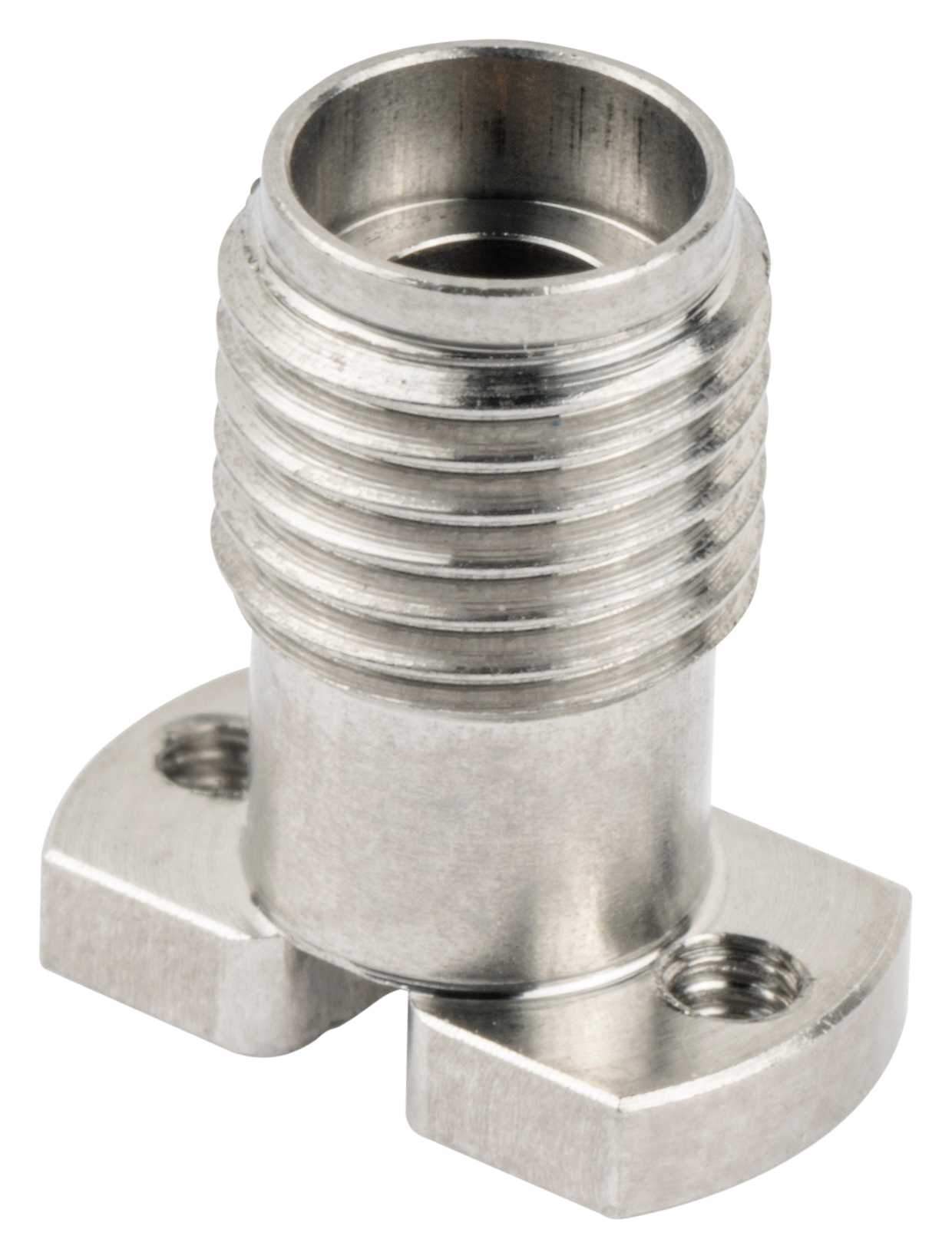

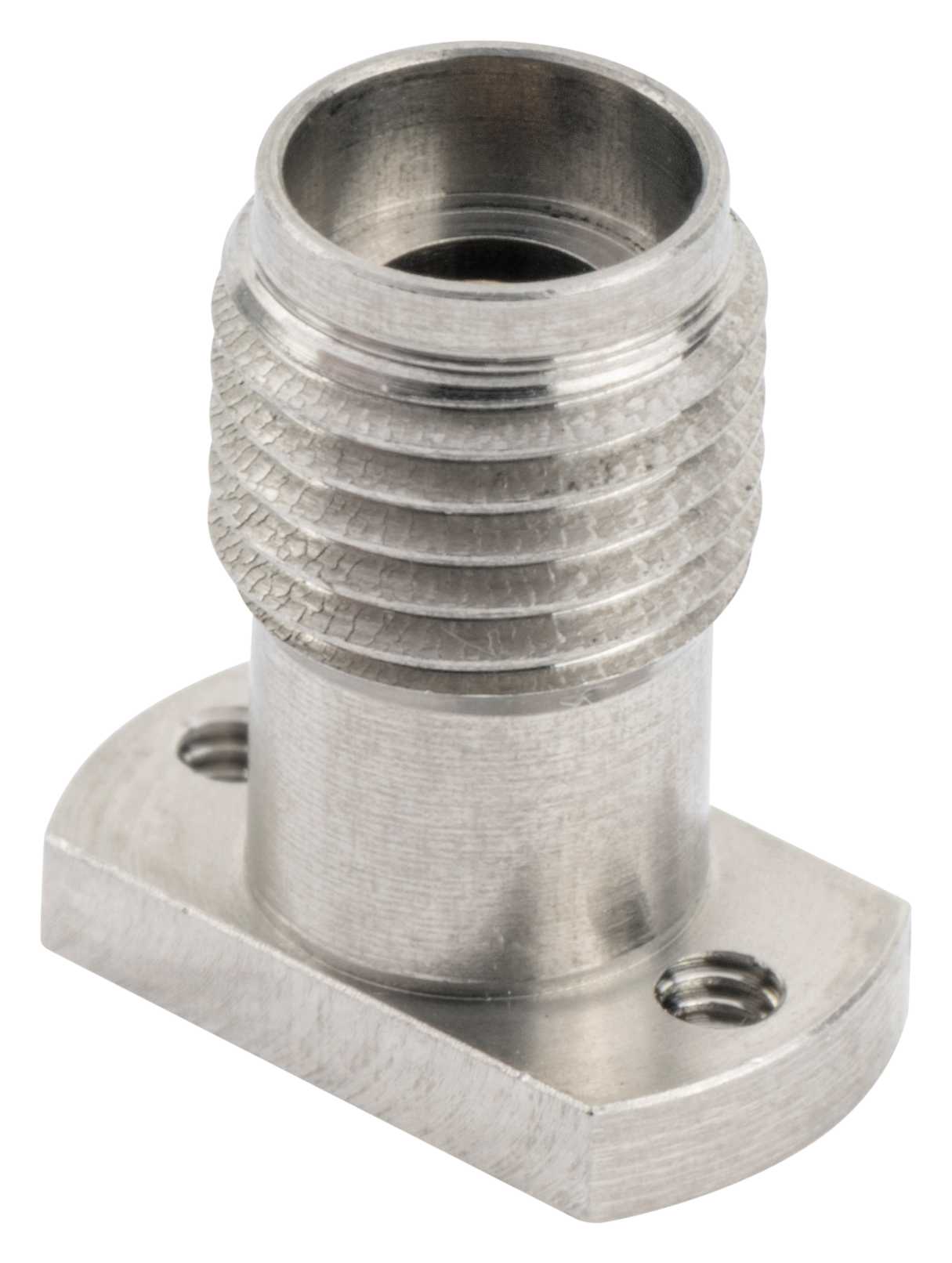

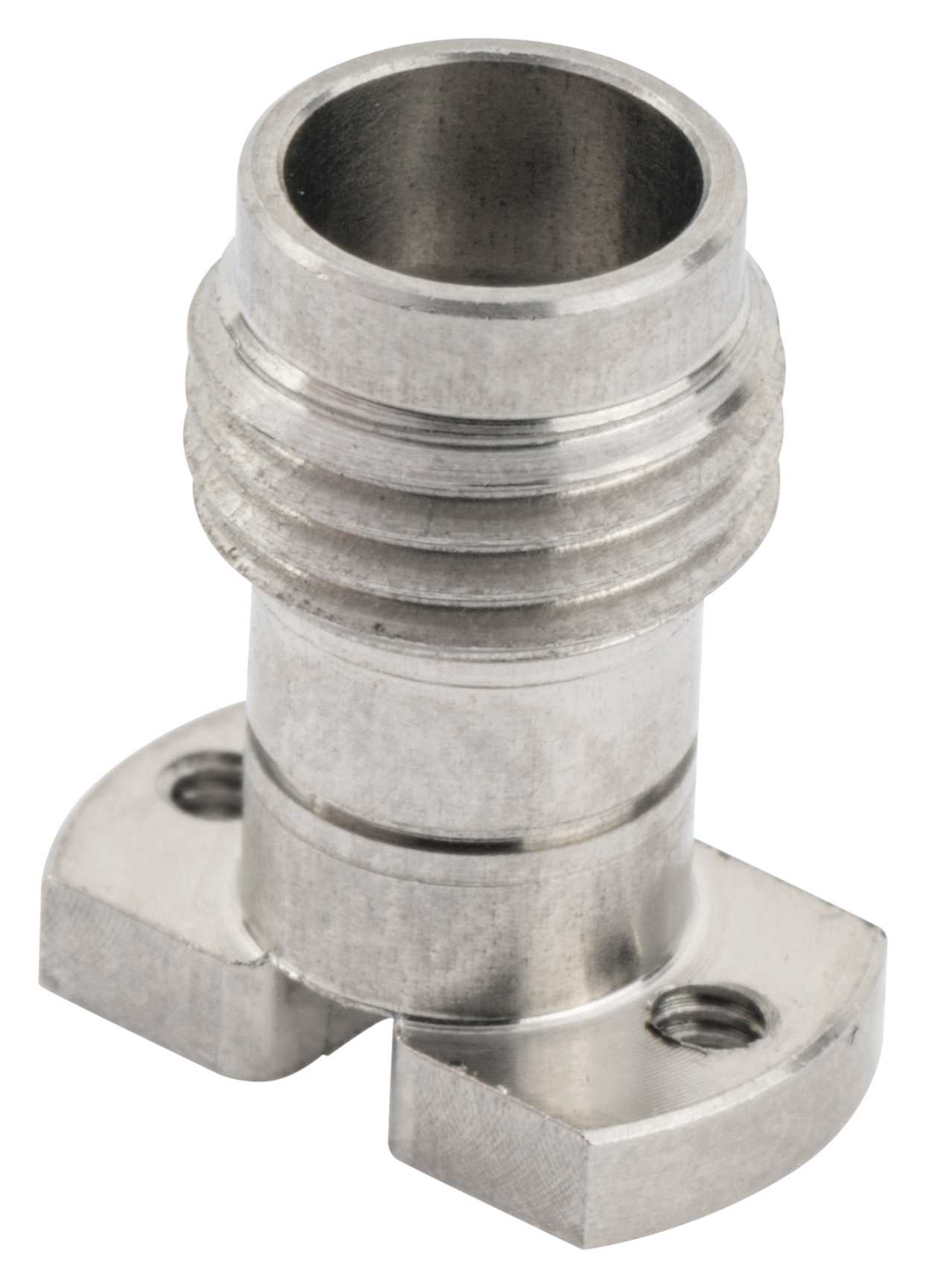

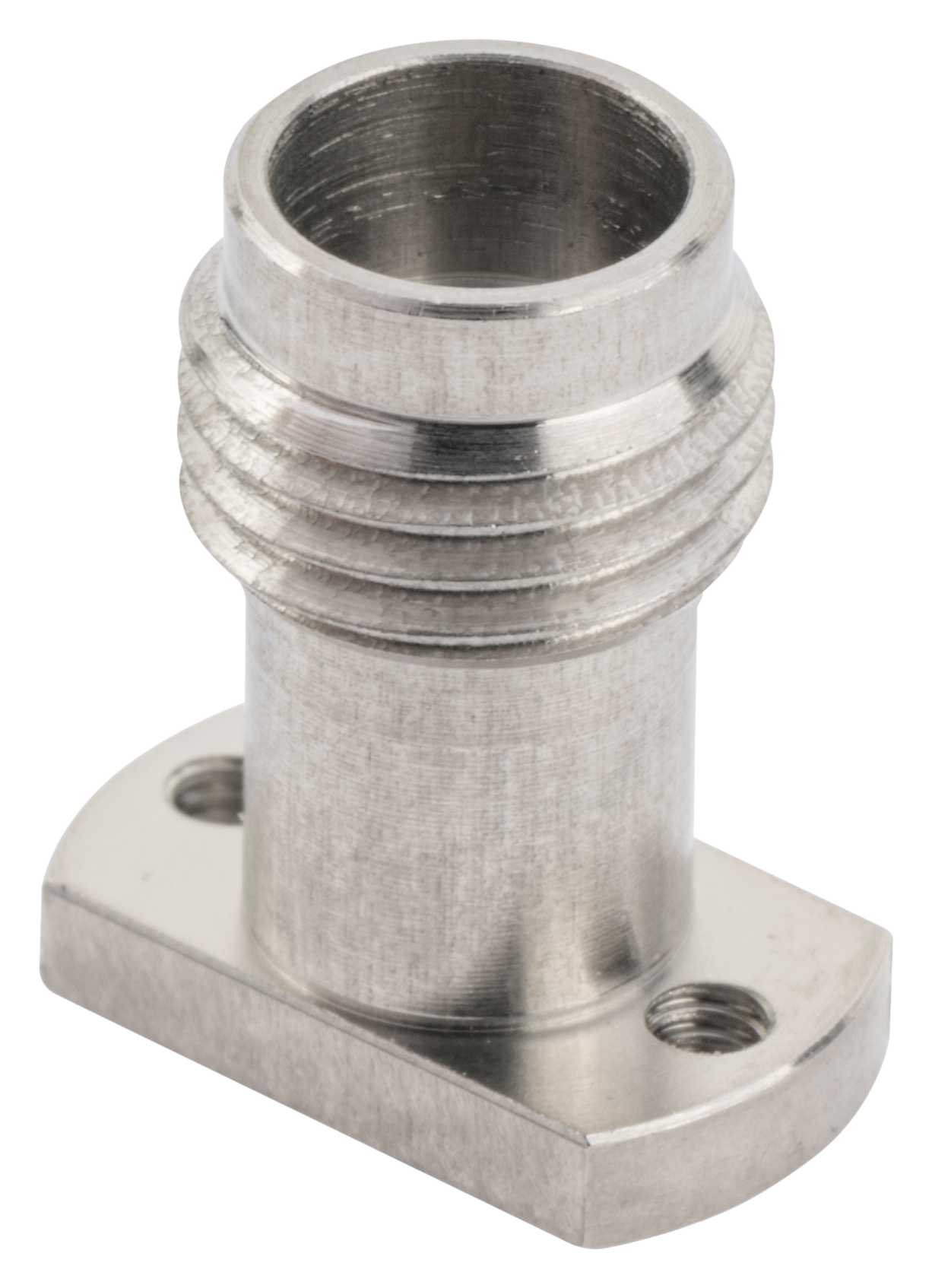

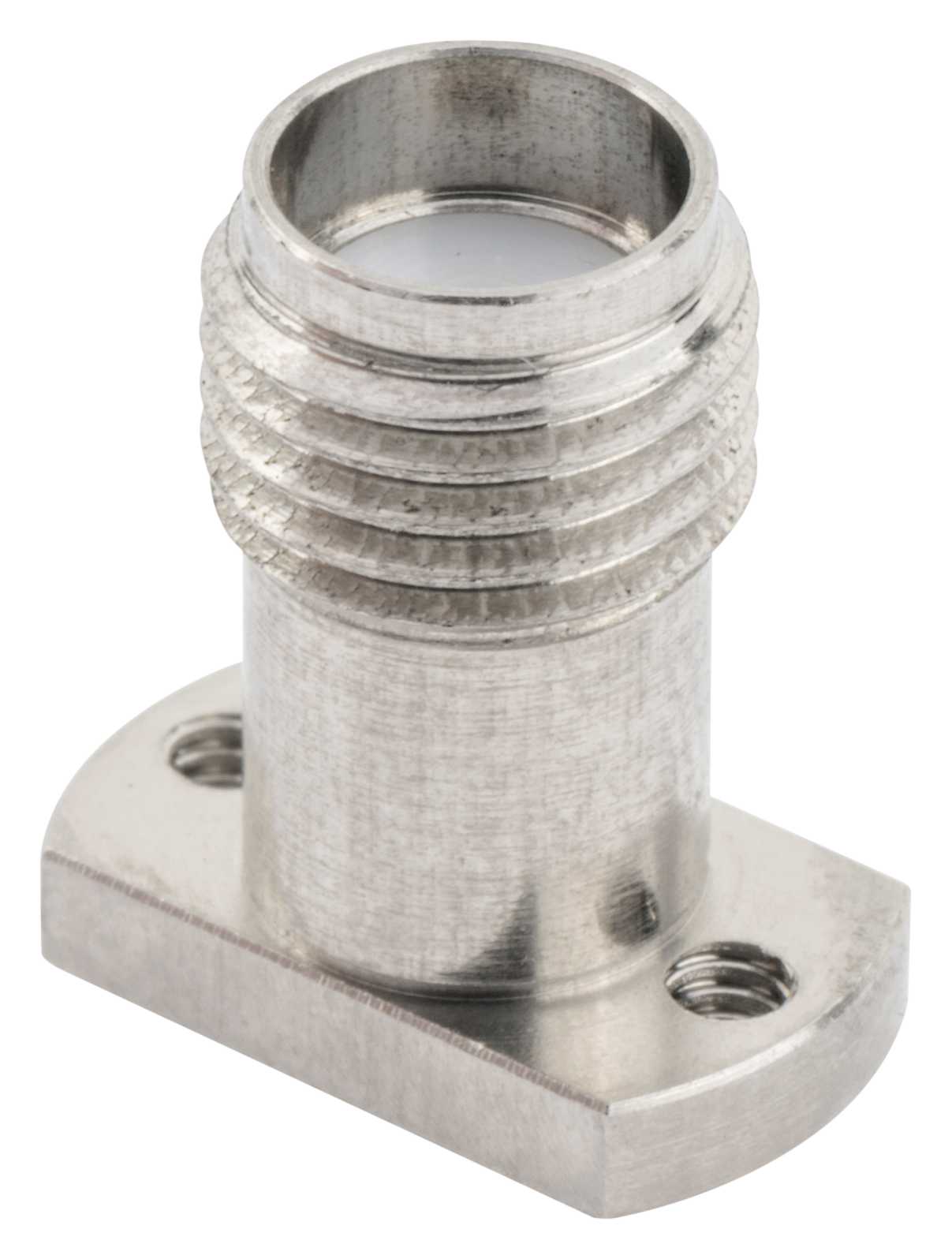

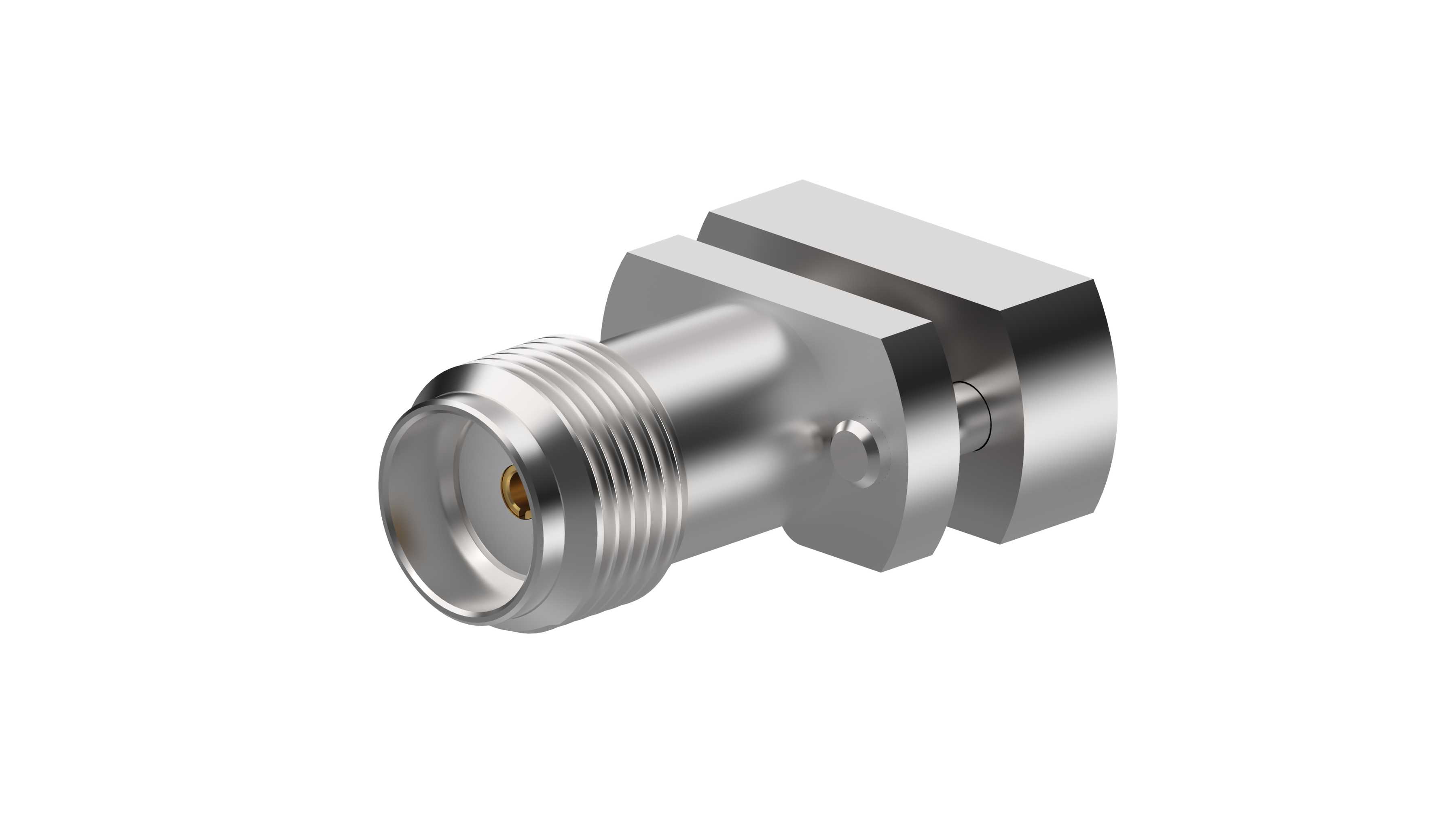

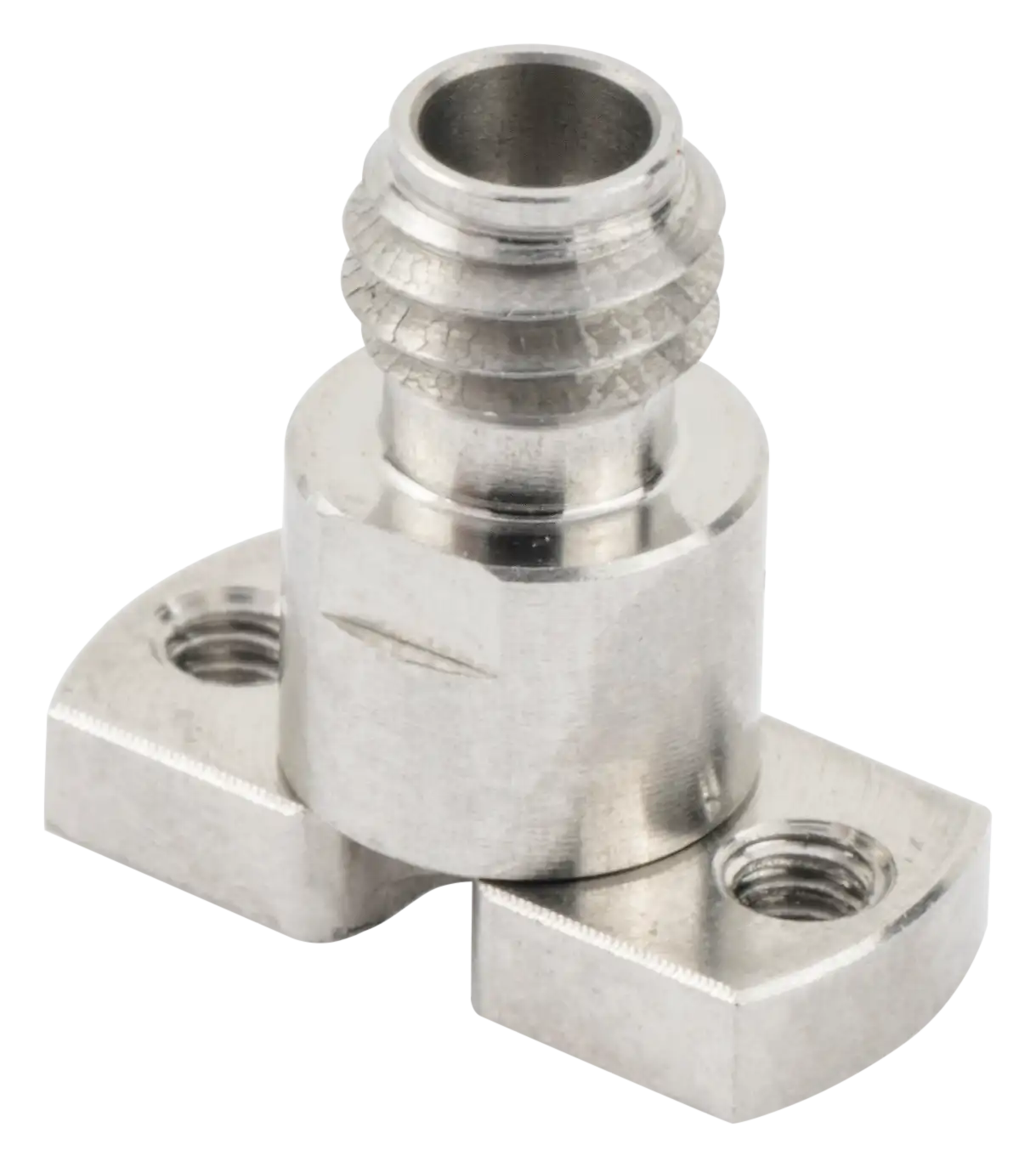

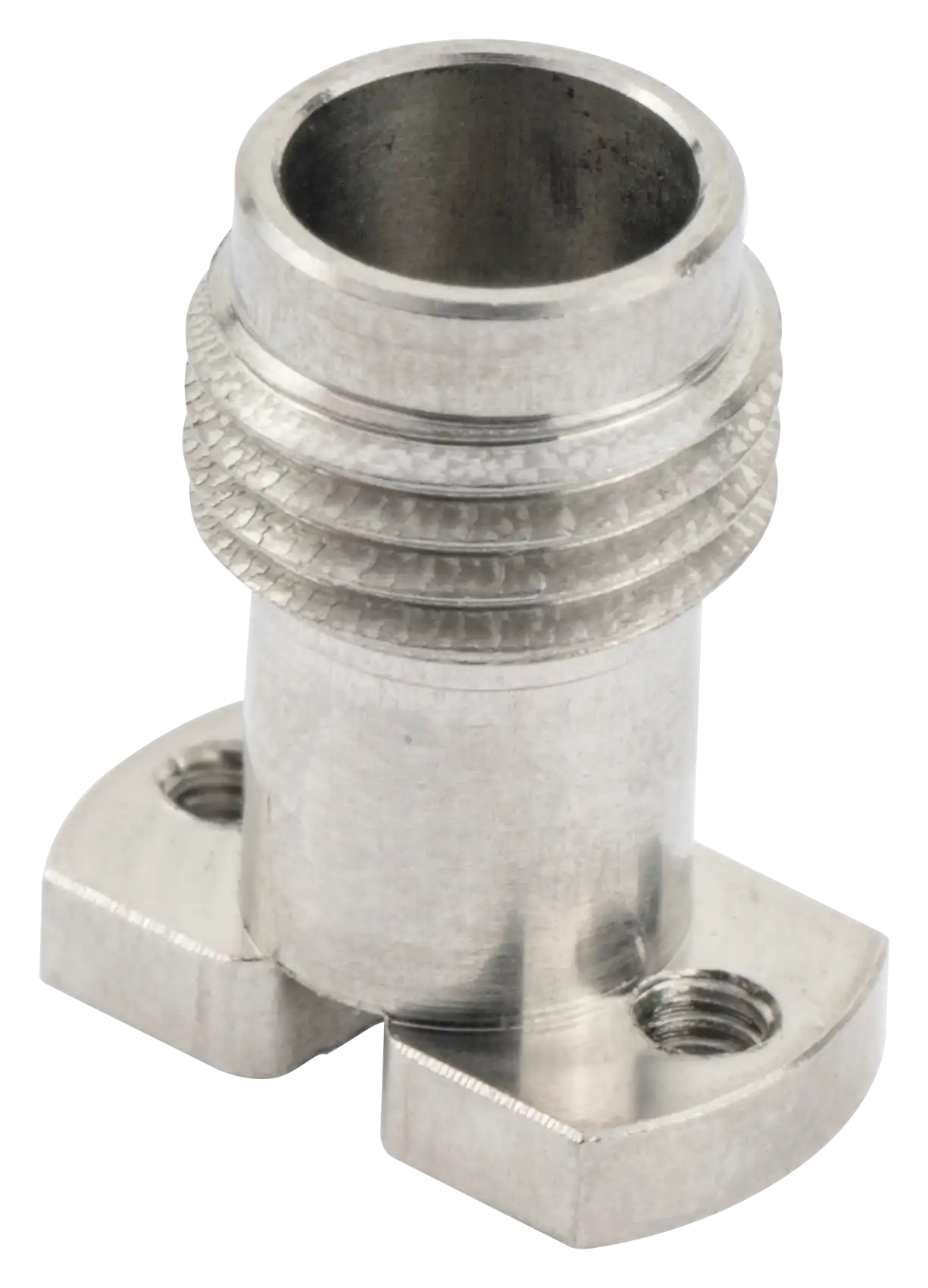

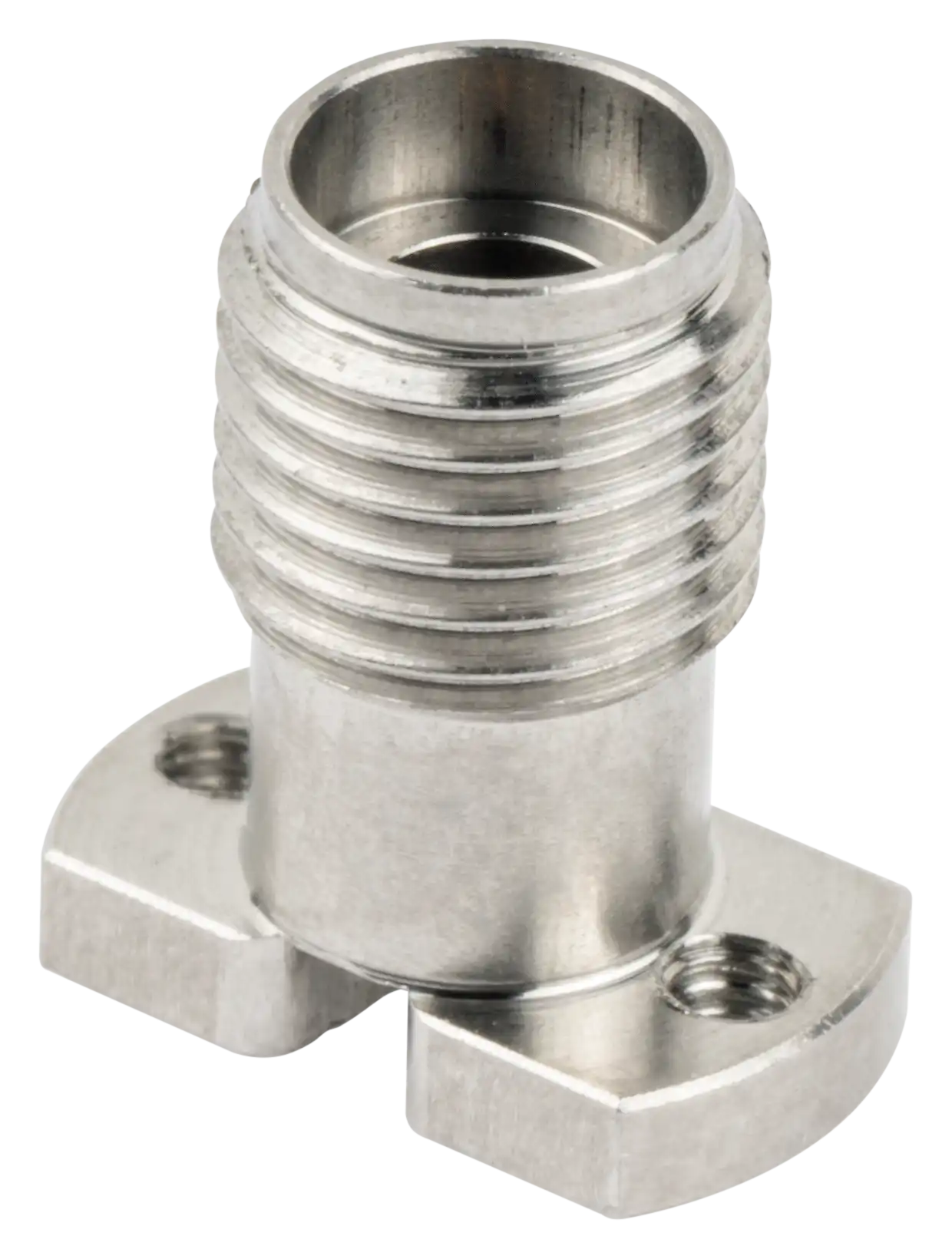

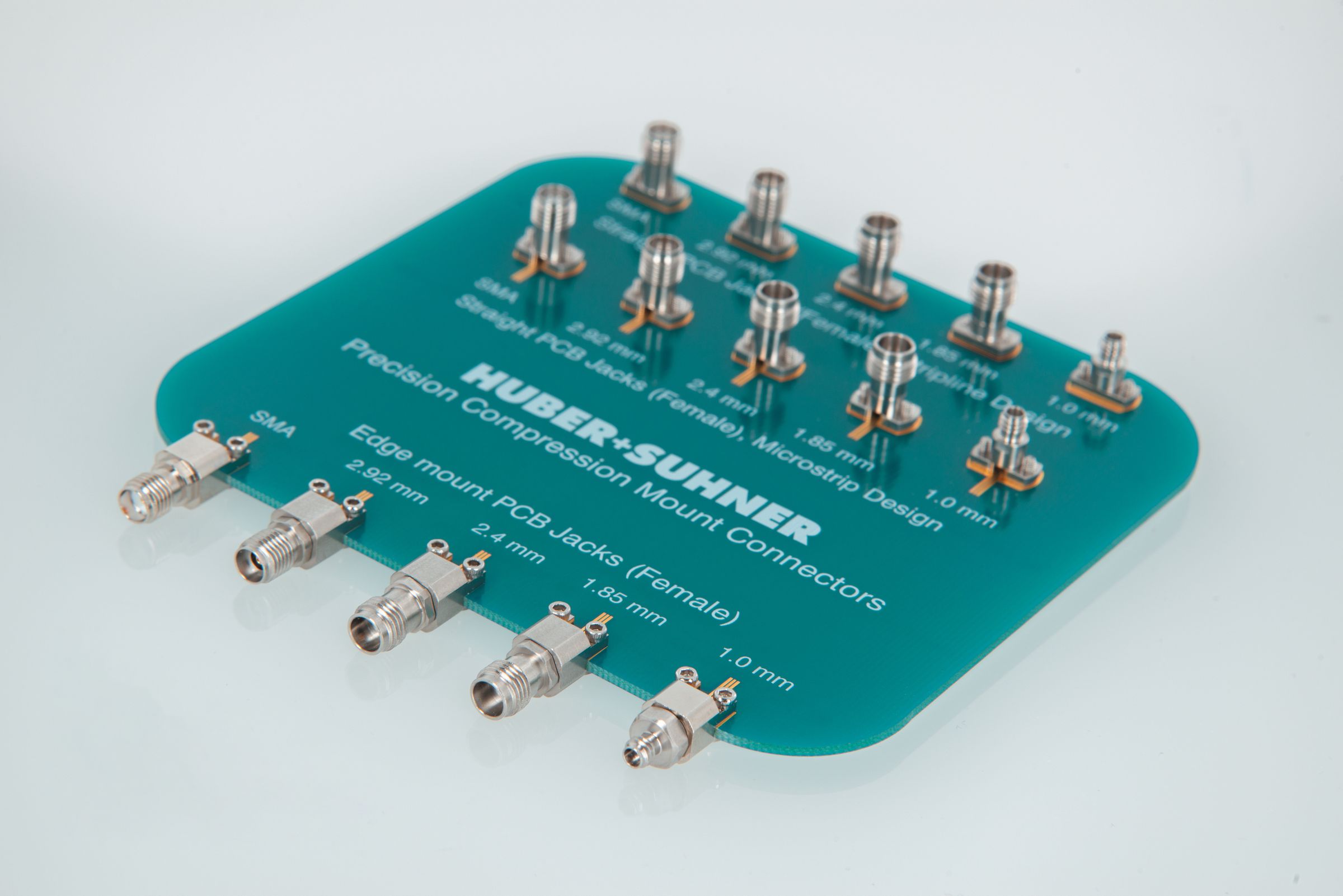

Our straight and edge-mount connector design allows for ease in installation in the most appropriate position

Precision testing up to 110 GHz

Thanks to the availability of the most common mm-standard interfaces widely useful in various fields of application of up to 110 GHz

Reusable design

The connectors can be reused across multiple programs, thereby significantly reducing the overall testing costs

Small form factor

Connectors can be positioned very close to each other, and this further helps to save expensive board material

Over the years, HUBER+SUHNER has established a formidable reputation in the global Test and Measurement market with a comprehensive portfolio offering of our proprietary interfaces (such as MMPX, MXP, MXPM and more). With mm-standard compression mount PCB connectors in the mix as well as expert design support, we are well and truly leaders in coax-to-PCB connectivity offering a one-stop solution for dependable connections and frequencies up to 110 GHz.

Another key to our success has been in providing our customers with professional layout simulation services and design-in support.

If you’d like to know more about our solderless solutions and examine patterns/interfaces, do get in touch with us.
